ALLIED TELESIS 1000T to 1000X/ST Desktop
1000T to 1000X/ST Desktop MC U.S. Power/ TAA
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 4282884
- MPN: AT-DMC1000/ST-90
Allied Telesis AT-DMC1000/ST-90 network media converter 1000 Mbit/s…
Allied Telesis AT-DMC1000/ST-90, 1000 Mbit/s, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s
Click or hover over image to enlarge
Output voltage
5 V
Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Data transfer rate
1000 Mbit/s
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS 1000T to 1000X/ST Desktop

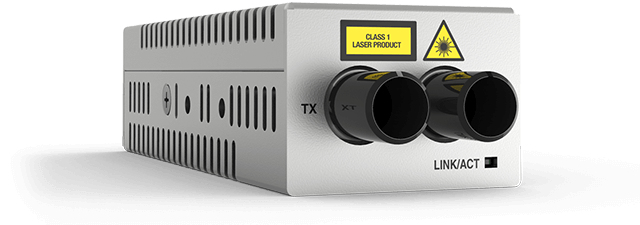

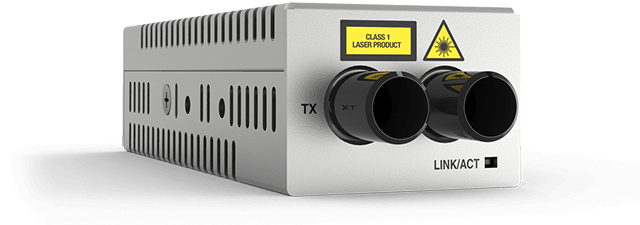

This desktop media converter features 1000T to 1000SX conversion with ST multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Key features
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 1000Base-T
- Converter output interface: 1000Base-SX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Data transfer rate: 1000 Mbit/s
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (1 Gbps): 1488000 pps
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Rate limiting: Yes
- Duplex system: Full, Half
- Link Loss Carry Forward (LLCF) supported: Yes
- Link Loss Return (LLR) supported: Yes
- Cable types supported: Fiber
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Fiber mode structure: Multi-mode
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- Tx power (min): -9.5 dBmW
- Tx power (max): -4 dBmW
- Rx power (min): -17 dBmW
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
+ 17 more — see the Specifications tab.
