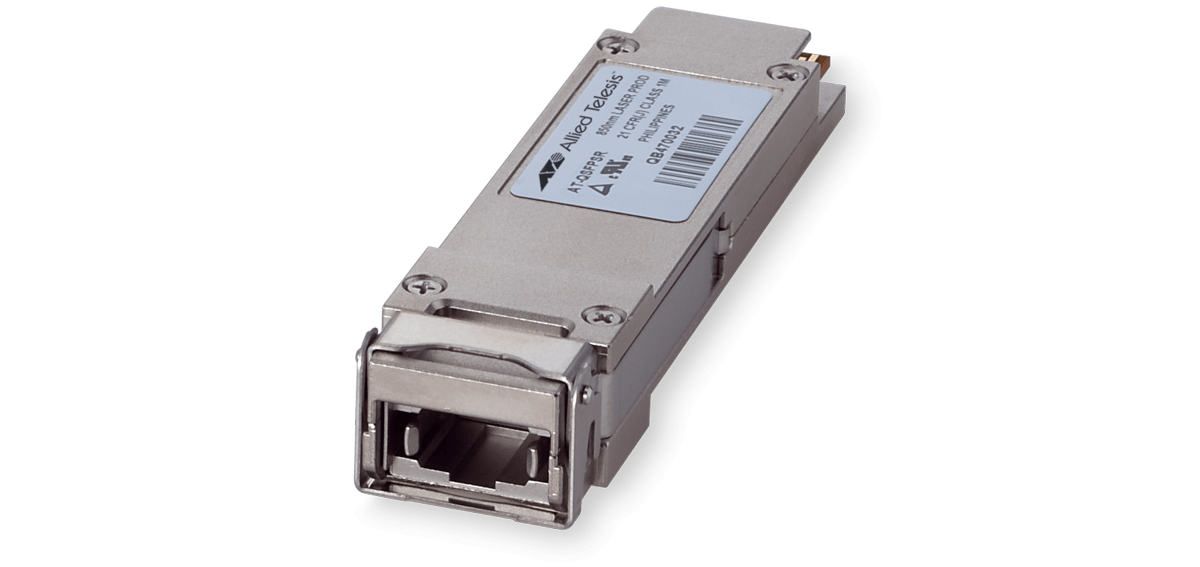

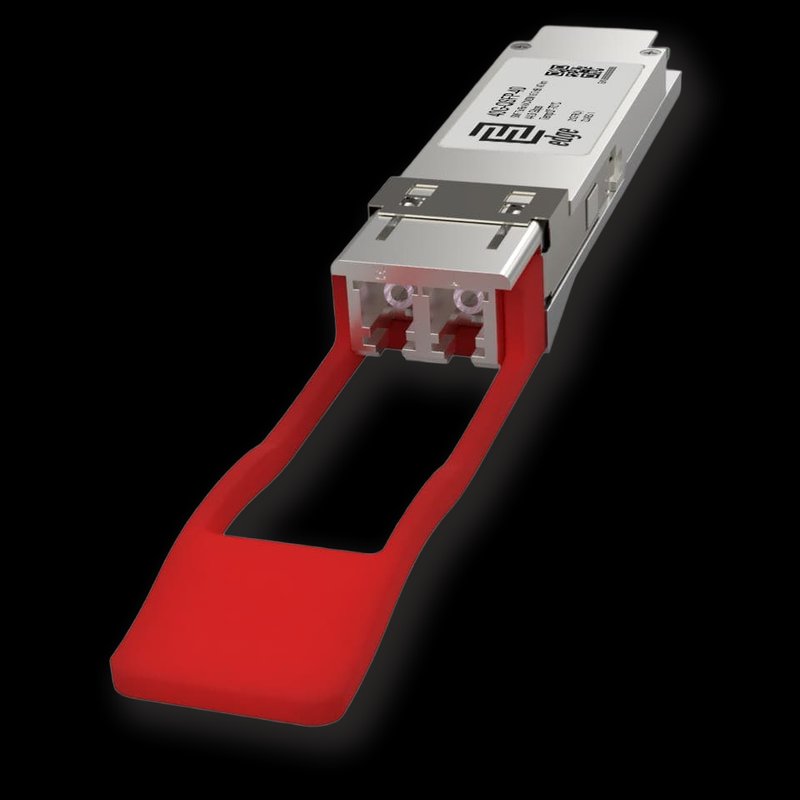

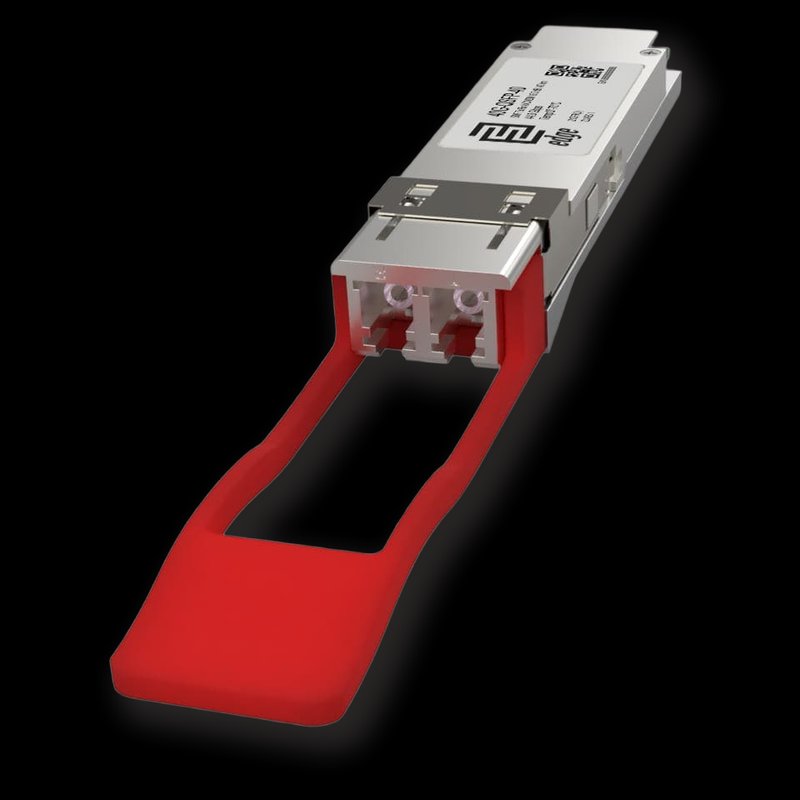

ALLIED TELESIS 40G QSFP+ ER4 LC (40KM) TAA
40G QSFP+ ER4 LC (40KM) TAA
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 4509458
- MPN: AT-QSFPER4
Allied Telesis QSFPER4 network transceiver module Fiber optic 40000…
Allied Telesis QSFPER4, Fiber optic, 40000 Mbit/s, QSFP, LC, ER4, 40000 m
Click or hover over image to enlarge
Power consumption (typical)
3.5 W
Product colour
Silver
Housing material
Metal
Hot-swap
Yes
SFP transceiver type
Fiber optic
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP
Single-mode fiber (SMF) supported
Yes
Comsys Pacific Price
Save $4,701.01 off RRP
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS 40G QSFP+ ER4 LC (40KM) TAA
The Allied Telesis QSFP Series offers the latest industry-standard connectivity in a flexible, small form factor. These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
Options
Allied Telesis QSFP Series Gigabit Small Form-Factor Pluggables (SFPs) are supported on all Allied Telesis devices with SFP uplink connections.
The hot-swappable feature of the QSFP Series allows for network changes without removal or reconfiguration of costly network equipment.
Applications
The QSFP Series supports 40GbE and high-density 10GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.
Interoperability
The Allied Telesis QSFP Series is fully compliant with industry-standard networking regulations. This allows Allied Telesis QSFP modules to be used on any networking equipment which complies with industry standards.
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 40000 Mbit/s
- Interface type: QSFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: ER4
- Maximum transfer distance: 40000 m
- Wavelength: 1331 nm
- Tx power (min): -3 dBmW
- Tx power (max): 5 dBmW
- Link budget: 16 dB
- Networking standards: IEEE 802.3ba
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Housing material: Metal
- Hot-swap: Yes
- Power consumption (typical): 3.5 W
- Compliance certificates: RoHS
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 0 - 85%
- RX sensitivity: -19 dB
Ex GST
$13,402.99
