APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 200/208V, 2…

APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 200/208V, 2 L6-30 IN, 16 C13, 2 C19 OUT, 50/60Hz, Rackmount, 2U, 18 AC outlet(s), Black

APC ATS Rack 200-208V-30A L6-30 in (1

Click or hover over image to enlarge

Brand:APC
MPN:6182264

Part #: 6182264

Input operation voltage (min)

180 V

Input operation voltage (max)

220 V

AC input frequency

50 - 60 Hz

Input current

30 A

Output operation voltage (min)

200 V

Output operation voltage (max)

208 V

Output current

30 A

Form factor

Rackmount

Returns & Warranty

Comsys Pacific Price

$2,838.99

Save NZ$236.01 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To CompareStock Alerts
Afterpay

Four payments of NZ$816.21 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC ATS Rack 200-208V-30A L6-30 in (1

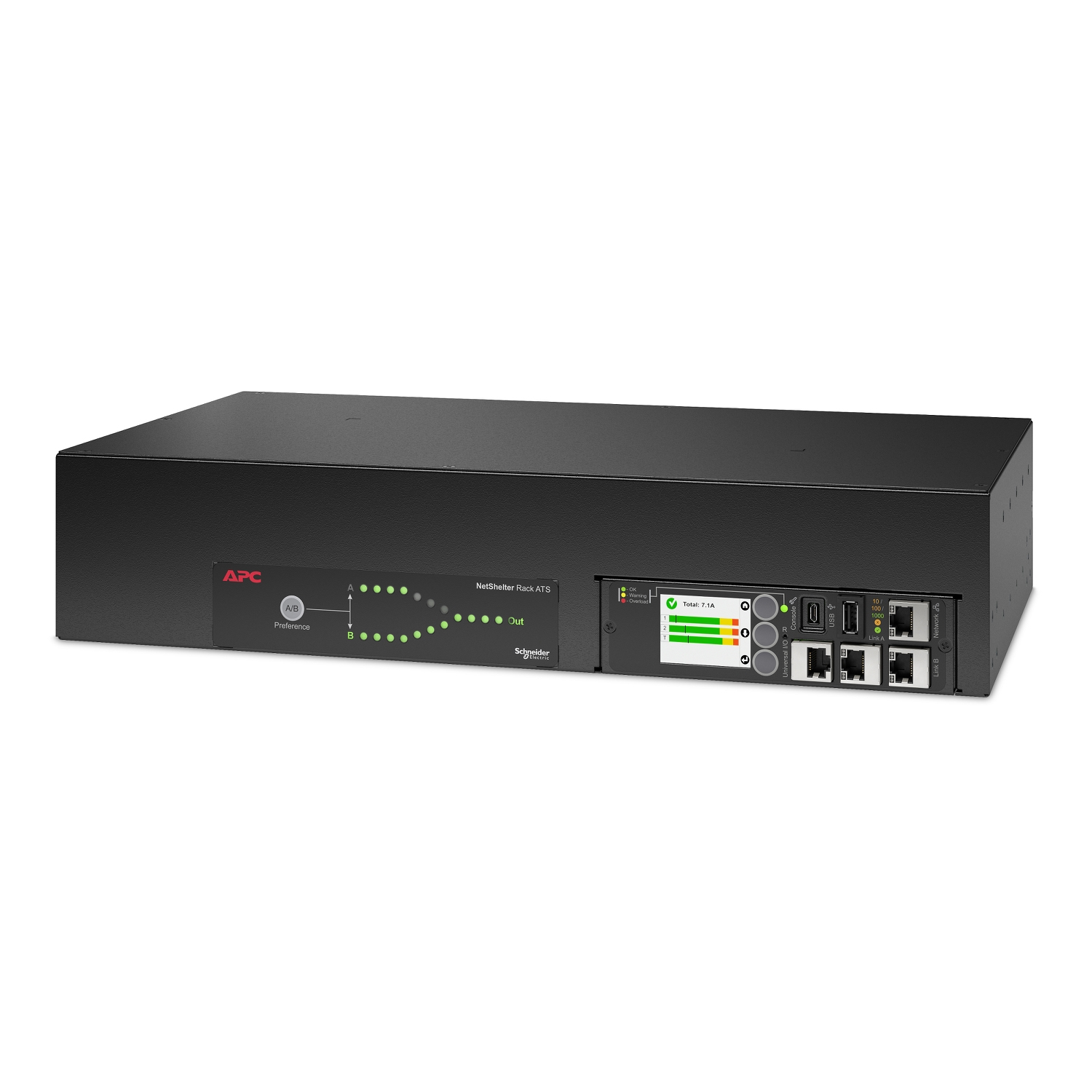

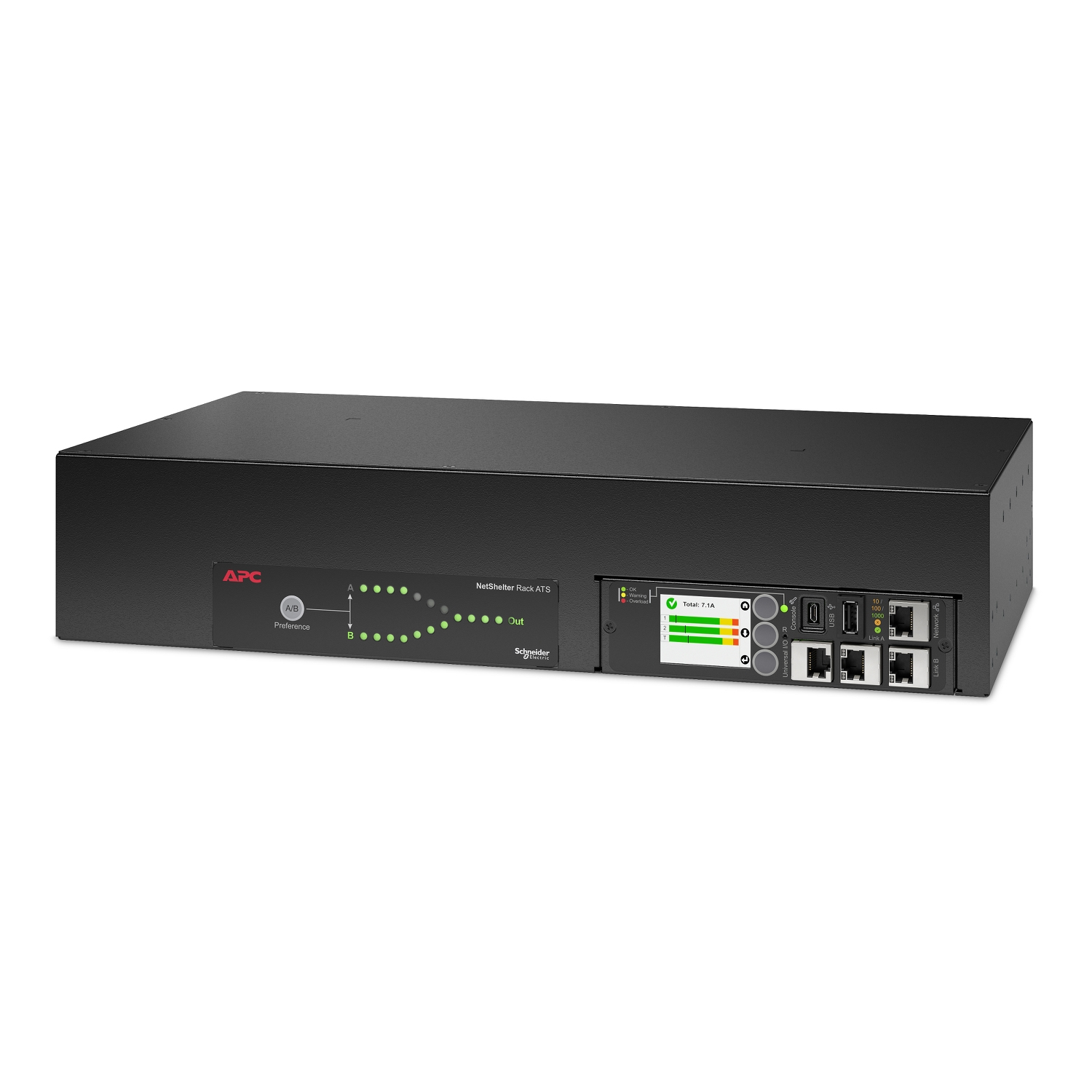

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4432A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4432A is single phase 2U Rack ATS with 30A rated current, 200V/208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with inbuilt circuit breaker protection, 2 NEMA L6-30P inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Key features

  • Input operation voltage (min): 180 V
  • Input operation voltage (max): 220 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 30 A
  • Output operation voltage (min): 200 V
  • Output operation voltage (max): 208 V
  • Output current: 30 A
  • LED indicators: Yes
  • Form factor: Rackmount
  • Rack capacity: 2U
  • Product colour: Black
  • Certification: REACH, RoHS, WEEE, PSE, TÜV-C, TÜV-NURTL
  • AC outlets quantity: 18 AC outlet(s)
  • AC outlet types: C13 coupler, C19 coupler
  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Doesn't contain: Mercury
  • Total carbon footprint (kg of CO2e): 754.59
  • Warranty period: 2 year(s)
  • Compliance certificates: REACH, RoHS, WEEE
  • Width: 432 mm
  • Depth: 236 mm
  • Height: 88 mm
  • Weight: 6.58 kg
  • Package width: 584 mm
  • Package depth: 356 mm
  • Package height: 210 mm
  • Package weight: 9.07 kg
