APC Dry Contact I/O SmartSlot Card
Dry Contact I/O SmartSlot Card
- Brand: APC
- Category: Mobility Accessories
- SKU: 2367451
- MPN: AP9613
APC Dry contact, Management Options, Dry Contact I/O Card, monitor…
APC Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts, Black, REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3,..., 0 - 40 °C, -15 - 65 °C, 121 mm, 114 mm
Click or hover over image to enlarge
Product colour
Black
Certification
REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC 15 A
Harmonized System (HS) code
85079080
Total carbon footprint (kg of CO2e)
282.46
Ethernet LAN (RJ-45) ports
2
Width
121 mm
Depth
114 mm
Height
38 mm
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

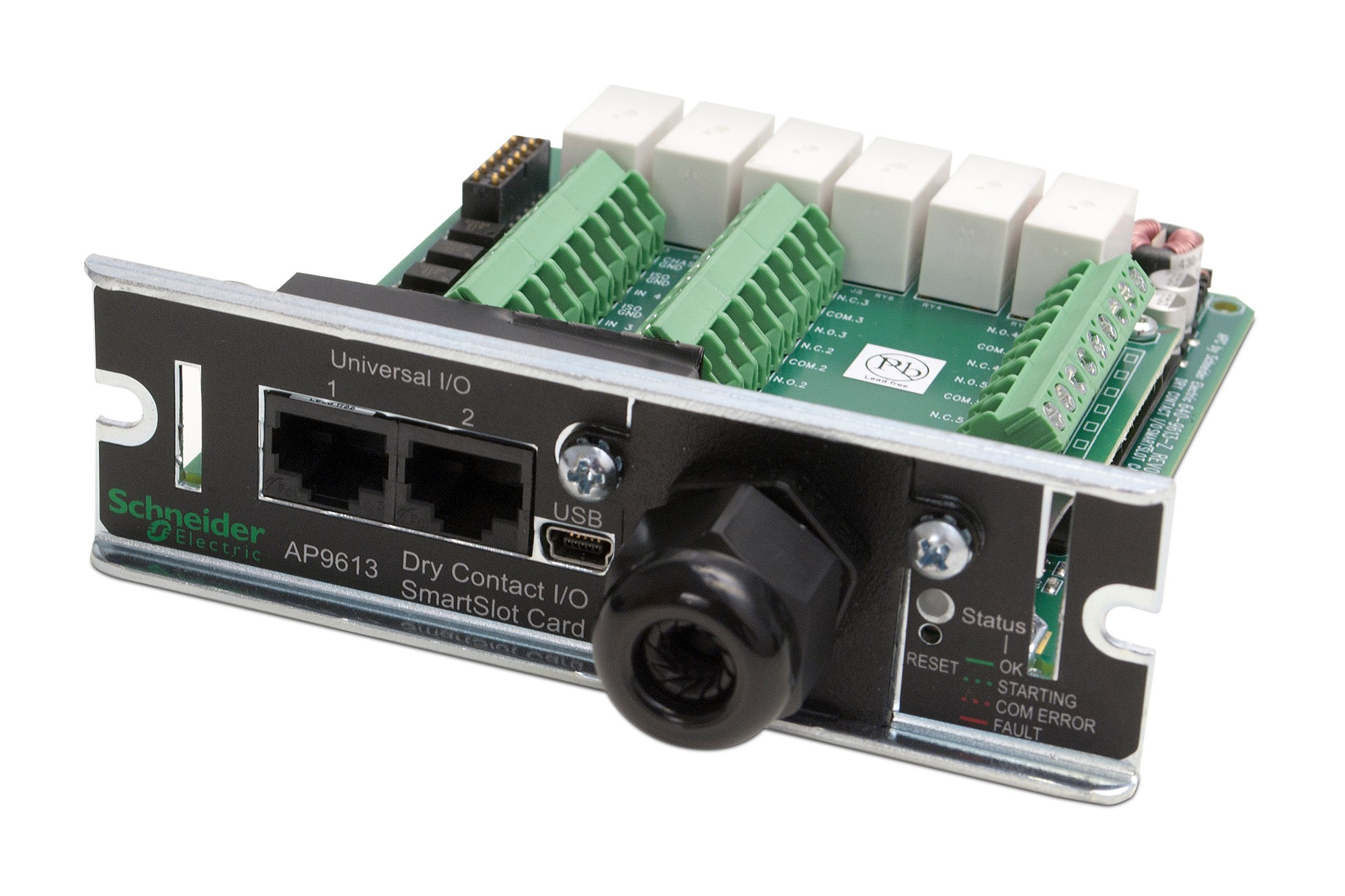

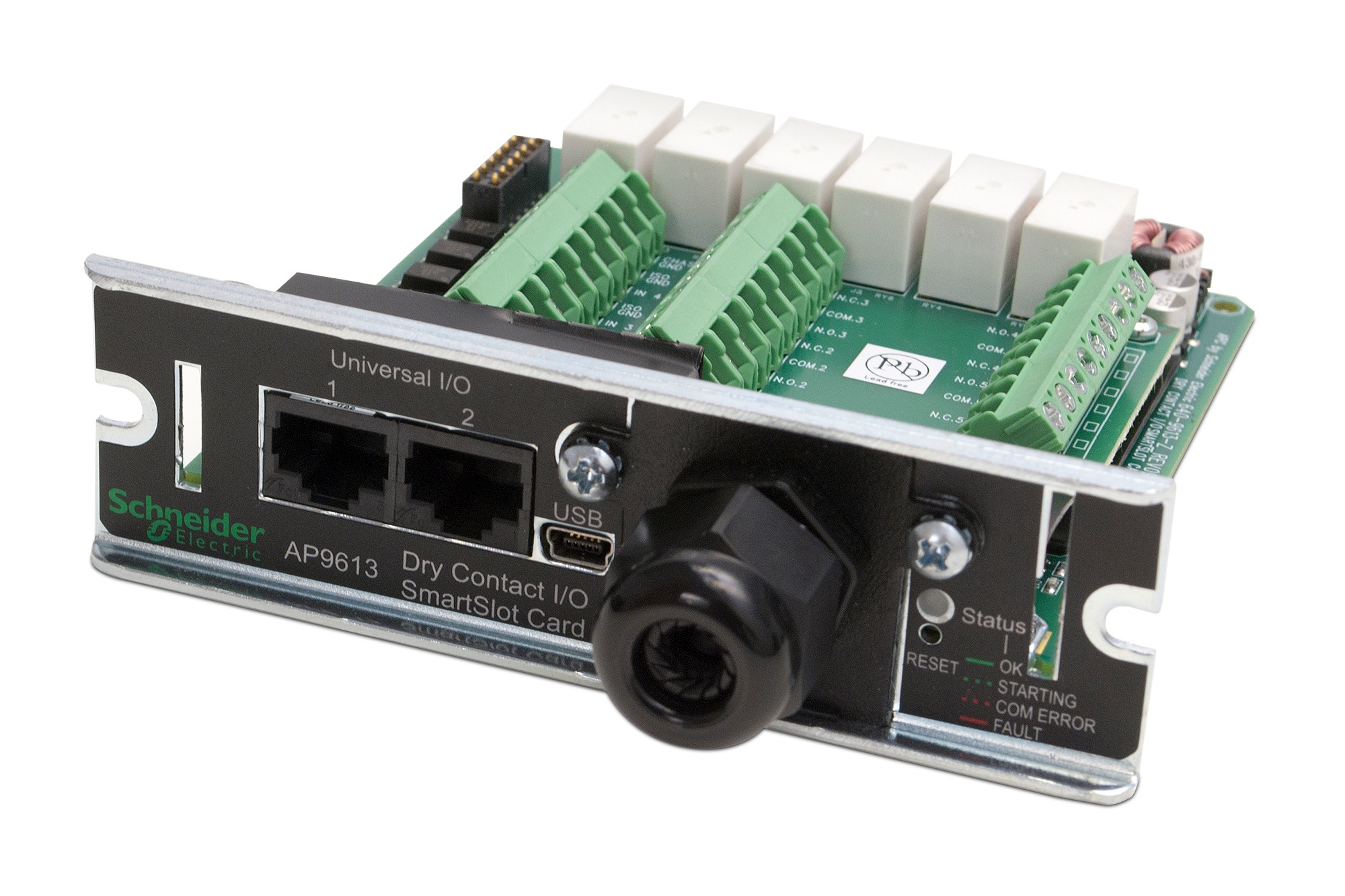

APC Dry Contact I/O SmartSlot Card
The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Key features
- Product colour: Black
- Ethernet LAN (RJ-45) ports: 2
- Certification: REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC 15 A
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 65 °C
- Width: 121 mm
- Depth: 114 mm
- Height: 38 mm
- Weight: 210 g
- Harmonized System (HS) code: 85079080
- Total carbon footprint (kg of CO2e): 282.46
Price on Application
