APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13…

APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet, Basic, 0U, Single-phase, Vertical, Aluminium, Black

APC EASY PDU, BASIC, ZERO U, 32A, 230V, (20)C13 & (4)C19?IEC309

Click or hover over image to enlarge

Brand:APC
MPN:EPDU1132B

Part #: EPDU1132B

Nominal input voltage

200/208/230 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Nominal output voltage

230 V

Load capacity

7360 VA

Maximum input current per phase

32 A

PDU types

Basic

Type

Single-phase

Returns & Warranty

Comsys Pacific Price

$453.99

Save NZ$145.01 off RRP

In Stock

21 units available

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Need help? Call 0800 664 554
Add To CompareStock Alerts
Afterpay

Four payments of NZ$130.52 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC EASY PDU, BASIC, ZERO U, 32A, 230V, (20)C13 & (4)C19?IEC309

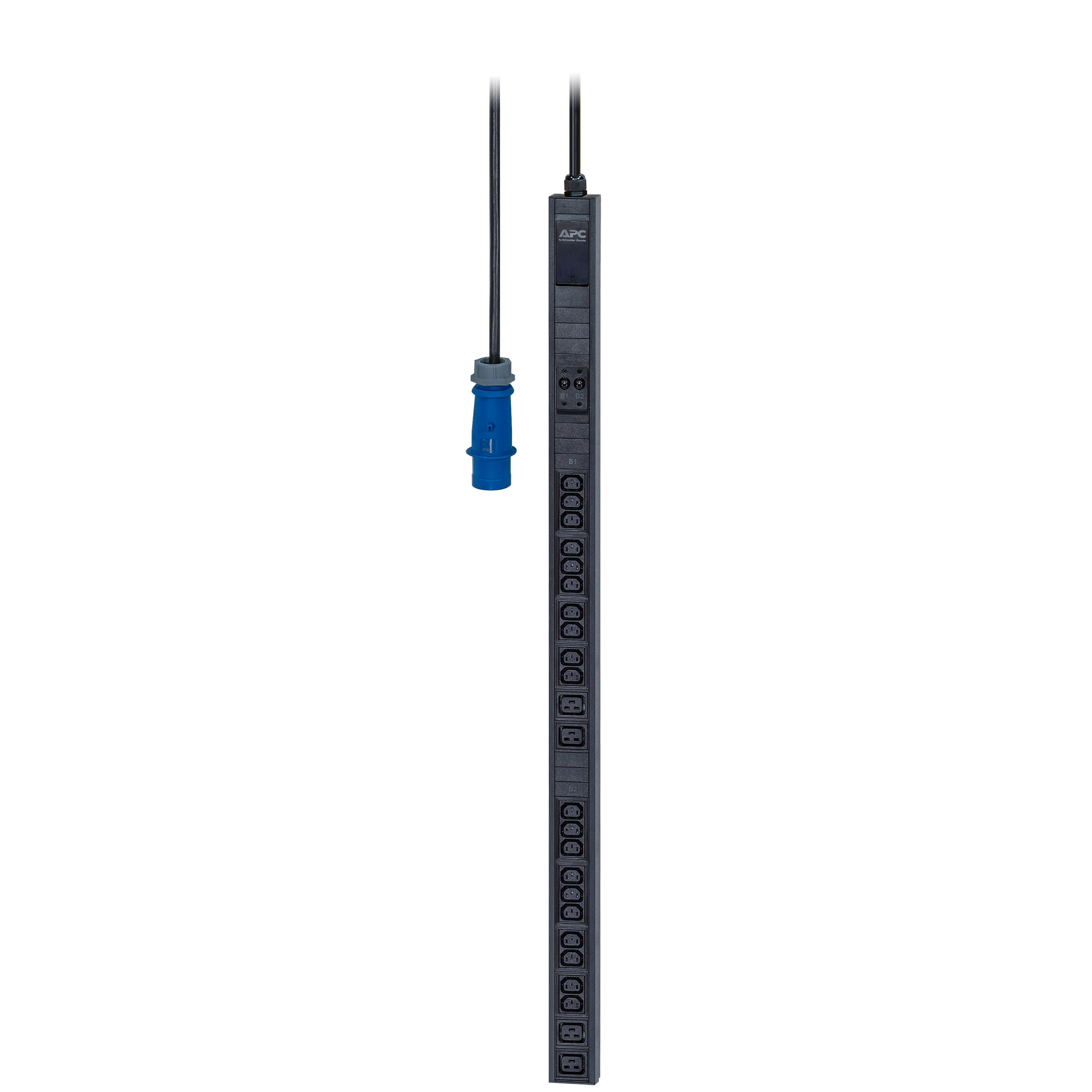

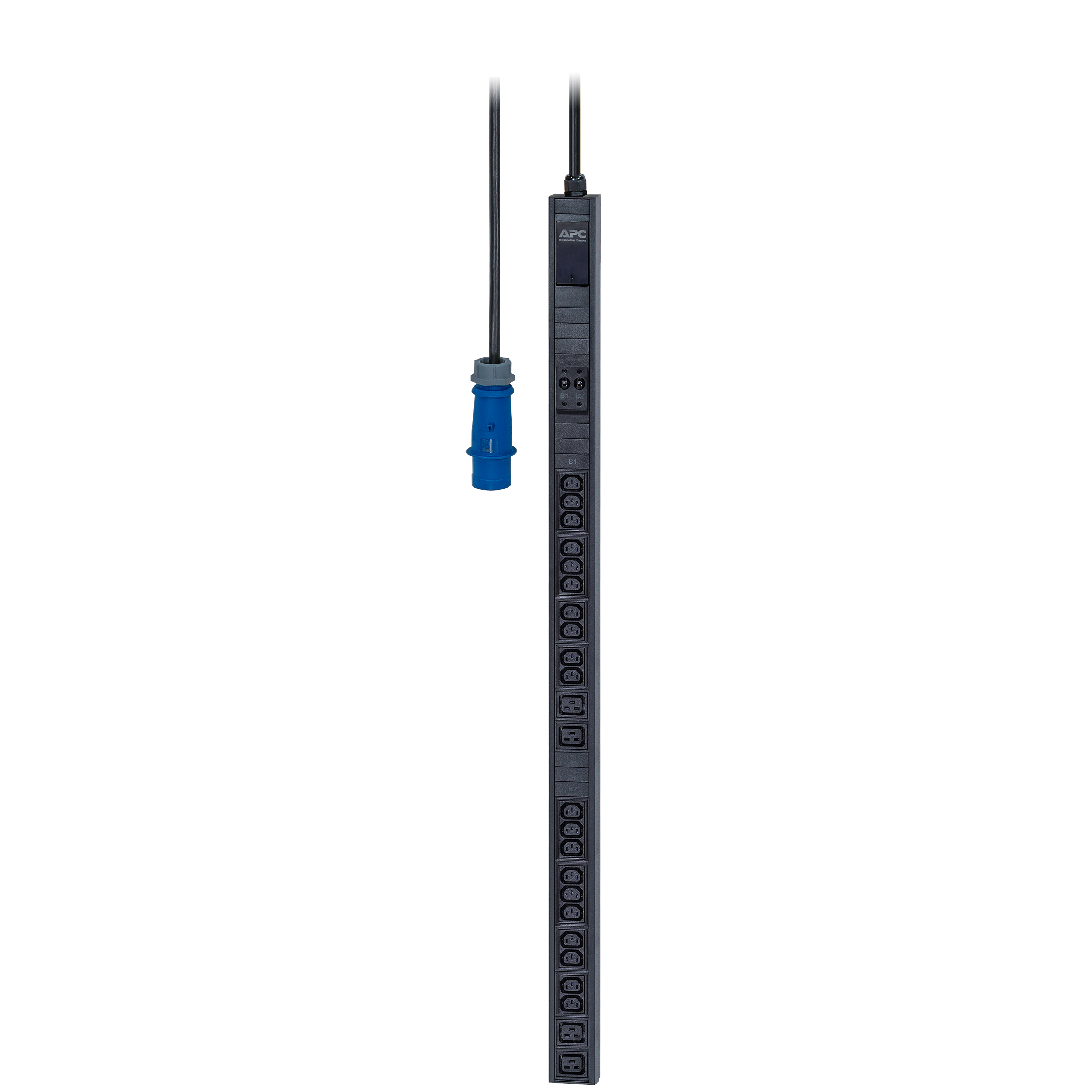

APC Easy Basic Rack PDU EPDU1132B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1132B has IEC 309 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Key features

  • PDU types: Basic
  • Type: Single-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Housing material: Aluminium
  • Product colour: Black
  • On/off switch: No
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • Nominal input voltage: 200/208/230 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 32 A
  • Nominal output voltage: 230 V
  • Load capacity: 7360 VA
  • Maximum input current per phase: 32 A
  • Certification: CE, TUV
  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 9000 m
  • Width: 62 mm
  • Depth: 44 mm
  • Height: 1175 mm
  • Weight: 3.58 kg
  • Manual: Yes
  • Package weight: 4.36 kg
  • Package width: 160 mm

+ 3 more — see the Specifications tab.
