APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire…

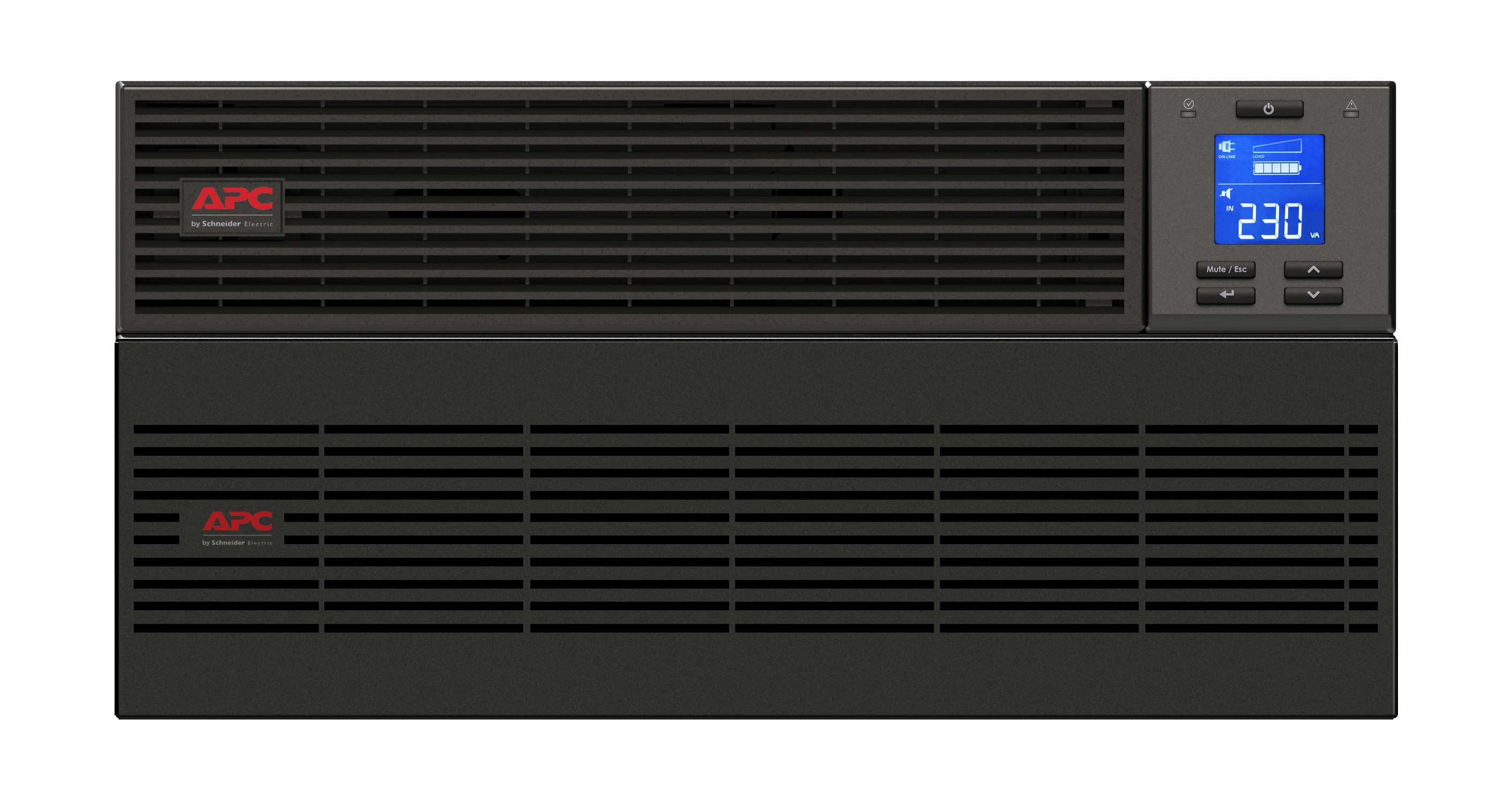

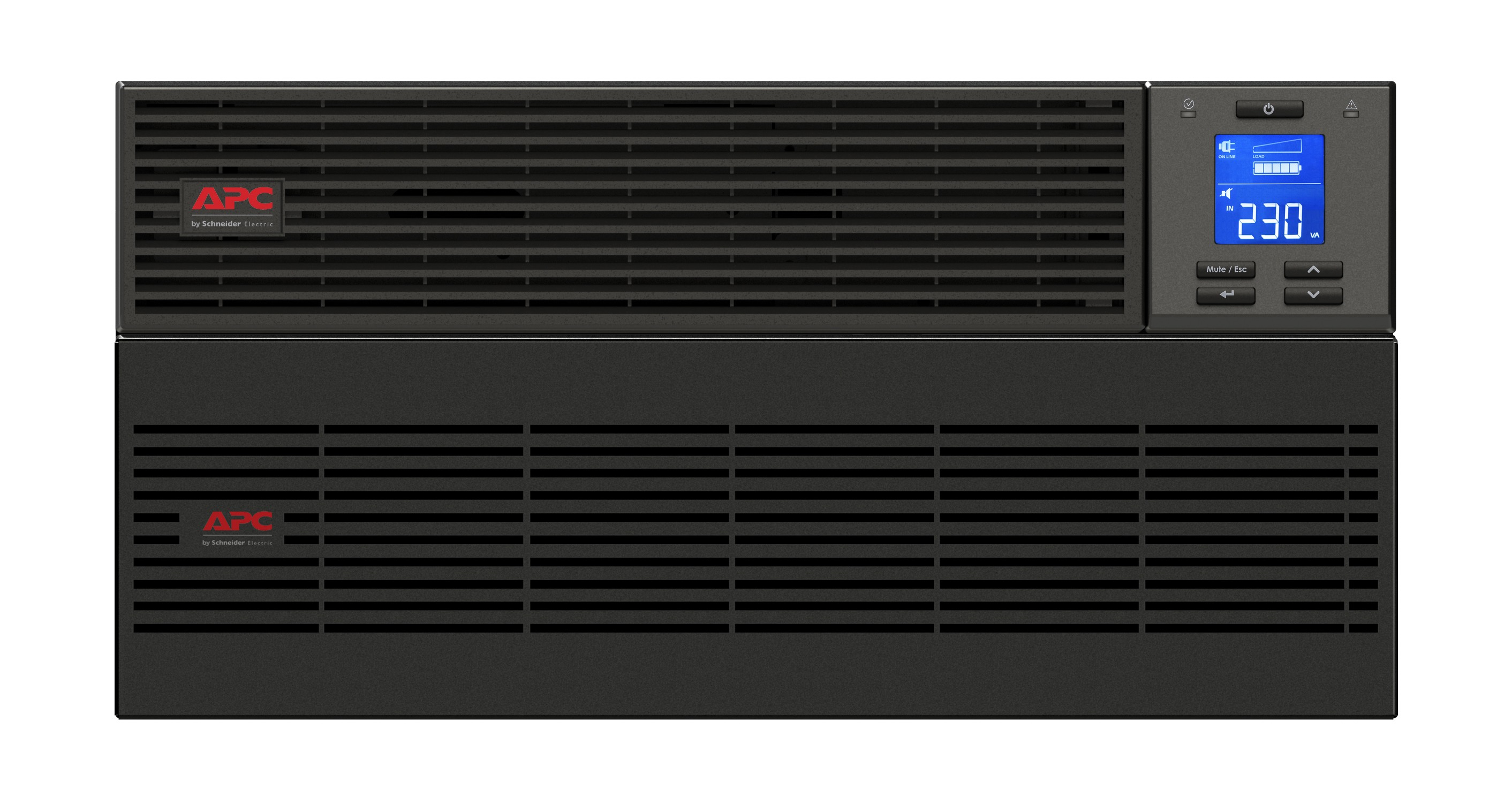

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit, Double-conversion (Online), 10 kVA, 10000 W, Sine, 110 V, 300 V

APC EASY UPS SRV RM 10000VA 230V WITH EX

Click or hover over image to enlarge

Brand:APC
MPN:4355747

Part #: 4355747


Form factor

Mini Tower

Rack capacity

2U

Cooling type

Active

Built-in fan

Yes

Product colour

Black

Display type

LCD

LED indicators

Fault

Battery technology

Sealed Lead Acid (VRLA)


Returns & Warranty

Comsys Pacific Price

$5,394.99

Save NZ$430.01 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

APC EASY UPS SRV RM 10000VA 230V WITH EX

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 10 kVA
  • Output power: 10000 W
  • Waveform: Sine
  • Input operation voltage (min): 110 V
  • Input operation voltage (max): 300 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Output voltage regulation: 1%
  • Maximum current: 4 A
  • Surge energy rating: 600 J
  • Efficiency: 94%
  • Power factor: 0.99
  • Input power factor: 0.99
  • Crest factor: 3:1
  • Emergency Power Off (EPO): Yes
  • Noise level: 58 dB
  • Power protection features: Overload
  • Audible alarm(s): Yes
  • AC outlet types: C13 coupler, C19 coupler
  • USB port: Yes
  • Serial interface: Yes
  • Serial interface type: RS-232
  • Battery technology: Sealed Lead Acid (VRLA)
  • Charging current: 9 A
  • Form factor: Mini Tower
  • Rack capacity: 2U
  • Cooling type: Active

+ 15 more — see the Specifications tab.
