APC Galaxy VS UPS 40kW 400V with N+1 power module, for 5 smart…

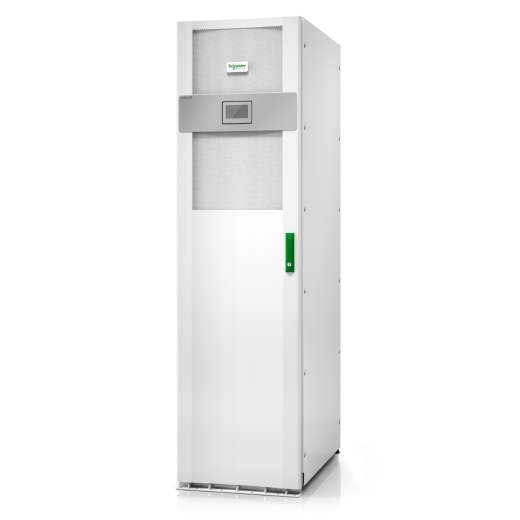

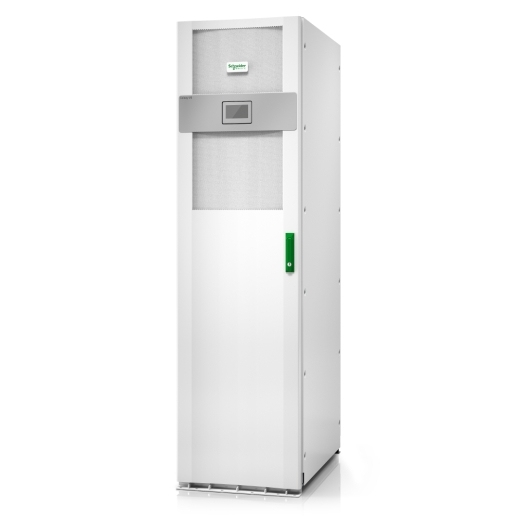

APC Galaxy VS UPS 40kW 400V with N+1 power module, for 5 smart modular 9Ah battery strings, Start-up 5x8, Double-conversion (Online), 40 kVA, 40000 W, Sine, 340 V, 460 V

APC Galaxy VS UPS 40kW 400V with N+1 power module, for 5 smart modular 9Ah battery strings, -

Click or hover over image to enlarge

Brand:APC
MPN:GVSUPS40KR0B5HS-KIT

Part #: GVSUPS40KR0B5HS-KIT

Form factor

Tower

Product colour

White

Display type

LCD

International Protection (IP) code

IP20

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

480 V

UPS topology

Double-conversion (Online)

Output power capacity

40 kVA

Returns & Warranty

Price on Application

Contact us for pricing

Sales will confirm seat count, term, and volume pricing before order.

Only 1 left in stock

Order soon to avoid backorder

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Need help? Call 0800 664 554
Add To CompareStock Alerts
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC Galaxy VS UPS 40kW 400V with N+1 power module, for 5 smart modular 9Ah battery strings, -

Highly efficient, easy-to-deploy 40 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 40 kVA
  • Output power: 40000 W
  • Waveform: Sine
  • Input operation voltage (min): 340 V
  • Input operation voltage (max): 460 V
  • Input frequency: 40/70 Hz
  • Output operation voltage (min): 380 V
  • Output operation voltage (max): 415 V
  • Output frequency: 50/60 Hz
  • Output voltage regulation: 1%
  • Maximum current: 72 A
  • Response time: 3 ms
  • Heat dissipation: 4412 BTU/h
  • Number of input phases: 3
  • Input power factor: 0.99
  • Crest factor: 2.5:1
  • ECO mode: Yes
  • Output voltage Total Harmonic Distortion (THD): 3%
  • Input current Total Harmonic Distortion (THD): 3%
  • Noise level: 65 dB
  • Audible alarm(s): Yes
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery voltage: 480 V
  • Form factor: Tower
  • Product colour: White
  • Display type: LCD
  • International Protection (IP) code: IP20
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 40 °C

+ 16 more — see the Specifications tab.
