APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC…

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz, Rackmount, 2U, 18 AC outlet(s), Black

APC Rack ATS G3 230V 32A IEC 309 in (16) C13

Click or hover over image to enlarge

Brand:APC
MPN:5631921

Part #: 5631921

Input operation voltage (min)

207 V

Input operation voltage (max)

253 V

AC input frequency

50 - 60 Hz

Input current

32 A

Output current

32 A

Form factor

Rackmount

Rack capacity

2U

Product colour

Black

Returns & Warranty

Comsys Pacific Price

$2,538.99

Save NZ$211.01 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To CompareStock Alerts
Afterpay

Four payments of NZ$729.96 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC Rack ATS G3 230V 32A IEC 309 in (16) C13

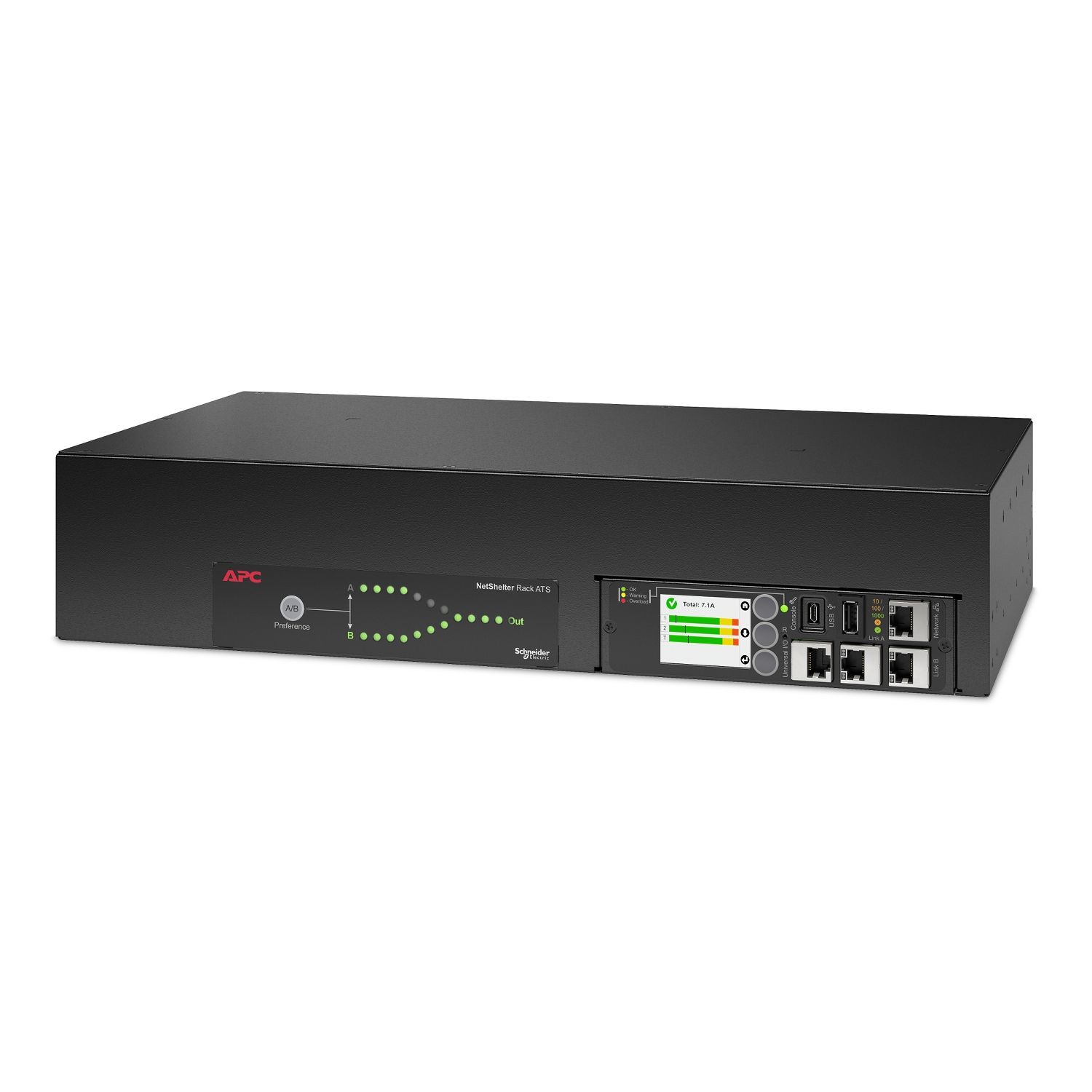

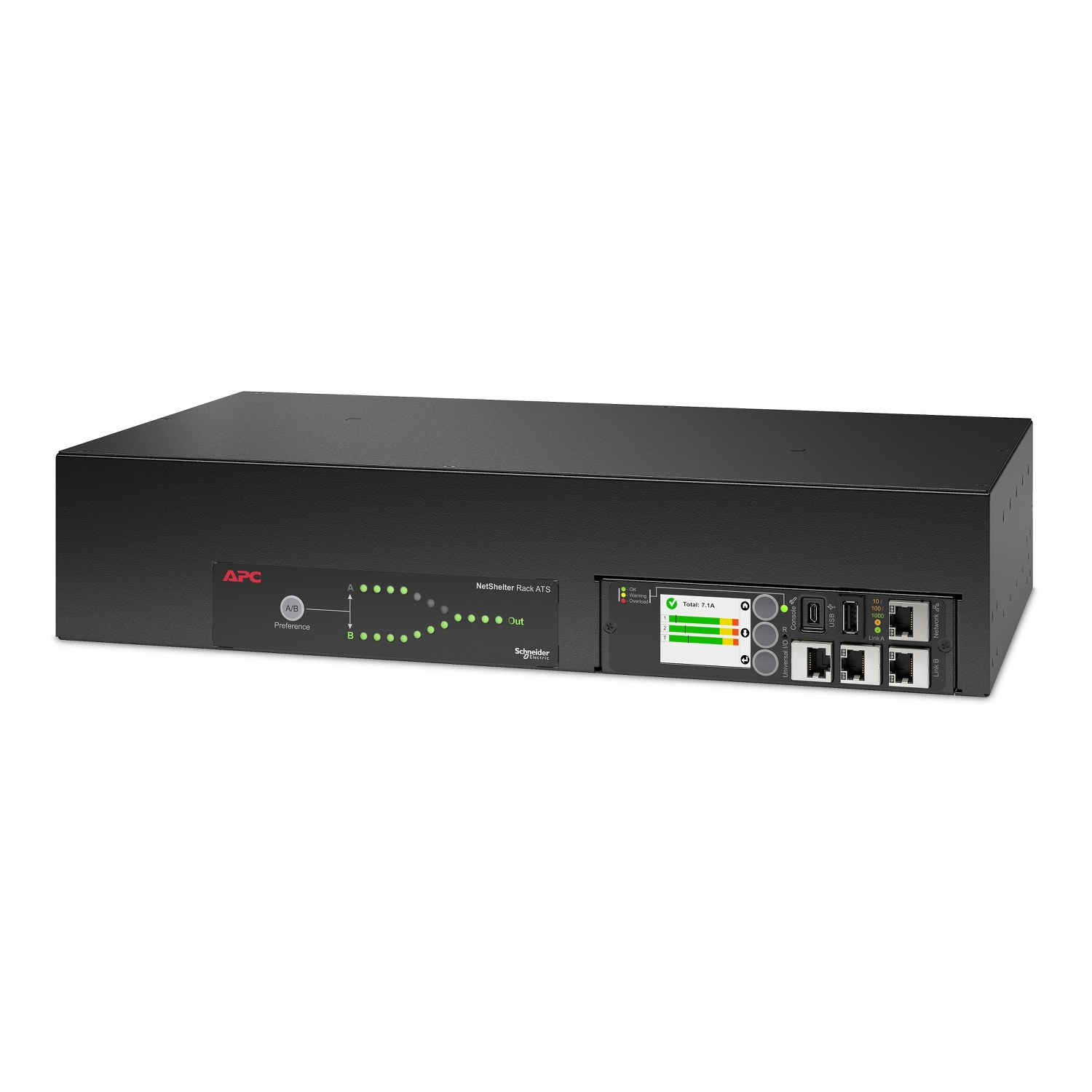

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Key features

  • Input operation voltage (min): 207 V
  • Input operation voltage (max): 253 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 32 A
  • Output current: 32 A
  • Form factor: Rackmount
  • Rack capacity: 2U
  • Product colour: Black
  • Certification: EN 55022 class A, FCC part 15 class A
  • AC outlets quantity: 18 AC outlet(s)
  • AC outlet types: C13 coupler, C19 coupler
  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Total carbon footprint (kg of CO2e): 794.41
  • Width: 432 mm
  • Depth: 236 mm
  • Height: 88 mm
  • Weight: 6.94 kg
