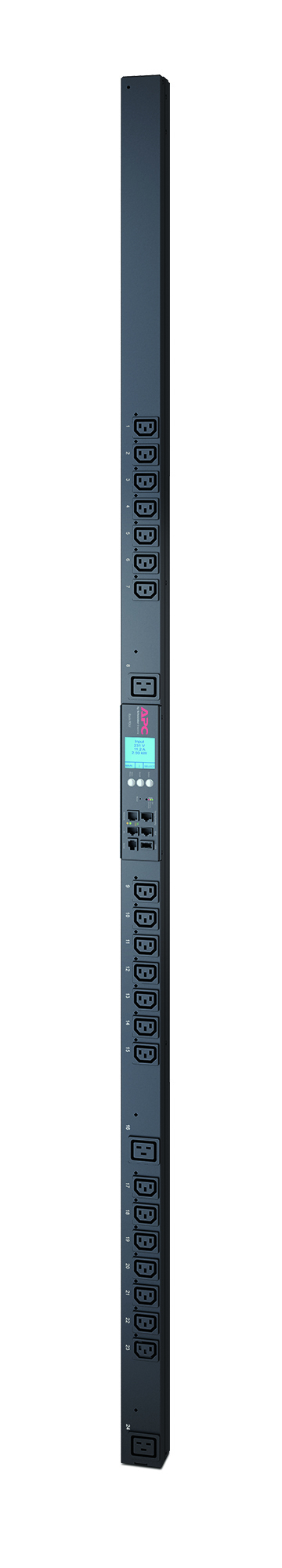

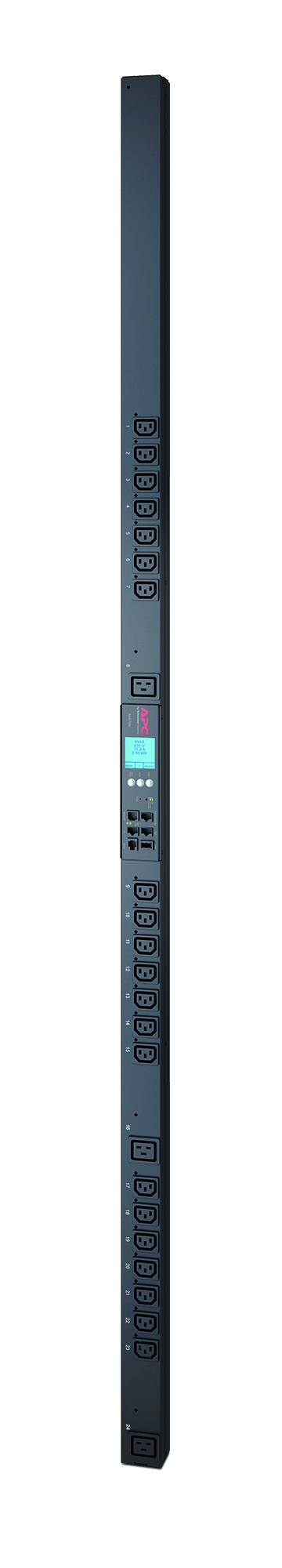

APC Rack PDU 2G. Metered by Outlet with Swit
RACK PDU 2G. METERED BY OUTLET WITH SWITCHING. ZEROU. 16A. 100-240V. (21) C13 (3) C19
- Brand: APC
- Category: UPS Systems
- SKU: 2358152
- MPN: AP8659
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V,…
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19, Metered, Metered-by-outlet, Switched, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler
Click or hover over image to enlarge
Nominal input voltage
200-230 V
AC input frequency
50 - 60 Hz
Maximum current
16 A
Nominal output voltage
200-230 V
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
3680 W
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Rack PDU 2G. Metered by Outlet with Swit
Key features
- PDU types: Metered, Metered-by-outlet, Switched
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 24 AC outlet(s)
- AC outlet types: C13 coupler, C19 coupler
- Monitoring: Current, Power, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
- Nominal input voltage: 200-230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Nominal output voltage: 200-230 V
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum total current draw per phase: 16 A
- Maximum power: 3680 W
- Compliance certificates: RoHS
- Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
- Width: 56 mm
- Depth: 51 mm
- Height: 1829 mm
- Weight: 6.09 kg
- Package weight: 8.36 kg
- Package width: 162 mm
+ 3 more — see the Specifications tab.
