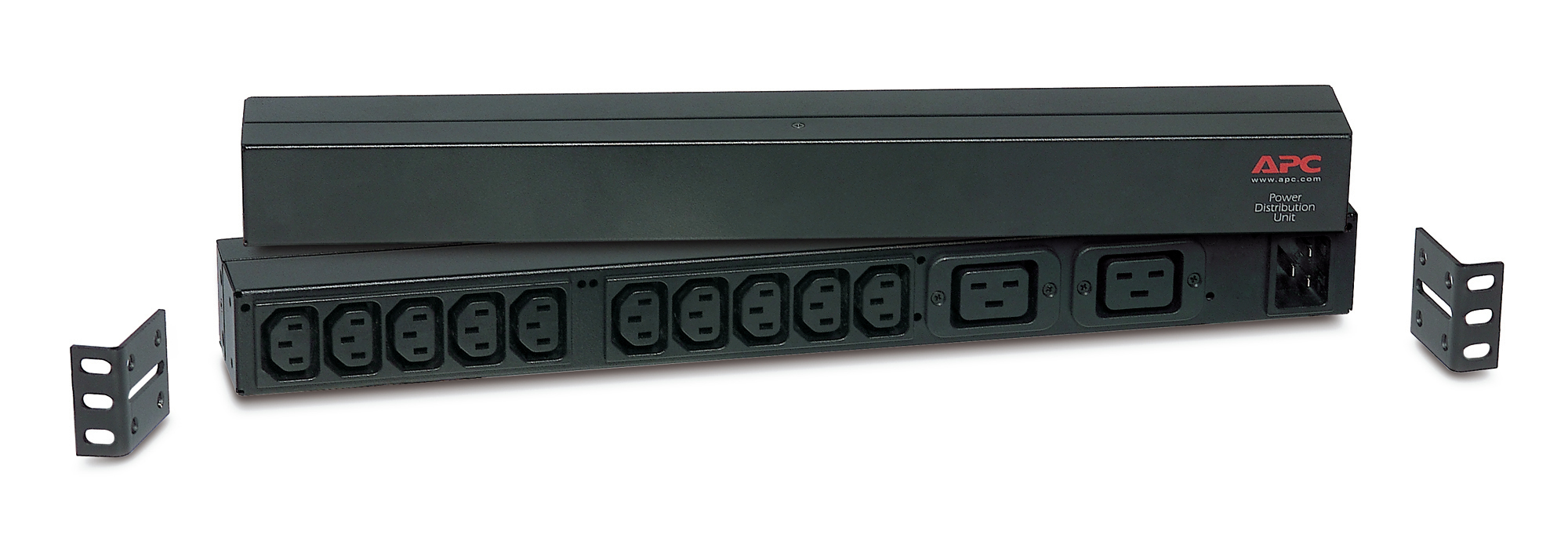

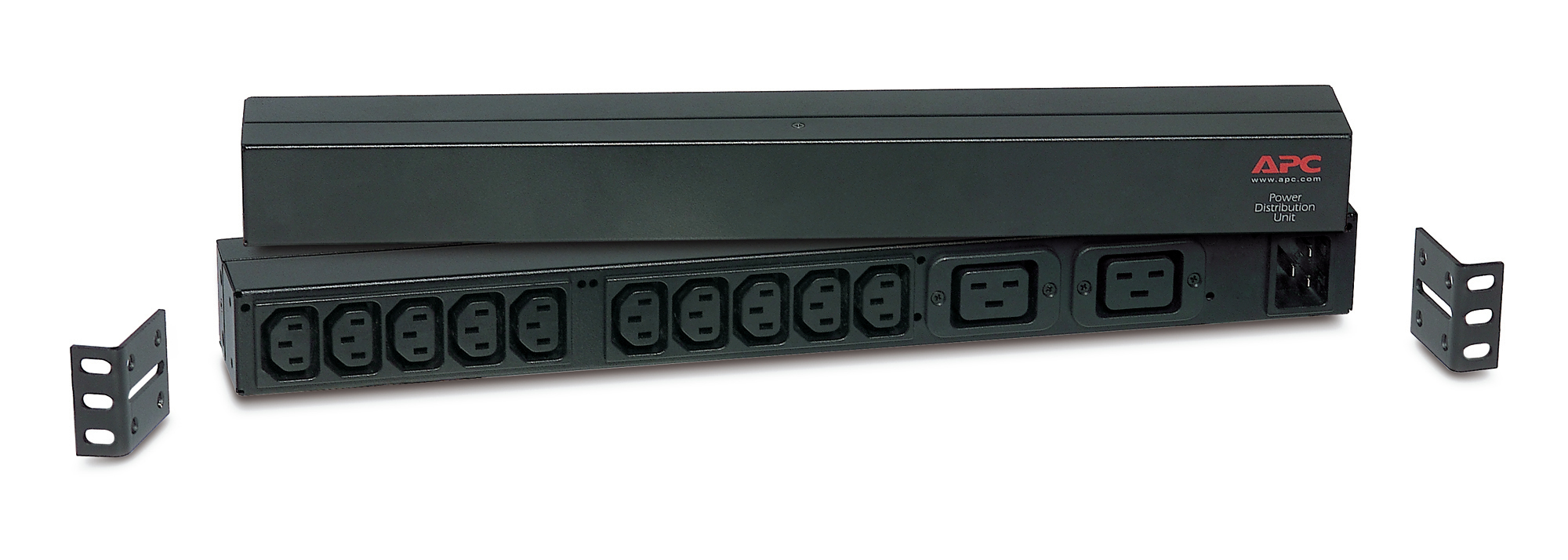

APC RACK PDU BASIC 1U 16A
208 AND 230V (10)C13 AND (2)C19
- Brand: APC
- Category: UPS Systems
- SKU: 1000238
- MPN: AP9559
APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC…
APC RACK PDU BASIC 1 U 16A 230V, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 12 AC outlet(s)
Click or hover over image to enlarge
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum power
3680 W
PDU types
Basic
Type
Single-phase
Rack capacity
0U/1U
Mounting
Horizontal/Vertical
Product colour
Black
Comsys Pacific Price
Save $127.01 off RRP
Available to Order
4 payments of $201.82Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC RACK PDU BASIC 1U 16A
APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19
Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities
Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
Output Voltage(s) (main only) - 120, 208, 230 V
Maximum Total Current Draw per Phase - 16 A
Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Always on Outlets - 12
Overload Protection
Input:
Nominal input voltage - 120, 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C20
Cord Length 8.2 feet ( 2.5 meters )
Acceptable Input Voltage - 90-250 VAC
Maximum Line Current per phase - 16.0 A
Maximum Input Current per phase - 16.0 A
Load Capacity - 3680
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
- AC outlets quantity: 12 AC outlet(s)
- Power plug: C20 coupler
- AC outlet types: C13 coupler, C19 coupler
- I/O ports: Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
- Cable length: 2.5 m
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum power: 3680 W
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 447 mm
- Depth: 57.2 mm
- Height: 44.5 mm
- Weight: 980 g
