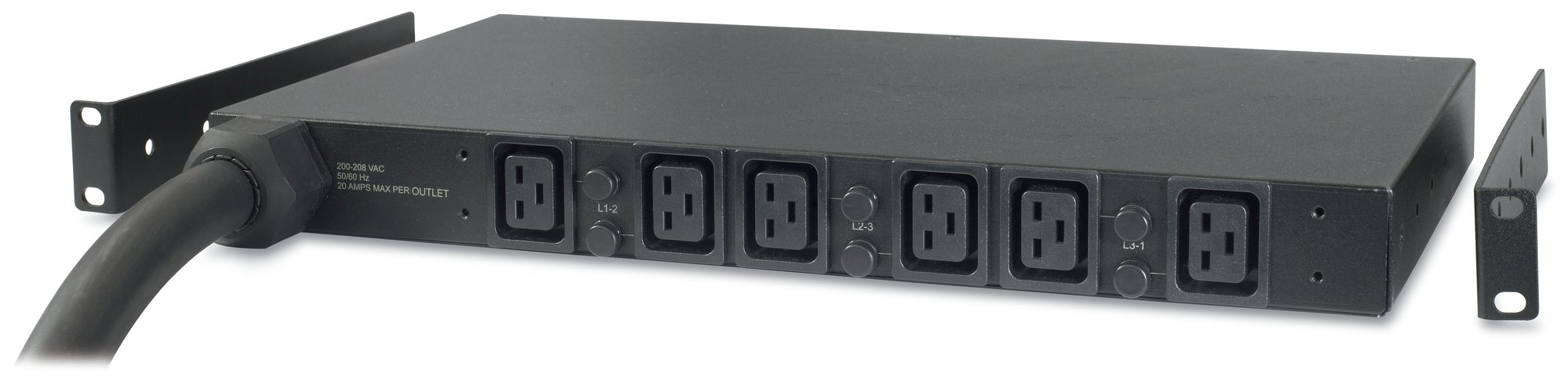

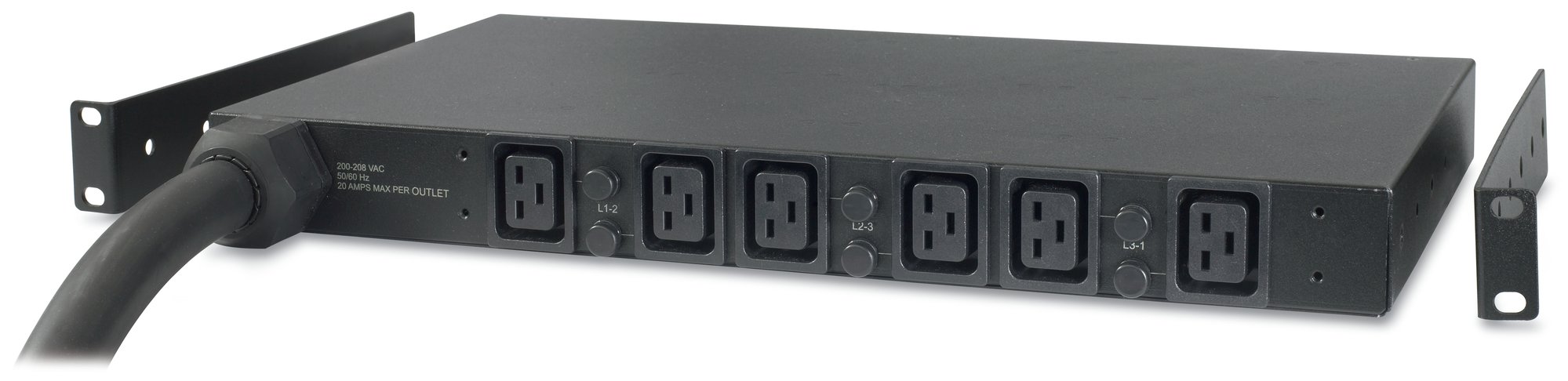

APC Rack PDU. Basic. 1U. 22KW. 400V. (6) C19
Rack PDU. Basic. 1U. 22KW. 400V. (6) C19
- Brand: APC
- Category: UPS Systems
- SKU: 1035642
- MPN: AP7526
APC Basic Rack PDU AP7526 power distribution unit (PDU) 6 AC…
APC Basic Rack PDU AP7526, Basic, 1U, Horizontal, Black, 6 AC outlet(s), C19 coupler
Click or hover over image to enlarge
Nominal input voltage
400 V
Nominal output voltage
230 V
Load capacity
22080 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Maximum power
22000 W
PDU types
Basic
Rack capacity
1U
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Rack PDU. Basic. 1U. 22KW. 400V. (6) C19
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.
Key features
- PDU types: Basic
- Rack capacity: 1U
- Mounting: Horizontal
- Product colour: Black
- AC outlets quantity: 6 AC outlet(s)
- AC outlet types: C19 coupler
- Input connection type: IEC 309 32A 3P+N+PE
- Output connections: IEC 320 C19
- Cable length: 2.44 m
- Nominal input voltage: 400 V
- Nominal output voltage: 230 V
- Load capacity: 22080 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 22000 W
- Certification: CE,GOST,VDE
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 437 mm
- Depth: 254 mm
- Height: 44 mm
- Weight: 4.84 kg
- Package weight: 6.98 kg
- Package width: 559 mm
- Package depth: 502 mm
- Package height: 241 mm
Price on Application
