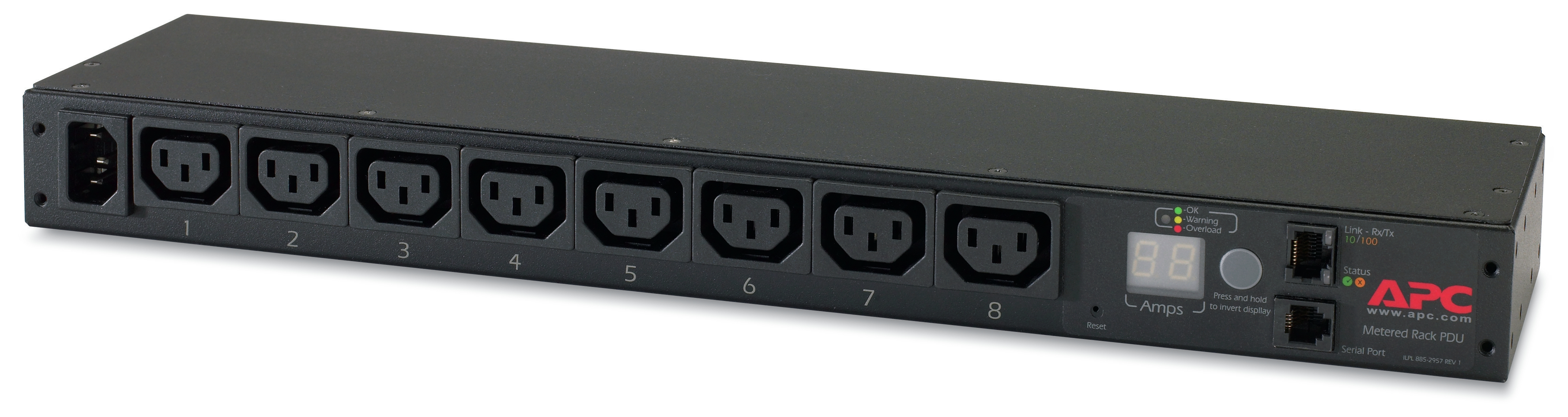

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
APC AP7820B, Metered, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler
Click or hover over image to enlarge
Part #: 3522011
Nominal input voltage
208-230 V
AC input frequency
50 - 60 Hz
Maximum current
15 A
Nominal output voltage
208-230 V
Load capacity
2300 VA
Maximum input current per phase
15 A
Maximum total current draw per phase
10 A
Maximum power
2300 W
Comsys Pacific Price
Save NZ$115.01 off RRP
Only 1 left in stock
Order soon to avoid backorder
Four payments of NZ$276.00 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC RACK PDU. METERED. 1U. 12A/208V. 10A/230
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Key features
- PDU types: Metered
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
- AC outlets quantity: 8 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- Input connection type: IEC-320 C14
- LED indicators: Yes
- Cable length: 1.98 m
- Monitoring: Current, Power, Voltage
- Nominal input voltage: 208-230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 15 A
- Nominal output voltage: 208-230 V
- Load capacity: 2300 VA
- Maximum input current per phase: 15 A
- Maximum total current draw per phase: 10 A
- Maximum power: 2300 W
- Compliance certificates: RoHS
- Certification: cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
- Width: 444 mm
- Depth: 102 mm
- Height: 44 mm
+ 5 more — see the Specifications tab.
Ex GST
NZ$959.99
