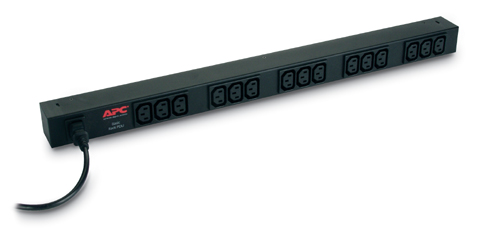

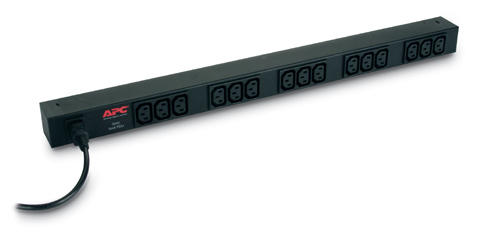

APC Rack PDU.Basic.Zero U.10A.230V. (15)C13
Rack PDU.Basic.Zero U.10A.230V. (15)C13
- Brand: APC
- Category: UPS Systems
- SKU: 1013352
- MPN: AP9568
APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15…
APC RACK PDU BASIC ZERO U 10A 230V, Basic, 0U, Single-phase, Vertical, Black, 15 AC outlet(s)
Click or hover over image to enlarge
Load capacity
2300 VA
Maximum input current per phase
10 A
Maximum power
2300 W
PDU types
Basic
Type
Single-phase
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Rack PDU.Basic.Zero U.10A.230V. (15)C13
Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities
Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit
Output:
Output Voltage(s) (main only) - 208, 230 V
Maximum Total Current Draw per Phase - 10 A
Output Connections - (15)IEC 320 C13
Input:
Nominal input voltage - 208, 230
Input frequency (Hz) - 50/60 Hz
Input Connection Type - IEC-320 C14
Cord Length - 6.5 feet ( 1.98 meters )
Acceptable Input Voltage - 200-240 VAC
Maximum Input Current per phase - 10.0 A
Load Capacity - 2300
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 15 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- I/O ports: Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14
- Cable length: 1.98 m
- Load capacity: 2300 VA
- Maximum input current per phase: 10 A
- Maximum power: 2300 W
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 445 mm
- Depth: 445 mm
- Height: 609.6 mm
- Weight: 2 kg
