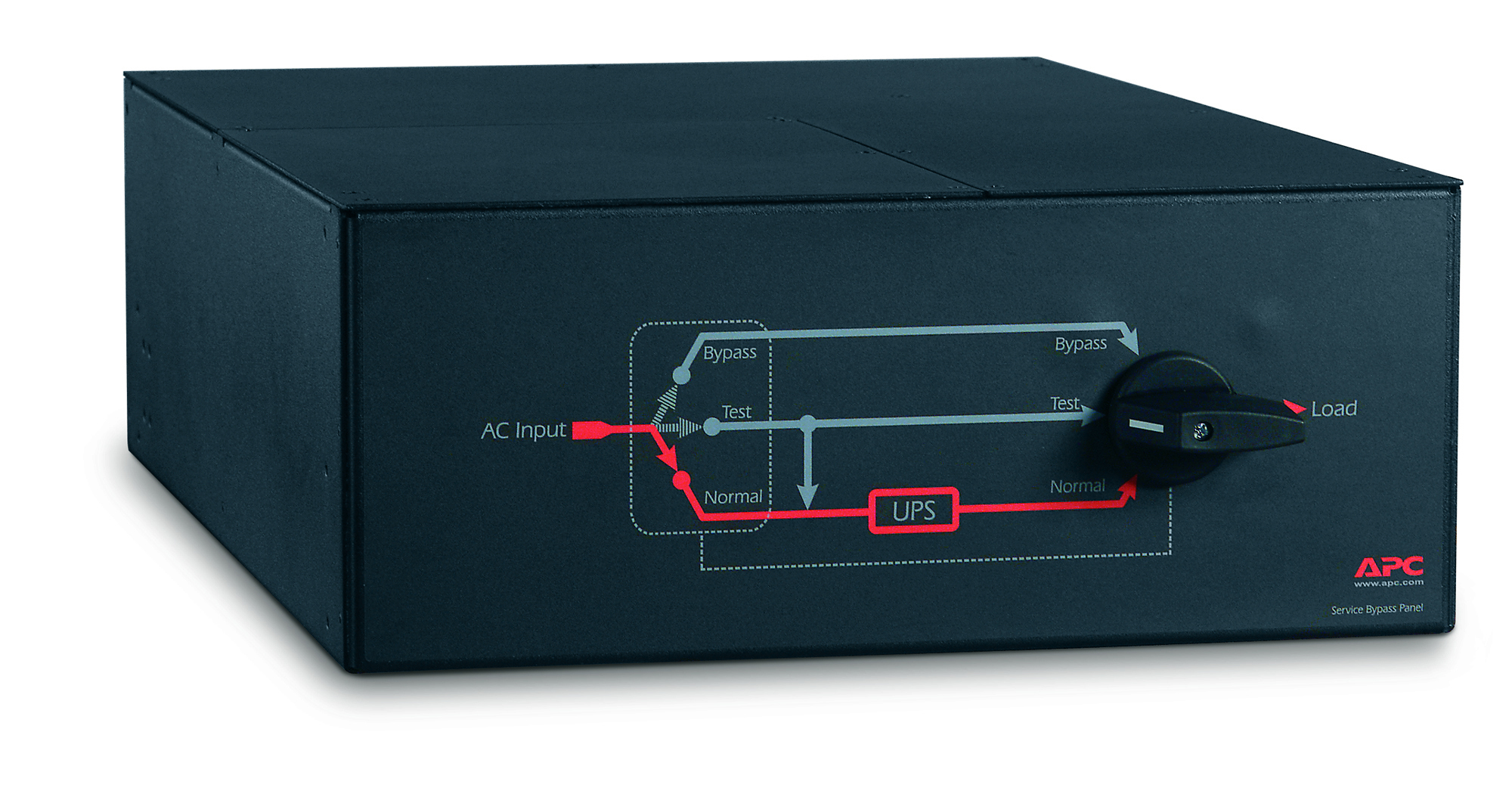

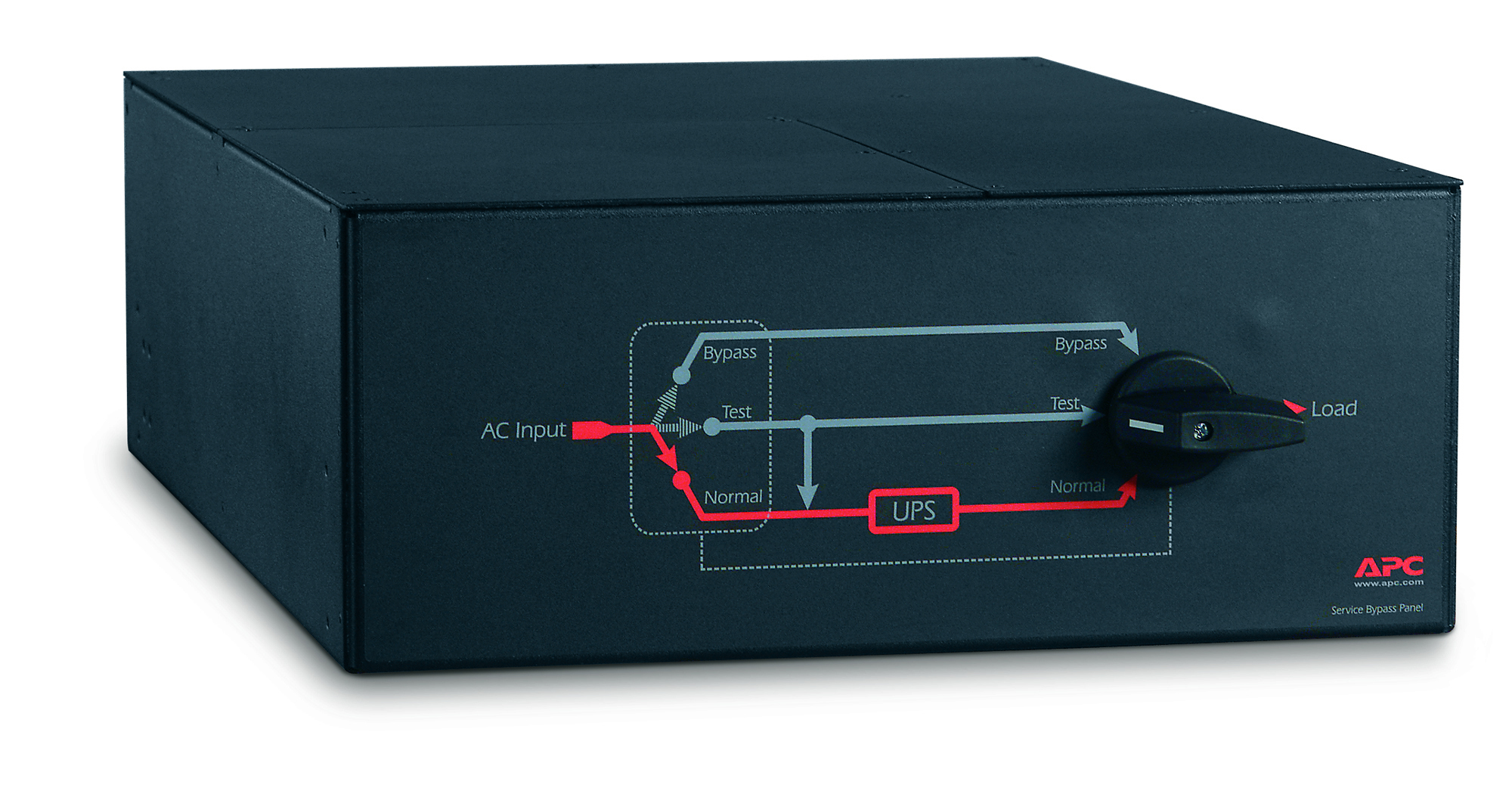

APC Service Bypass Panel- 230V. 100A. MB
APC Service Bypass Panel- 230V. 100A. MBB. Hardwire input. (3) 30A Hardwire Output
- Brand: APC
- Category: UPS Systems
- SKU: 1060502
- MPN: SBP16KRMI4U
APC SBP16KRMI4U UPS accessory
APC SBP16KRMI4U, Bypass switch, Rack-mount, Black, 4U, CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778, 20000 VA
Click or hover over image to enlarge
Load capacity
20000 VA
Input voltage
230 V
Input frequency
50/60 Hz
Number of phases
1
Maximum total current draw per phase
100 A
Product type
Bypass switch
Mounting type
Rack-mount
Product colour
Black
Comsys Pacific Price
Save $668.01 off RRP
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Service Bypass Panel- 230V. 100A. MB
- Quick Transfer Rate
- Wrap Around System Bypass
Key features
- Product type: Bypass switch
- Mounting type: Rack-mount
- Product colour: Black
- Rack capacity: 4U
- Compatibility: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Load capacity: 20000 VA
- Input voltage: 230 V
- Input frequency: 50/60 Hz
- Number of phases: 1
- Maximum total current draw per phase: 100 A
- Compliance certificates: RoHS
- Certification: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
- Operating temperature (T-T): -20 - 45 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 4500 m
- Non-operating altitude: 0 - 15000 m
- Width: 432 mm
- Depth: 673 mm
- Height: 178 mm
- Weight: 21.8 kg
- Package width: 610 mm
- Package depth: 991 mm
- Package height: 305 mm
- Package weight: 31.8 kg
- Harmonized System (HS) code: 85079080
