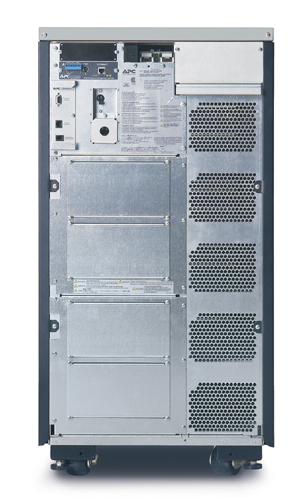

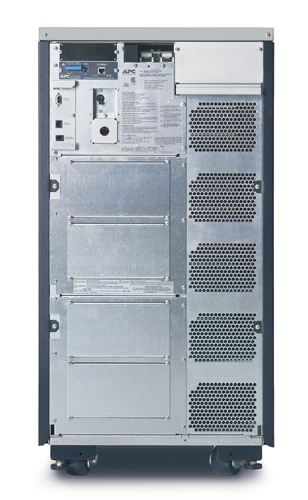

APC Symmetra LX 16kVA Scalable to 16kVA
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower. 220/230/240V or 380/400/415V
- Brand: APC
- Category: UPS Systems
- SKU: 1000312
- MPN: SYA16K16I
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or…
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 380/400/415V, 16 kVA, 11200 W, Hardwire, 7.5 min, 20.3 min, SYBT5
Click or hover over image to enlarge
Typical backup time at full load
7.5 min
Typical backup time at half load
20.3 min
Replacement battery cartridge
SYBT5
Output power capacity
16 kVA
Output power
11200 W
Emergency Power Off (EPO)
Yes
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
53926.34
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Symmetra LX 16kVA Scalable to 16kVA
Key features
- Output power capacity: 16 kVA
- Output power: 11200 W
- Emergency Power Off (EPO): Yes
- AC outlet types: Hardwire
- Typical backup time at full load: 7.5 min
- Typical backup time at half load: 20.3 min
- Replacement battery cartridge: SYBT5
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Weight: 308 kg
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 53926.34
- I/O ports: Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
- Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
- Interface: DB-9 RS-232, Smart-Slot
- Output connections: (1) Hard Wire 3-wire (H N + G)
- Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH): 480 x 730 x 940 mm
- Nominal output voltage: 230 V
- Output voltage note: Configurable for 220: 230 or 240 nominal output voltage
Price on Application
