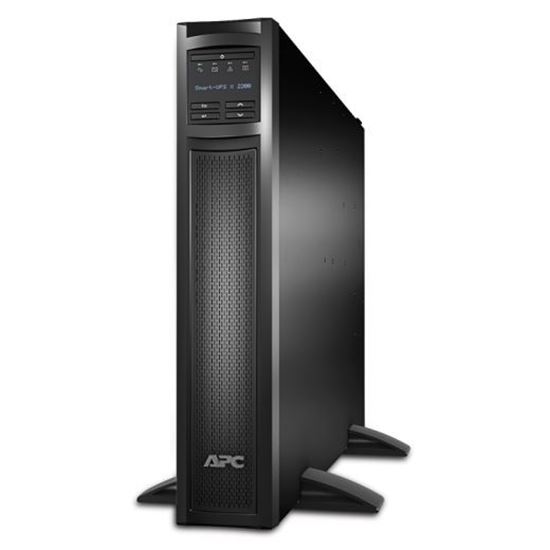

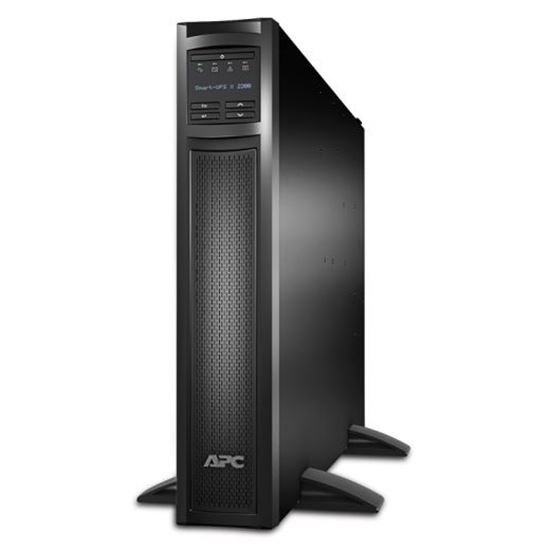

APC Smart-UPS 2200VA (1980W) 5U Rack/Tower. 200V-240V Input/Output.
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SMX2200HV
- MPN: SMX2200HV
APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB,…
APC Smart-UPS 2200VA (1980W) 5U Rack/Tower. 200V-240V Input/Output. 8x IEC C13 Outlets. Internal Battery Backup. LCD Interface. USB, RJ-45, Serial, & SmartSlot Connectivity. Audible Alarm.
Click or hover over image to enlarge
RoHS
Compliant
Spec
Output
Color
Black
Topology
Line interactive
Approvals
CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, RCM, VDE, WEEE
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Net Weight
38.56KG
Cord Length
2meters
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
In Stock
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Smart-UPS 2200VA (1980W) 5U Rack/Tower. 200V-240V Input/Output.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 2.2 kVA
- Output power: 1980 W
- Waveform: Sine
- Input operation voltage (min): 140 V
- Input operation voltage (max): 280 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 208 V
- Output operation voltage (max): 240 V
- Output frequency regulation: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 645 J
- Hold time (min): 2 ms
- Hold time (max): 10 ms
- Efficiency: 98.1%
- Emergency Power Off (EPO): Yes
- Noise level: 55 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 10 AC outlet(s)
- Number of output IEC jumpers: 2
- USB port: Yes
- SmartSlot: Yes
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 702 VAh
- Typical backup time at full load: 9.8 min
+ 39 more — see the Specifications tab.
