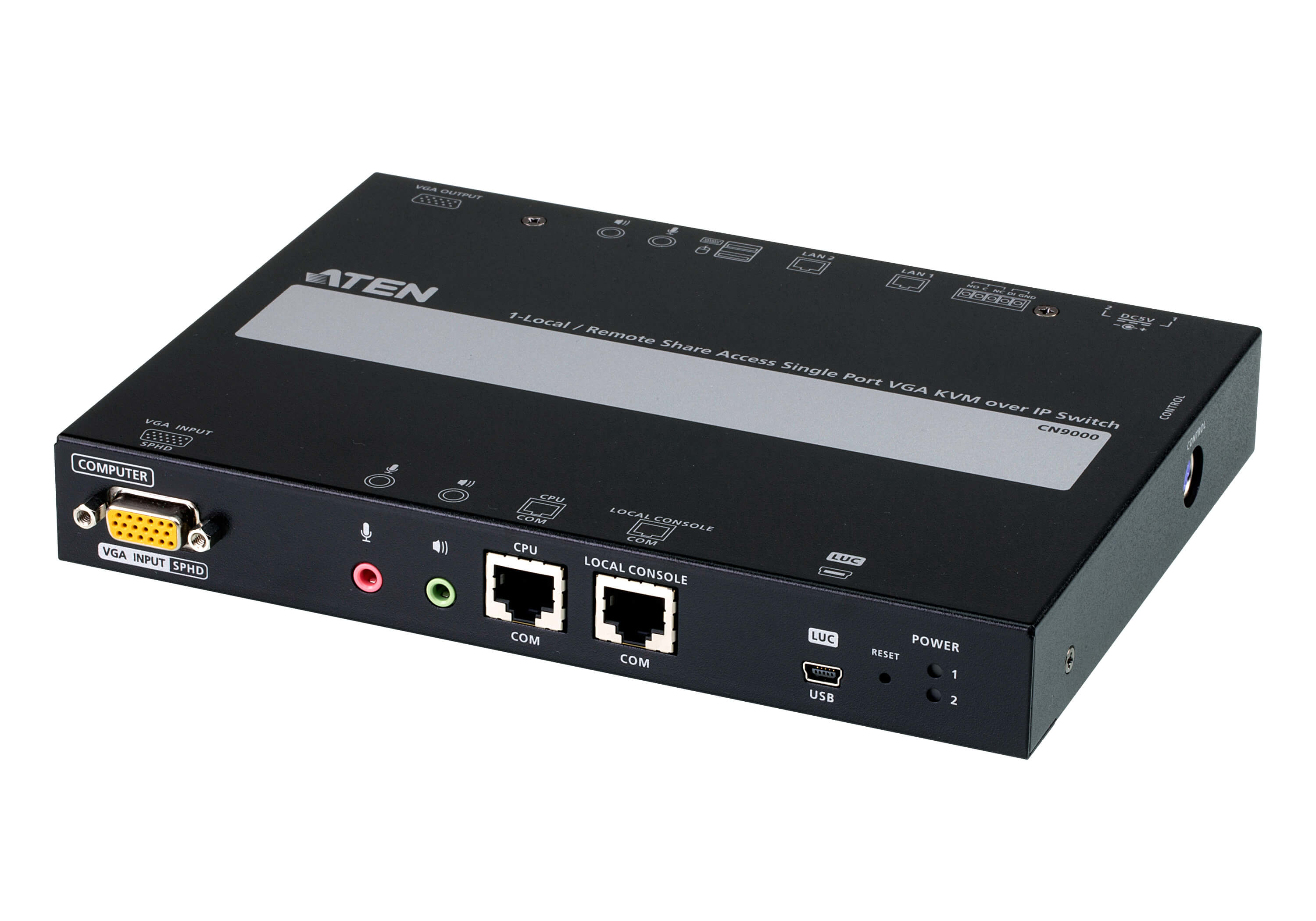

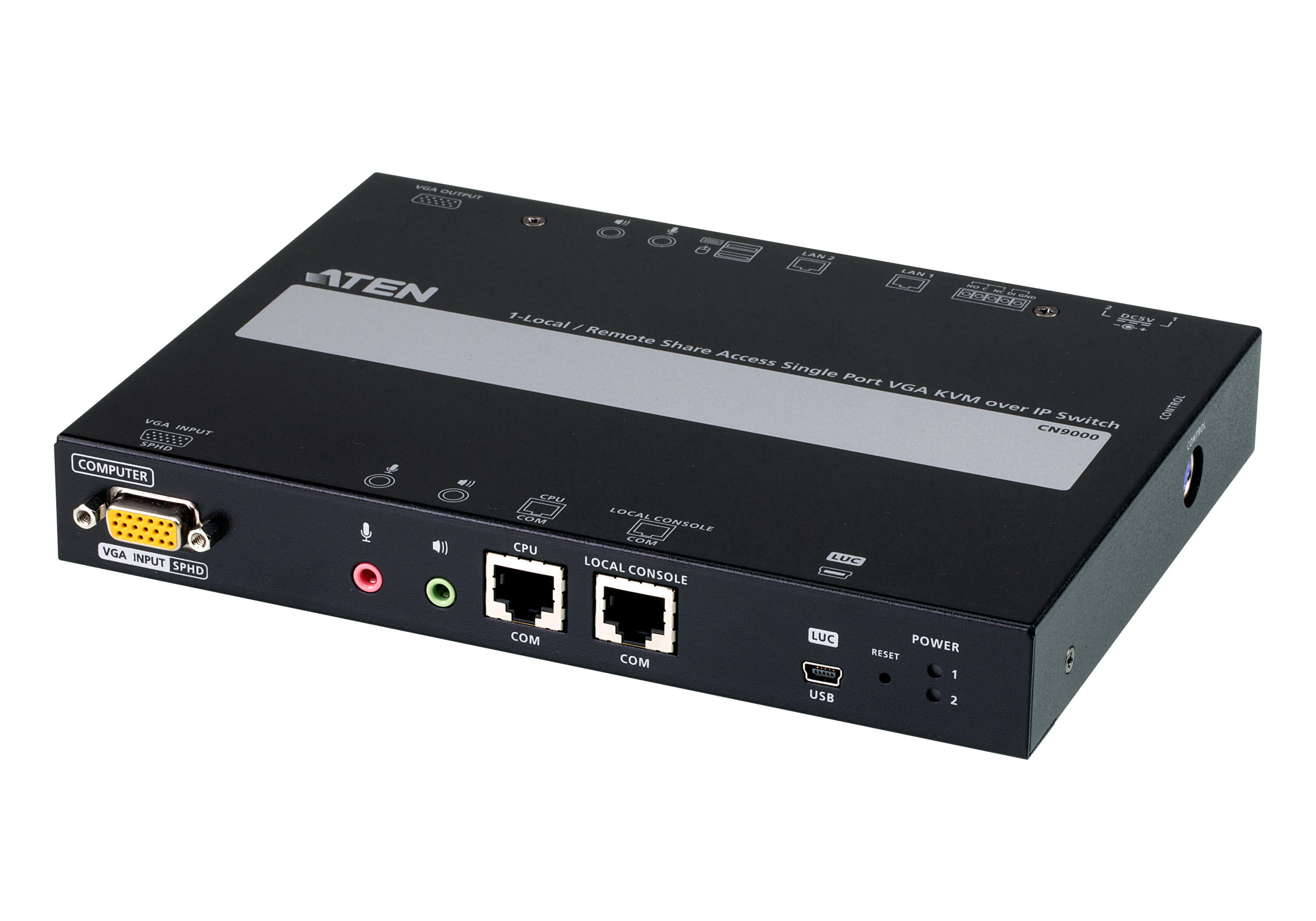

ATEN CN9000-AT-U KVM switch Black
ATEN CN9000-AT-U, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 7.46 W, Black
Click or hover over image to enlarge
Brand:ATEN
MPN:CN9000-AT-U
Part #: CN9000-AT-U
Input voltage
5 V
Power consumption (typical)
7.46 W
Product colour
Black
Housing material
Metal
LED indicators
Power
Built-in display
No
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
4
Comsys Pacific Price
$1,532.99
Save NZ$236.94 off RRP
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

Four payments of NZ$440.74 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 1-LOCAL/REMOTE SHARE ACCESS SINGLE PORT VGA KVM OVER IP
The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with modern-day workstations, but also legacy systems and older generation servers.
For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard and mouse.
To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.
For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.
For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard and mouse.
To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.
For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.
Key features
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: VGA
- VGA (D-Sub) ports quantity: 2
- Console ports: RJ–45
- USB connector type: Mini-USB B, USB Type-A
- Audio connections: Yes
- Headphone outputs: 2
- Number of microphone inputs: 2
- DC-in jack: Yes
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 4
- Security algorithms: 2048-bit RSA, 256-bit AES, RSA, TLS
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Product colour: Black
- Housing material: Metal
- LED indicators: Power
- Built-in display: No
- Input voltage: 5 V
- Power consumption (typical): 7.46 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 200 mm
- Depth: 154.1 mm
- Height: 28.5 mm
- Weight: 860 g
+ 3 more — see the Specifications tab.
Ex GST
NZ$1,532.99
