ATEN 17.3" FULL HD 8 PORT DVI LCD KVM
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: CL6708MW-ATA-AU
- MPN: CL6708MW-ATA-AU

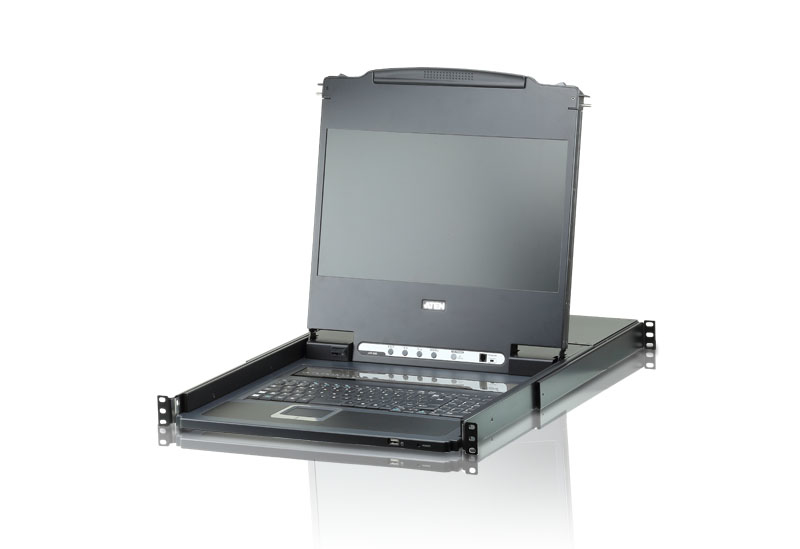

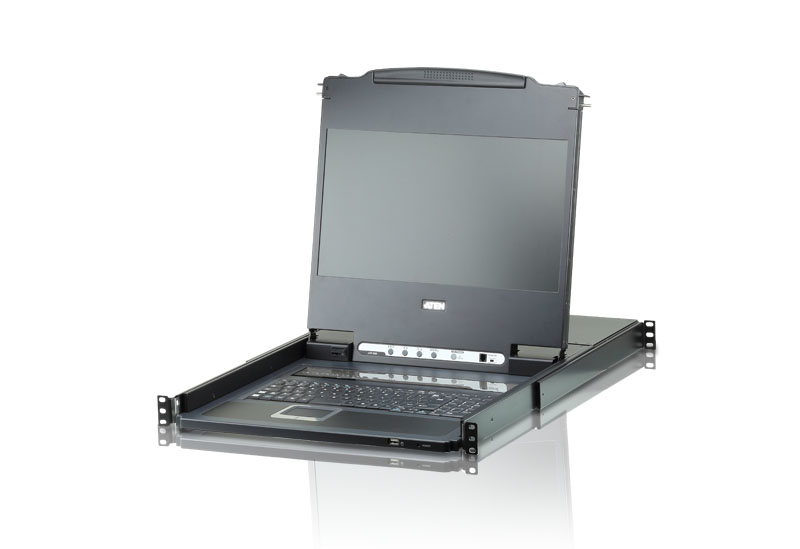

ATEN CL6708MW-ATA-AU KVM switch Rack mounting Black
ATEN CL6708MW-ATA-AU, 1920 x 1200 pixels, WUXGA, Rack mounting, Black
Click or hover over image to enlarge
Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Rack mounting
Yes
Product colour
Black
Housing material
Metal, Plastic
LED indicators
Yes
Built-in display
Yes
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 17.3" FULL HD 8 PORT DVI LCD KVM
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Key features
- Number of computers controlled: 8
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DVI-I
- DVI-I ports quantity: 8
- USB 2.0 Type-B ports quantity: 8
- Console ports: 3.5mm headphone, DVI-I, USB A
- Console USB ports quantity: 2
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Scan interval: 1,255 s
- Rack mounting: Yes
- Product colour: Black
- Housing material: Metal, Plastic
- LED indicators: Yes
- Built-in display: Yes
- Display: LCD
- Display diagonal: 43.9 cm (17.3")
- On Screen Display (OSD): Yes
- Power source: AC
- Input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 689.2 mm
- Depth: 480 mm
- Height: 44 mm
- Weight: 13.5 kg
+ 6 more — see the Specifications tab.
