ATEN 2 PORT USB & PS/2 SWTCH
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: CS82U-AT
- MPN: CS82U-AT

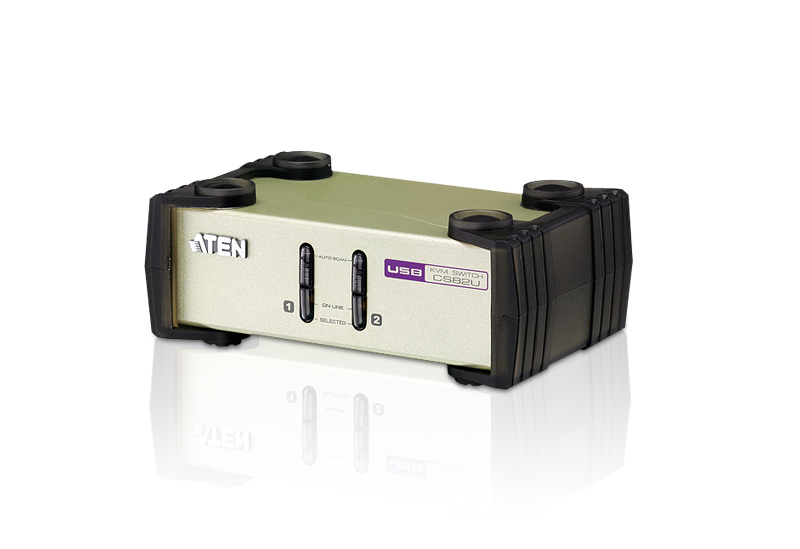

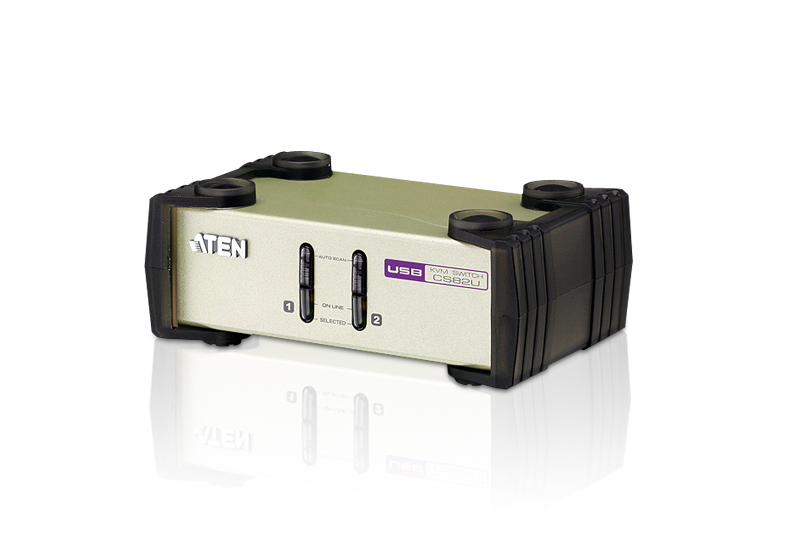

ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included), 2048 x 1536 pixels, QXGA, 0.72 W, Light grey
Click or hover over image to enlarge
Power source
DC
Input voltage
5 V
Power consumption (typical)
0.72 W
Rack mounting
No
Product colour
Light grey
Housing material
Metal
LED indicators
Yes
Push button
Yes
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 2 PORT USB & PS/2 SWTCH
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: VGA
- VGA (D-Sub) ports quantity: 2
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- DC-in jack: Yes
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Video bandwidth: 60 Hz
- Scan interval: 3,5,10,20 s
- DDC2B support: Yes
- Rack mounting: No
- Product colour: Light grey
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 0.72 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 88 mm
- Depth: 140 mm
- Height: 55.5 mm
+ 14 more — see the Specifications tab.
