ATEN 20M True 4K HDMI 2.0 Active Optical Cable (True 4K@20m)

ATEN 20M True 4K HDMI 2.0 Active Optical Cable (True 4K@20m), 20 m, HDMI Type A (Standard), HDMI Type A (Standard), 3D, 18 Gbit/s, Black

ATEN 20M TRUE 4K HDMI 2.0 ACTIVE OPTICAL CABLE

Click or hover over image to enlarge

Brand:ATEN
MPN:VE781020-AT

Part #: VE781020-AT

Cable length

20 m

Connector 1

HDMI Type A (Standard)

Connector 2

HDMI Type A (Standard)

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Product colour

Black

Returns & Warranty

Comsys Pacific Price

$248.99

Save NZ$37.37 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Need help? Call 0800 664 554
Add To CompareStock Alerts
Afterpay

Four payments of NZ$71.59 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 20M TRUE 4K HDMI 2.0 ACTIVE OPTICAL CABLE

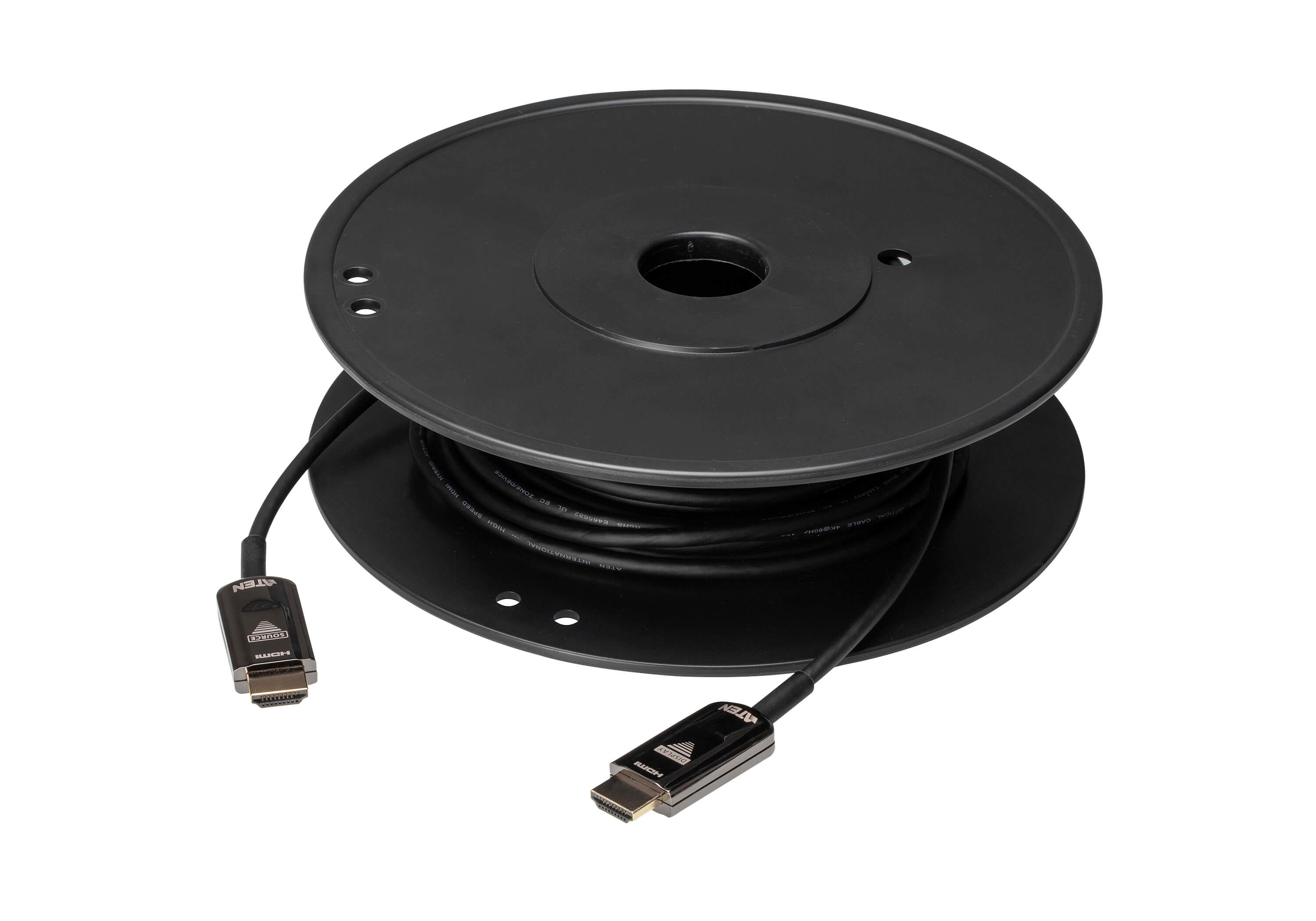

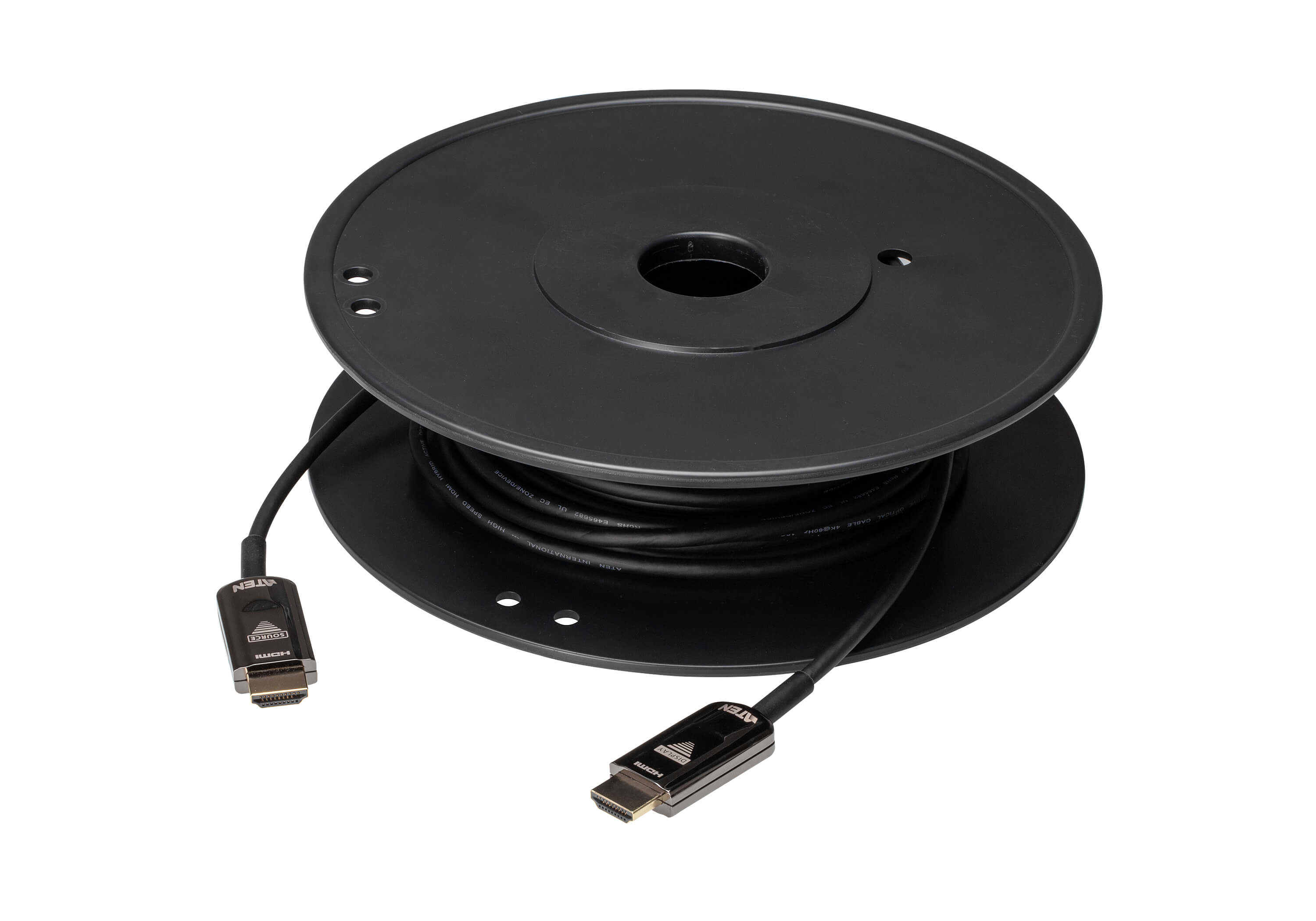

ATEN VE781020 True 4K HDMI 2.0 Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 20m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI 2.0 specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781020 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

Key features

  • Cable length: 20 m
  • Connector 1: HDMI Type A (Standard)
  • Connector 2: HDMI Type A (Standard)
  • Connector 1 gender: Male
  • Connector 2 gender: Male
  • Connector 1 form factor: Straight
  • Connector 2 form factor: Straight
  • Product colour: Black
  • HDMI version: 2.0
  • 3D: Yes
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
  • Audio Return Channel (ARC): Yes
  • HDCP: Yes
  • HDCP version: 2.0
  • Data transfer rate: 18 Gbit/s
  • Bandwidth: 600 MHz
  • Maximum refresh rate: 60 Hz
  • Connector contacts plating: Gold
  • Cable jacket material: Polyvinyl chloride (PVC)
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Compliance certificates: RoHS
  • Certification: CE / FCC/ REACH / UL VW-1/ EMC Class-A / Class-B
  • Cable diameter: 4.5 mm
  • Weight: 650 g
  • Quantity per pack: 1 pc(s)
  • Harmonized System (HS) code: 84733080
