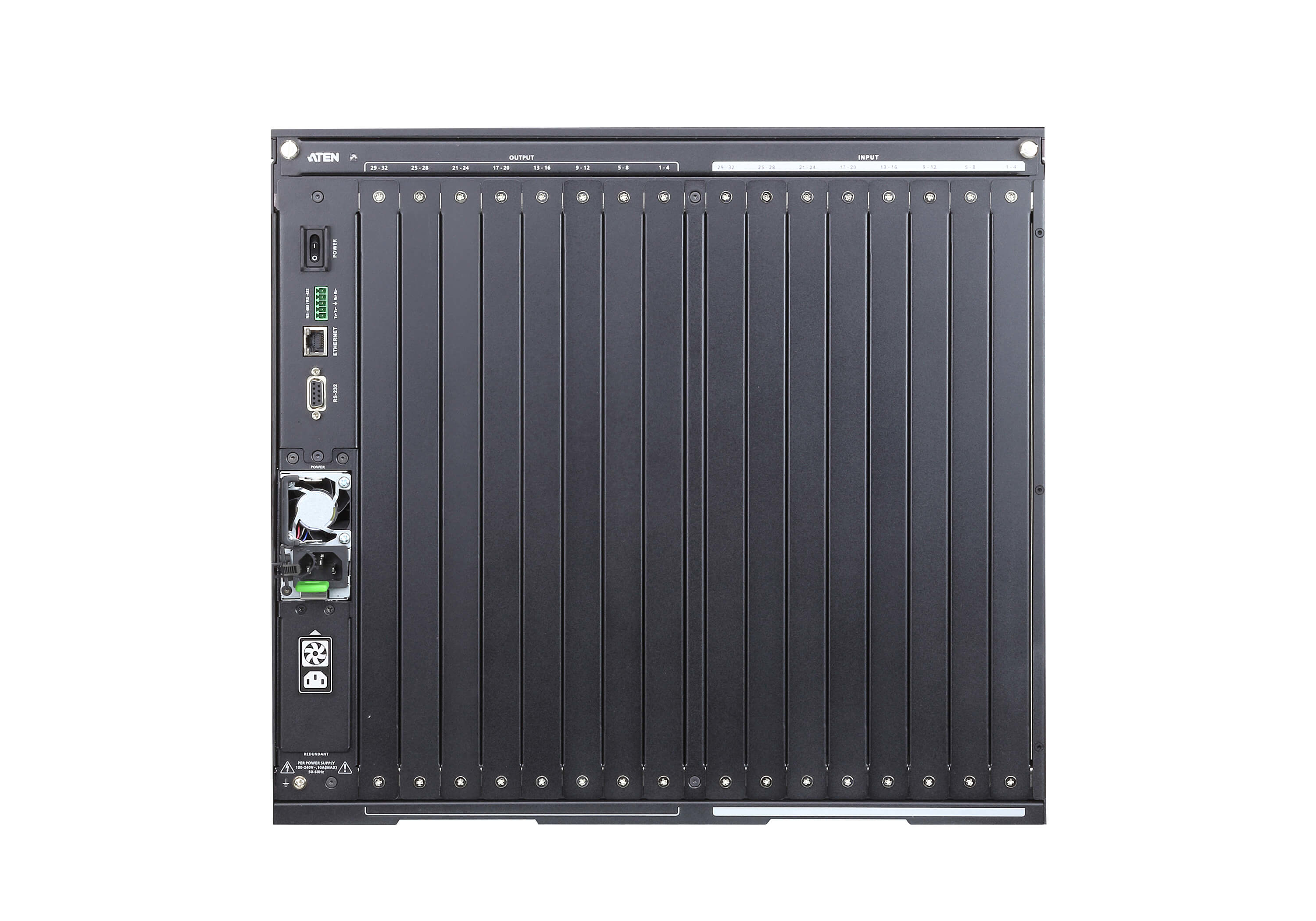

ATEN VM3250-AT-U matrix switcher Modular AV matrix switchers…

ATEN VM3250-AT-U, Modular AV matrix switchers, 22.5 Gbit/s, 4096 x 2160 pixels, 15.2 Gbit/s, Black, Metal

ATEN 32X32 TRUE 4K MODULAR DIGITAL MATRIX WITH SCALER

Click or hover over image to enlarge

Brand:ATEN
MPN:VM3250-AT-U

Part #: VM3250-AT-U

Power consumption (max)

239 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1 A

Housing colour

Black

Housing material

Metal

Rack mounting

Yes

Rack capacity

9U

Returns & Warranty

Price on Application

Contact us for pricing

Sales will confirm seat count, term, and volume pricing before order.

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To CompareStock Alerts
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 32X32 TRUE 4K MODULAR DIGITAL MATRIX WITH SCALER

The VM3250 Modular Matrix Switch Gen. 2 offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3250 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers from the front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.
1x VM3250 32 x 32 Modular Matrix Switch
1x Power Module
1x Terminal Block Connector
1x Power Cord
1x User Instructions

Key features

  • Product type: Modular AV matrix switchers
  • Data transfer rate: 22.5 Gbit/s
  • Maximum resolution: 4096 x 2160 pixels
  • Bandwidth: 15.2 Gbit/s
  • Extended display identification data (EDID): Yes
  • Housing colour: Black
  • Housing material: Metal
  • Rack mounting: Yes
  • Rack capacity: 9U
  • Built-in display: Yes
  • RJ-45 input ports: 1
  • RS-232 ports: 1
  • RS-422 ports: 1
  • Power consumption (max): 239 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 471.9 mm
  • Depth: 482 mm
  • Height: 399 mm
  • Weight: 19.2 kg
  • Package width: 518 mm
  • Package depth: 579 mm
  • Package height: 526 mm
  • Package weight: 22.2 kg
  • Cables included: AC
  • Quick start guide: Yes
