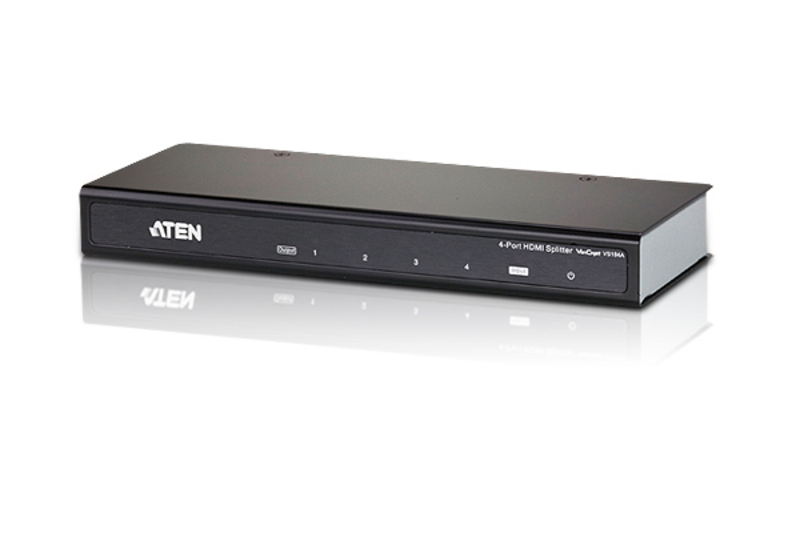

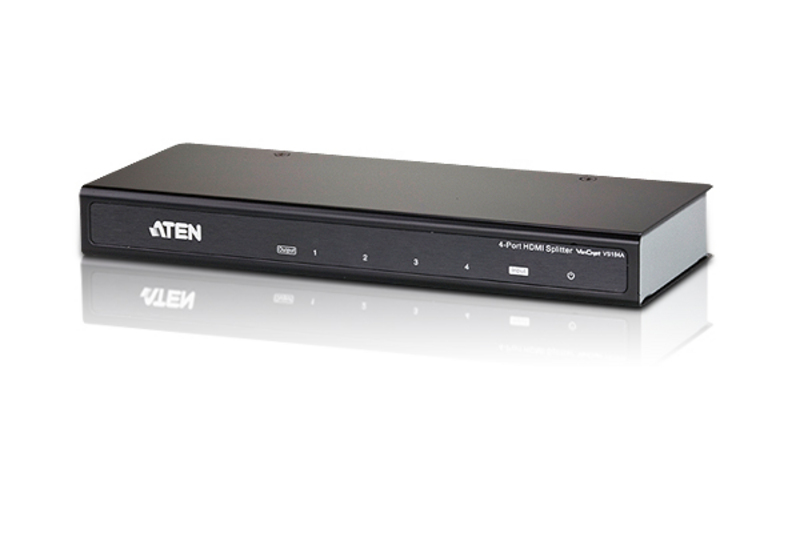

ATEN 4-PORT 4K HDMI SPLITTER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VS184A-AT-U
- MPN: VS184A-AT-U
ATEN VS184A-AT-U video splitter HDMI 4x HDMI
ATEN VS184A-AT-U, HDMI, 4x HDMI, 4096 x 2160 pixels, Black, Metal, 4K Ultra HD
Click or hover over image to enlarge
Output voltage
5.3 V
Power consumption (typical)
6.02 W
Product colour
Black
Housing material
Metal
Maximum resolution
4096 x 2160 pixels
HD type
4K Ultra HD
3D
Yes
Maximum operating distance
15 m
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
In Stock
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 4-PORT 4K HDMI SPLITTER
The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Key features
- Video port type: HDMI
- Video out: 4x HDMI
- Video ports quantity: 5
- DC-in jack: Yes
- Product colour: Black
- Housing material: Metal
- Maximum resolution: 4096 x 2160 pixels
- HD type: 4K Ultra HD
- 3D: Yes
- Maximum operating distance: 15 m
- Maximum refresh rate: 60 Hz
- Bandwidth: 340 MHz
- HDCP version: 1.4
- HDCP: Yes
- Output voltage: 5.3 V
- Power consumption (typical): 6.02 W
- Width: 200 mm
- Depth: 80 mm
- Height: 25 mm
- Weight: 470 g
- Quantity per pack: 1 pc(s)
- Manual: Yes
- Cables included: HDMI
- AC adapter included: Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Price on Application
