ATEN 4 PORT HDMI TRUE 4K INPUT BOARD FOR VM3250
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VM7824-AT
- MPN: VM7824-AT

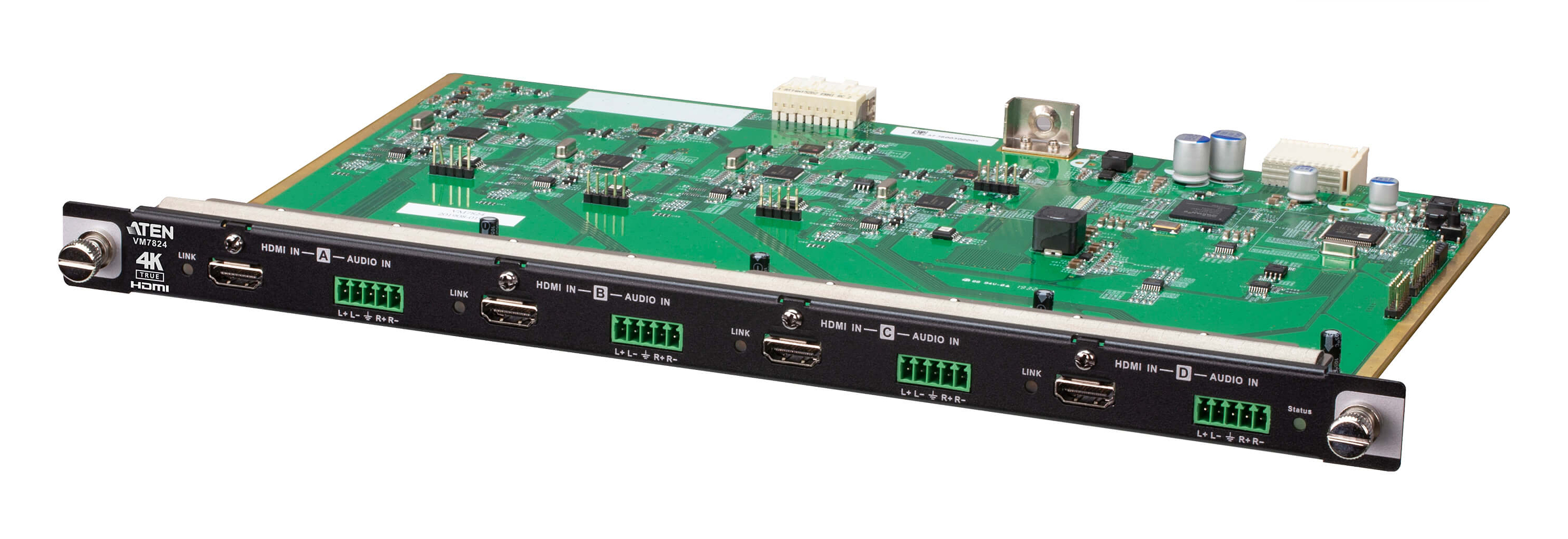

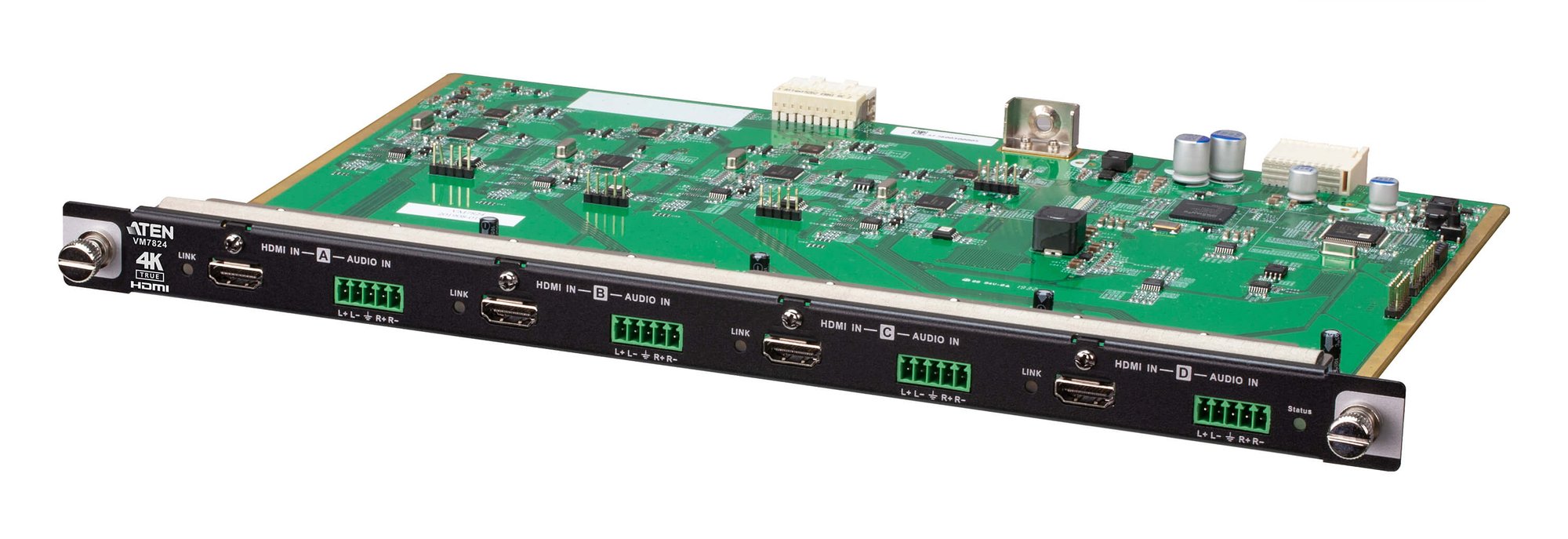

ATEN 4-Port True 4K HDMI Input Board
ATEN 4-Port True 4K HDMI Input Board, Input board, Black, Green, Metal, Aten VM3250, VM0404HB, VM0808HB, 8.95 W, 238 mm
Click or hover over image to enlarge
Power consumption (typical)
8.95 W
Product type
Input board
Product colour
Black, Green
Material
Metal
Compatibility
Aten VM3250, VM0404HB, VM0808HB
Products per master (outer) case
2 pc(s)
Master (outer) case gross weight
2.3 kg
Master (outer) case length
440 mm
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 4 PORT HDMI TRUE 4K INPUT BOARD FOR VM3250
All of ATEN’s VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
Key features
- Product type: Input board
- Product colour: Black, Green
- Material: Metal
- Compatibility: Aten VM3250, VM0404HB, VM0808HB
- HDMI ports quantity: 4
- Power consumption (typical): 8.95 W
- Width: 238 mm
- Depth: 352 mm
- Height: 233 mm
- Weight: 550 g
- Package width: 285 mm
- Package depth: 426 mm
- Package height: 57 mm
- Package weight: 906 g
- Quick start guide: Yes
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 0 - 80%
- Products per master (outer) case: 2 pc(s)
- Master (outer) case gross weight: 2.3 kg
- Master (outer) case length: 440 mm
- Master (outer) case width: 300 mm
- Master (outer) case height: 138 mm
- Master (outer) case net weight: 1.1 kg
