ATEN 8 DIGITAL I/O EXPANSION BOX

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VK258-AT
  • MPN: VK258-AT

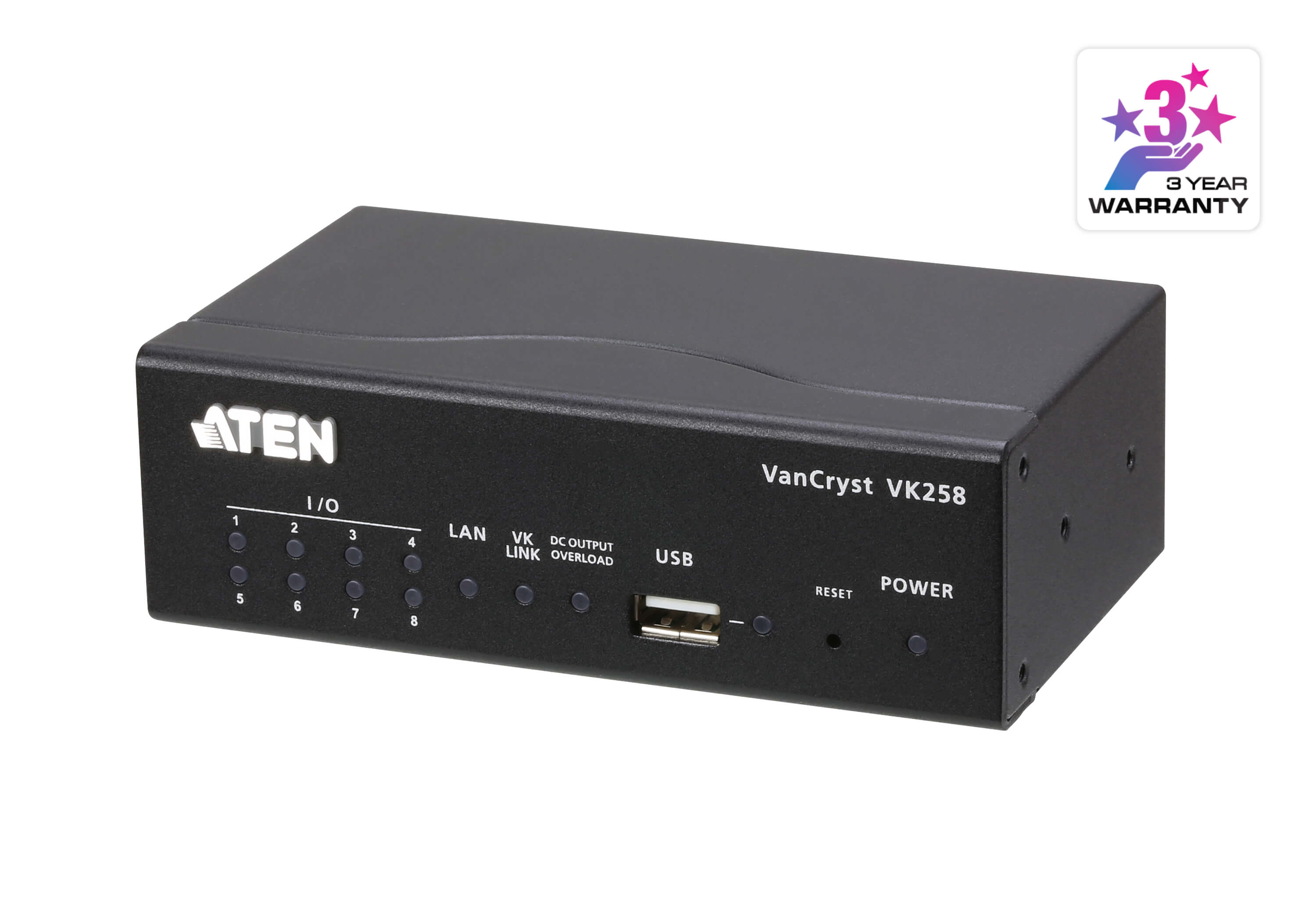

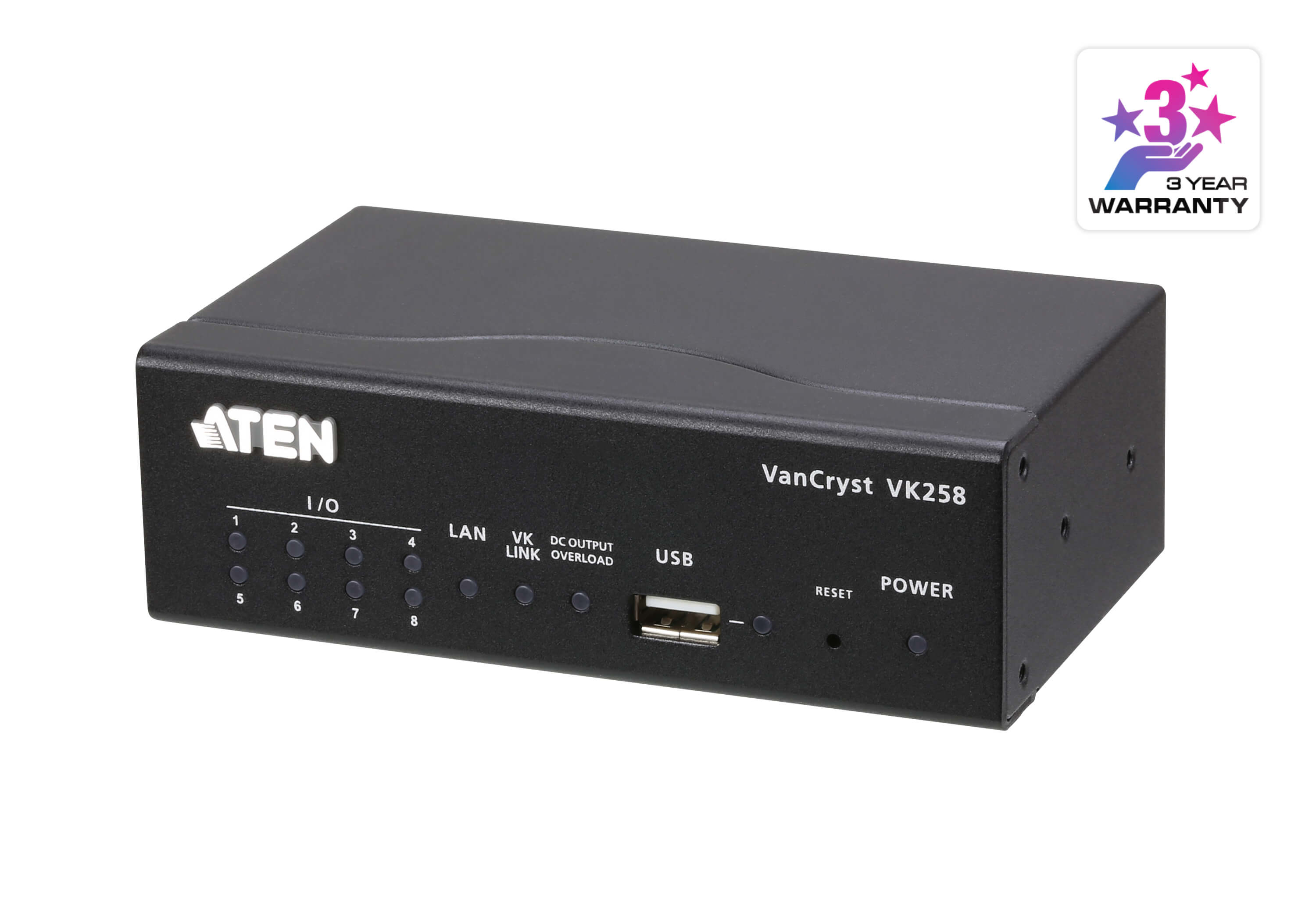

ATEN 8-Channel Digital I/O Expansion Box

ATEN 8-Channel Digital I/O Expansion Box, Digital, Input/output, 8 channels, 8 channels, 8 channels, ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

ATEN 8 DIGITAL I/O EXPANSION BOX — ATEN — NETWORKING

Click or hover over image to enlarge

Brand:ATEN
MPN:VK258-AT

SKU: CNZ-DD-044659

Search this part on Google

Power consumption

300 mA

Power consumption note

DC5V:2.2W:36BTU, POE:2.75W:39BTU

Module type

Digital

Signal direction

Input/output

Channels quantity

8 channels

Digital input channels quantity

8 channels

Digital output channels quantity

8 channels

Ethernet LAN (RJ-45) ports

1

Returns & Warranty

Price on Application

Contact us for pricing

Sales will confirm current pricing and availability before order.

Available On Order

Fiji & Pacific delivery
1

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 8 DIGITAL I/O EXPANSION BOX

The VK258 8-Channel Digital I/O Expansion Box provides an additional eight channels of digital input/output for a flexible expansion of the ATEN Control System. This allows users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of the Ethernet-based connection, the expansion box easily connects to the ATEN Controller via a LAN connection from different locations across a network.
1x VK258 8-Channel Digital I/O Expansion Box
1x Rack Mount Kit
9xTerminal Blocks
1x User Instructions

Key features

  • Module type: Digital
  • Signal direction: Input/output
  • Channels quantity: 8 channels
  • Digital input channels quantity: 8 channels
  • Digital output channels quantity: 8 channels
  • Ethernet LAN (RJ-45) ports: 1
  • Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
  • Nominal output voltage: 12 V
  • Input impedance: 0.3 Ω
  • Product colour: Black
  • Power consumption: 300 mA
  • Power consumption note: DC5V:2.2W:36BTU, POE:2.75W:39BTU
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Relative humidity: 0 - 80%
  • Width: 75.8 mm
  • Depth: 130 mm
  • Height: 42 mm
  • Weight: 550 g
  • Package width: 59 mm
  • Package depth: 239 mm
  • Package height: 160 mm
  • Package weight: 708 g
  • Products per master (outer) case: 5 pc(s)
  • Master (outer) case width: 250 mm
  • Master (outer) case length: 325 mm
  • Master (outer) case height: 175 mm
  • Master (outer) case gross weight: 3.89 kg
  • Master (outer) case net weight: 2.75 kg
