ATEN DVI HDBASET MINI KVM EXTENDER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: CE611-AT-U
- MPN: CE611-AT-U

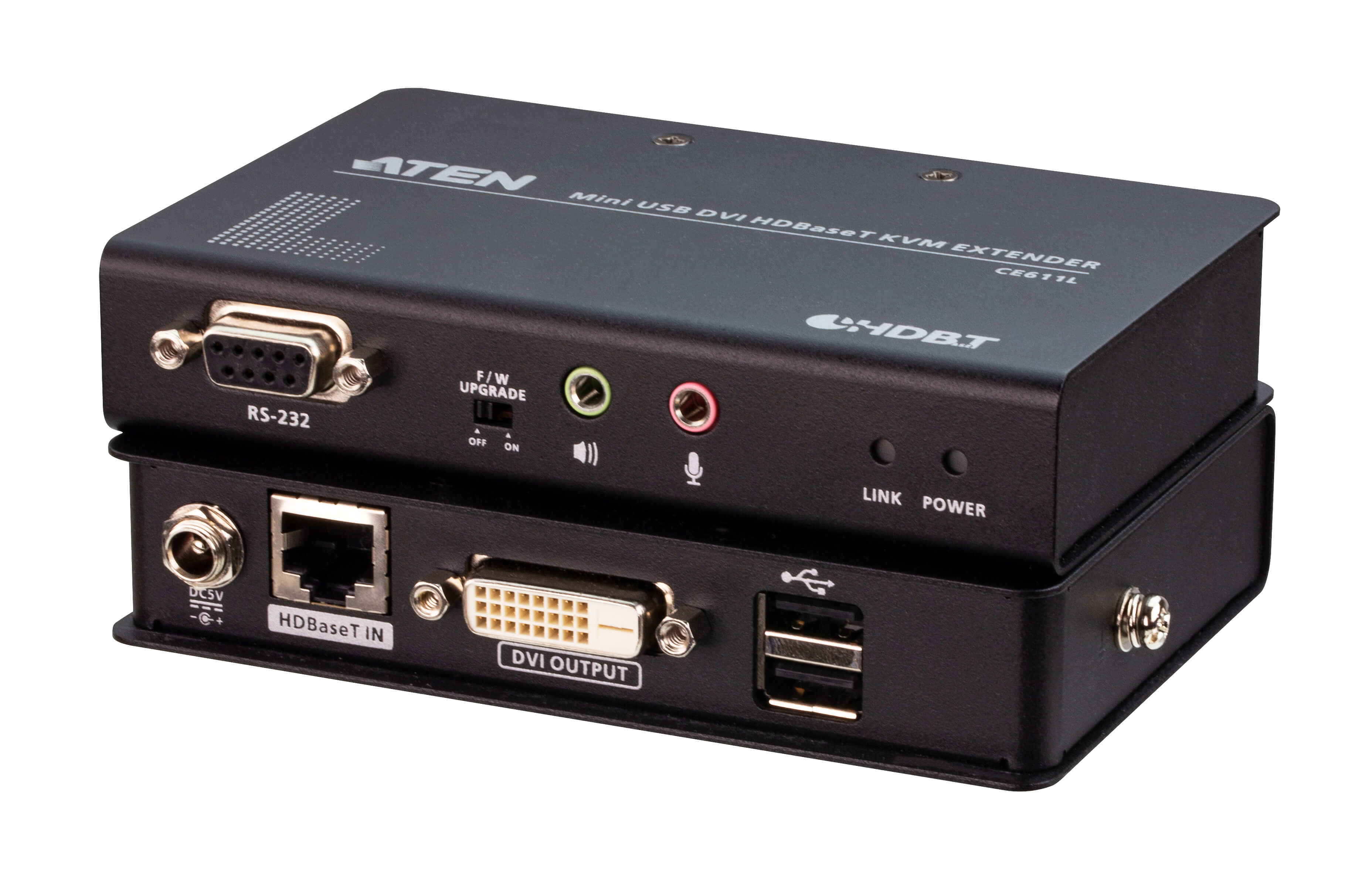

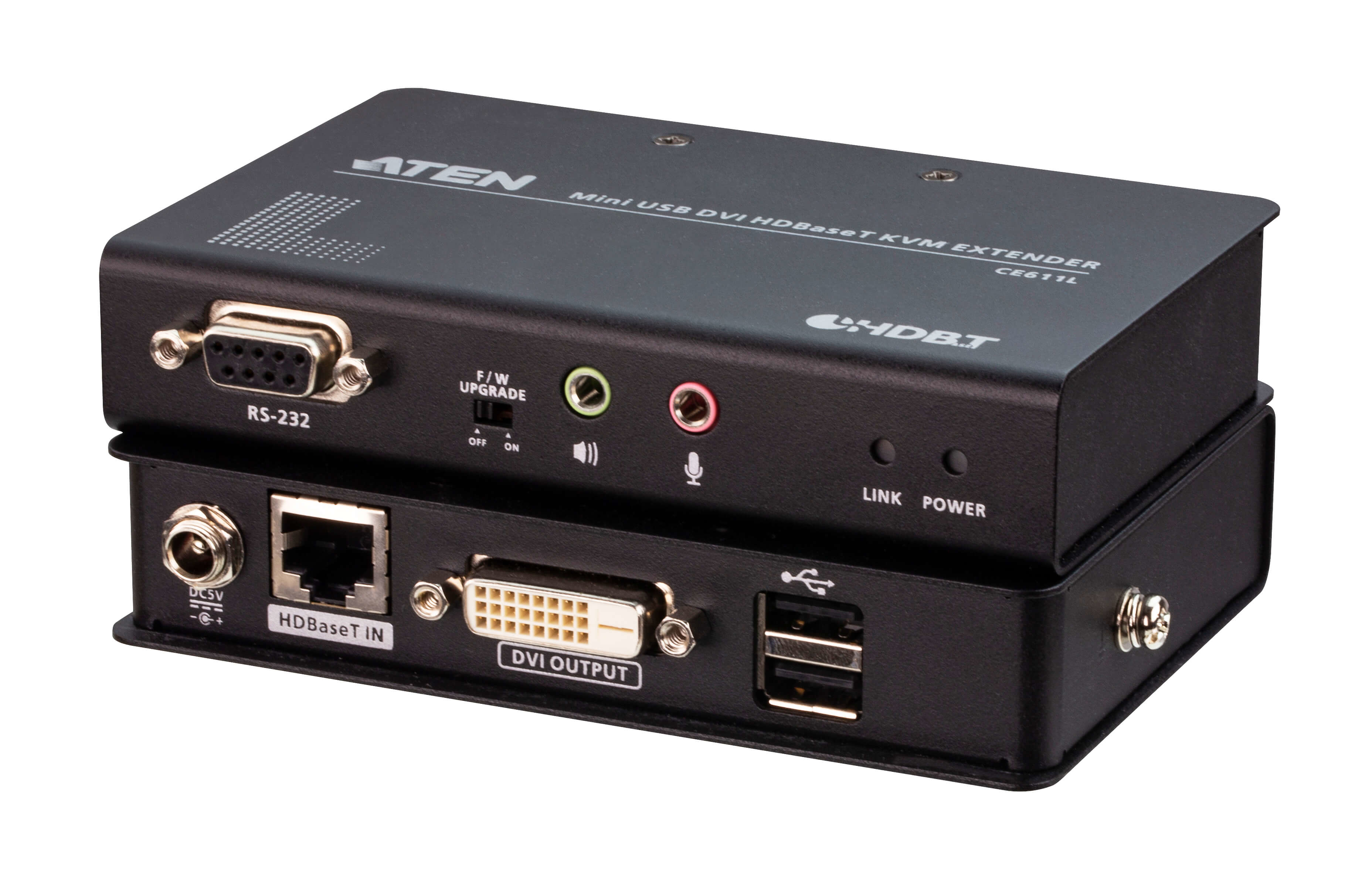

ATEN Mini USB DVI HDBaseT KVM Extender
ATEN Mini USB DVI HDBaseT KVM Extender, Transmitter & receiver, Wired, 100 m, Cat6, Cat6a, 1920 x 1200 pixels, 1920x1200 1920x1080 1600x1200
Click or hover over image to enlarge
Power consumption (transmitter) (max)
2.494 W
Power consumption (receiver) (max)
4.816 W
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
100 m
Cable types supported
Cat6, Cat6a
Maximum digital resolution
1920 x 1200 pixels
Supported resolutions
1920x1200 1920x1080 1600x1200
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN DVI HDBASET MINI KVM EXTENDER
1x CE611L Mini USB DVI HDBaseT KVM Extender (Local Unit)
1x CE611R Mini USB DVI HDBaseT KVM Extender (Remote Unit)
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
Key features
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Maximum transfer distance: 100 m
- Cable types supported: Cat6, Cat6a
- Maximum digital resolution: 1920 x 1200 pixels
- Supported resolutions: 1920x1200 1920x1080 1600x1200
- Product colour: Black
- Material: Metal
- LED indicators: Yes
- Certification: RoHS
- Transmitter video port type: DVI-D
- Transmitter local keyboard/mouse port type: USB
- RJ-45 ports quantity (transmitter): 1
- Receiver local video port type: DVI-D
- Receiver local keyboard/mouse port type: USB
- RJ-45 ports quantity (receiver): 1
- USB 2.0 ports quantity: 2
- USB data transfer rates: 480 Mbit/s
- RS-232 ports: 2
- RJ-45 ports quantity: 2
- PC Audio in: Yes
- PC Audio out: Yes
- Power consumption (transmitter) (max): 2.494 W
- Power consumption (receiver) (max): 4.816 W
- Transmitter width: 12.8 cm
- Transmitter depth: 8.69 cm
- Transmitter height: 2.5 cm
- Transmitter weight: 350 g
- Receiver width: 12.8 cm
- Receiver depth: 8.69 cm
+ 21 more — see the Specifications tab.
Price on Application
