ATEN HDMI HDBASET EXTENDER WITH EXTREMEUSB
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE813A-AT-U
- MPN: VE813A-AT-U

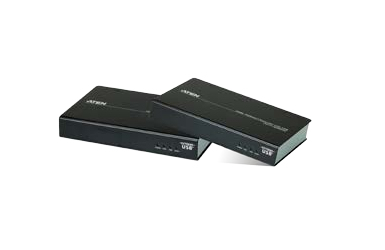

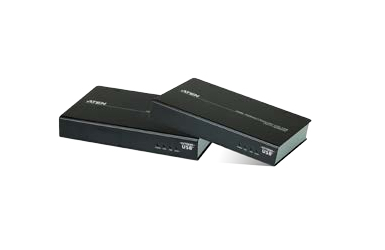

ATEN VE813A-AT-U AV extender AV transmitter & receiver Black
ATEN VE813A-AT-U, AV transmitter & receiver, 100 m, Wired, 3D, Black, HDCP
Click or hover over image to enlarge
Operating voltage (transmitter)
5 V
Operating voltage (receiver)
5 V
Power consumption (typical)
5.75 W
Power consumption (receiver) (max)
13.25 W
Type
AV transmitter & receiver
Cable types supported
Cat5, Cat6, Cat6a, Cat7
Maximum transfer distance
100 m
LED indicators
Yes
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN HDMI HDBASET EXTENDER WITH EXTREMEUSB
Key features
- Type: AV transmitter & receiver
- Cable types supported: Cat5, Cat6, Cat6a, Cat7
- Maximum transfer distance: 100 m
- LED indicators: Yes
- Supported video modes: 1080p, 2160p
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Consumer Electronics Control (CEC) support: Yes
- Impedance: 100 Ω
- Product colour: Black
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- Number of HDMI outputs: 1
- USB ports quantity: 4
- USB version: 2.0
- USB connector type: USB Type-A, USB Type-B
- DC-in jack: Yes
- Operating voltage (transmitter): 5 V
- Operating voltage (receiver): 5 V
- Power consumption (typical): 5.75 W
- Power consumption (receiver) (max): 13.25 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 117.9 mm
- Depth: 182 mm
+ 5 more — see the Specifications tab.
