ATEN HDMI HDBASET TRANSMITTER WITH POH
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE1812T-AT-U
- MPN: VE1812T-AT-U
ATEN VE1812T-AT-U AV extender AV transmitter Black
ATEN VE1812T-AT-U, 4096 x 2160 pixels, AV transmitter, 150 m, Wired, 3D, HDCP
Click or hover over image to enlarge
Power source type
DC
Operating voltage (transmitter)
5 V
Power consumption (transmitter) (max)
4.3 W
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
150 m
LED indicators
Yes
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN HDMI HDBASET TRANSMITTER WITH POH

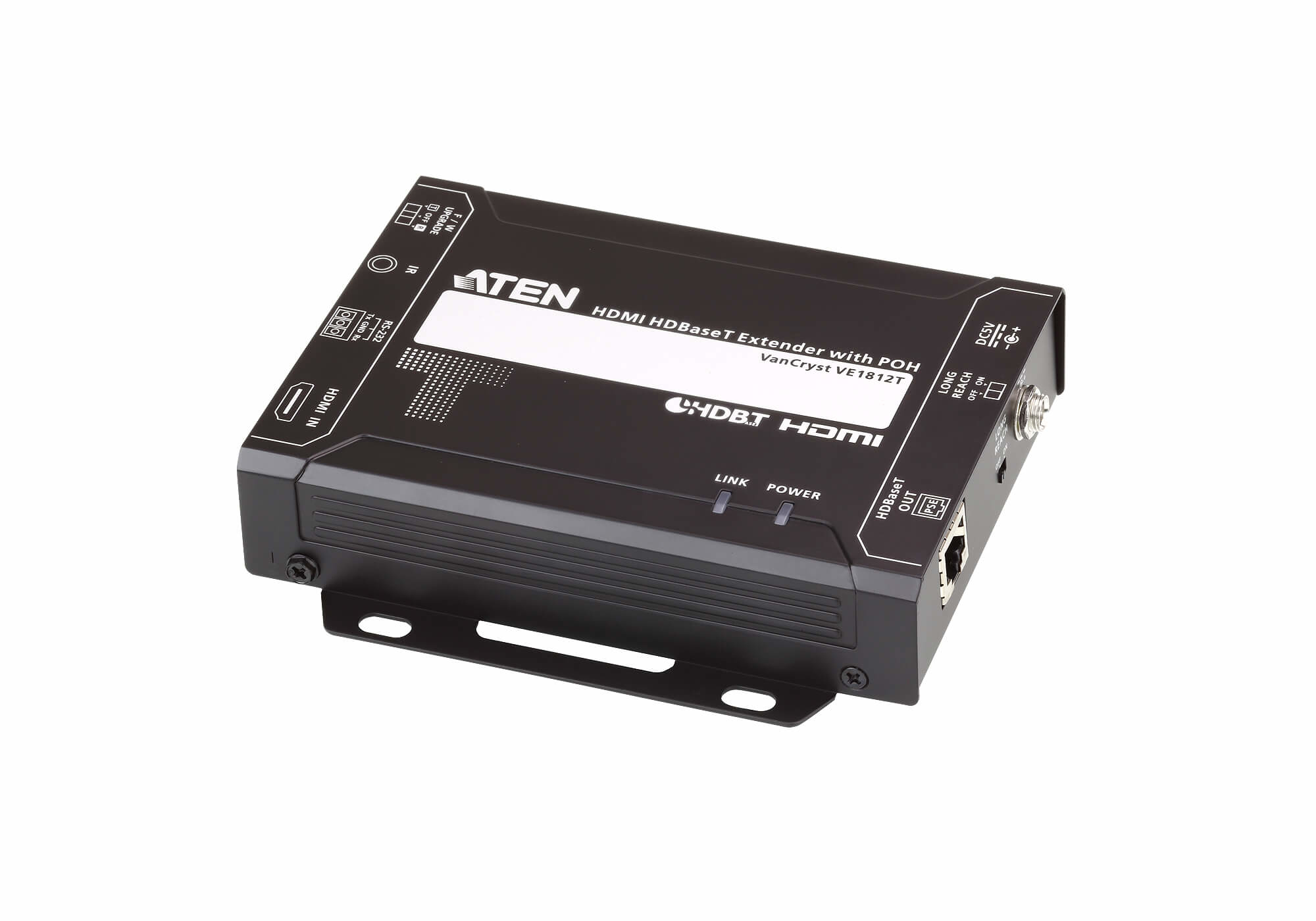

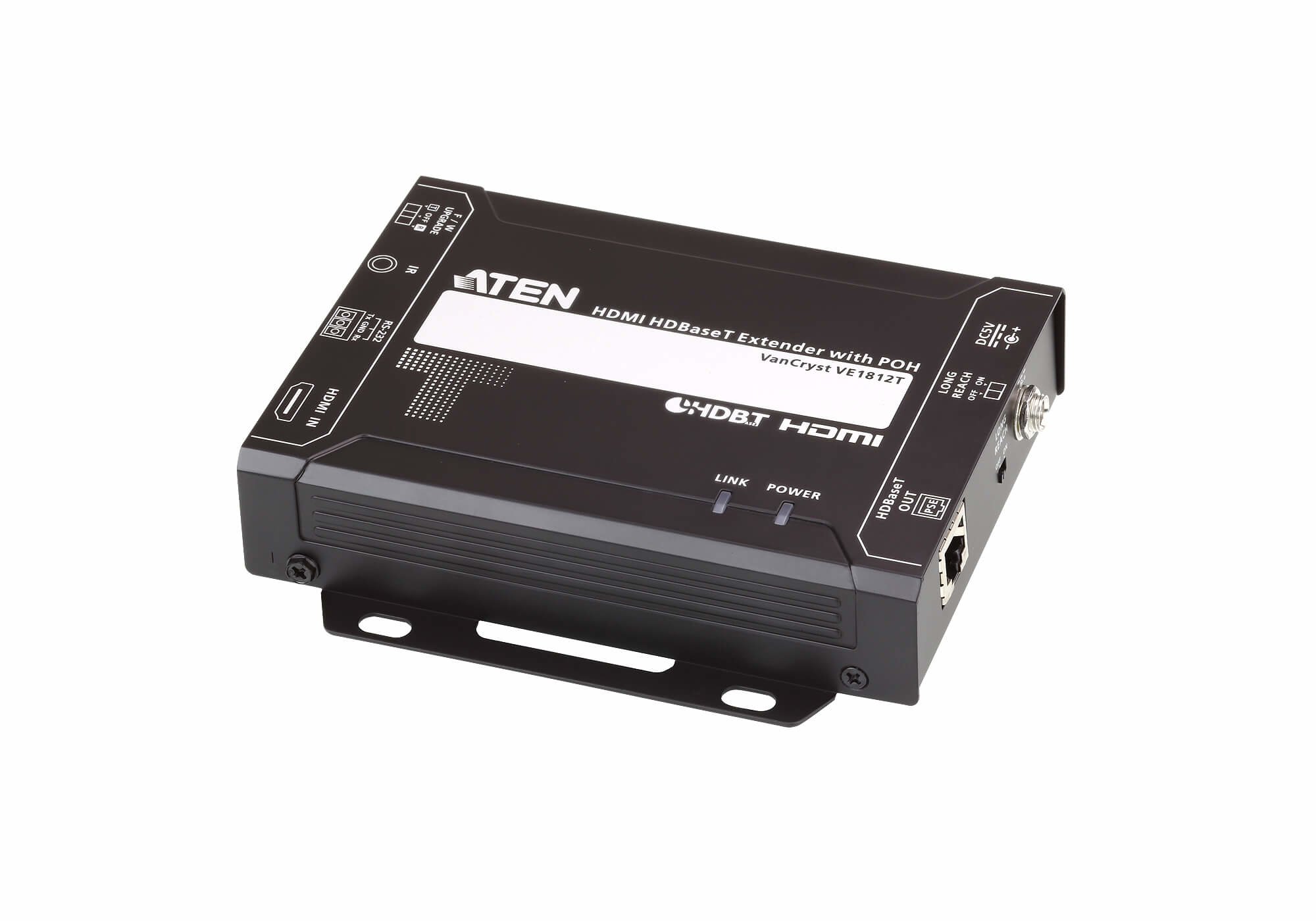

The VE1812T HDMI HDBaseT Transmitter with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Key features
- Type: AV transmitter
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 150 m
- LED indicators: Yes
- Supported video modes: 1080p
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Consumer Electronics Control (CEC) support: Yes
- Impedance: 100 Ω
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 output ports: 1
- HDMI in: 1
- RS-232 input ports: 1
- Video in: 1
- Remote (IR) input: 1
- DC-in jack: Yes
- Power source type: DC
- Operating voltage (transmitter): 5 V
- Power consumption (transmitter) (max): 4.3 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Transmitter dimensions (WxDxH): 101 x 136 x 29 mm
+ 5 more — see the Specifications tab.
