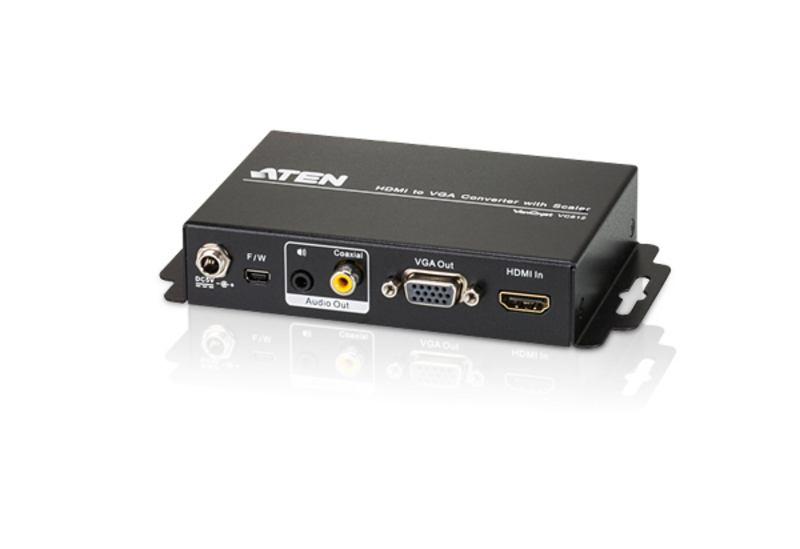

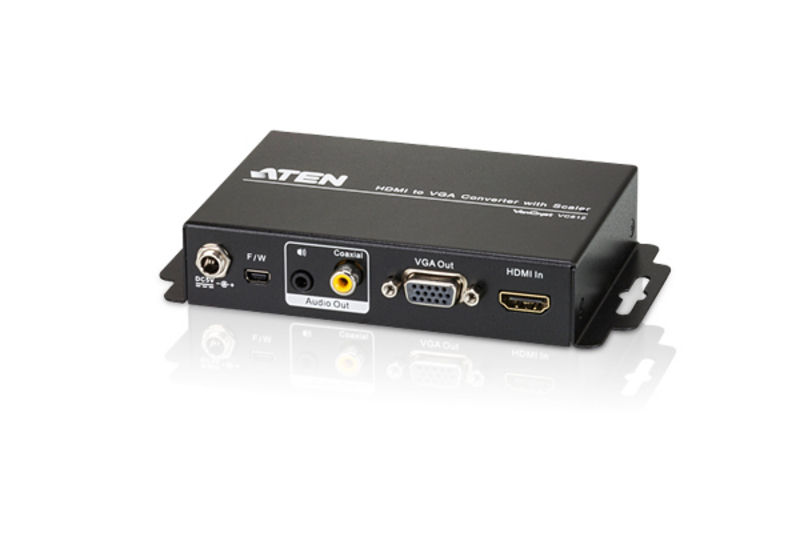

ATEN HDMI TO VGA/AUDIO CONVERTER WITH SCALER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VC812-AT-U
- MPN: VC812-AT-U
ATEN HDMI to VGA converter with Scaler
ATEN HDMI to VGA converter with Scaler, Scaler video converter, Black, Metal, 1920 x 1200 pixels, 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200, 480i, 480p, 576i, 576p, 1080i, 1080p
Click or hover over image to enlarge
USB powered
No
Input voltage
5 V
Maximum video resolution
1920 x 1200 pixels
Video resolutions
800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200
Supported video modes
480i, 480p, 576i, 576p, 1080i, 1080p
Converter type
Scaler video converter
On Screen Display (OSD)
Yes
LED indicators
Yes
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN HDMI TO VGA/AUDIO CONVERTER WITH SCALER
1 x VC812 HDMI to VGA Converter with Scaler
1 x 0AD6-1F05-26EG Power Adapter
1 x Software CD
1 x User Instructions
Key features
- Converter type: Scaler video converter
- On Screen Display (OSD): Yes
- LED indicators: Yes
- Product colour: Black
- Housing material: Metal
- Maximum video resolution: 1920 x 1200 pixels
- Video resolutions: 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200
- Supported video modes: 480i, 480p, 576i, 576p, 1080i, 1080p
- Host interface: HDMI
- Output interface: VGA
- VGA (D-Sub) output ports: 1
- 3.5 mm connector: Yes
- DC-in jack: Yes
- USB powered: No
- Input voltage: 5 V
- Compliance certificates: RoHS
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
- Width: 83 mm
- Depth: 110 mm
- Height: 28 mm
- Weight: 400 g
- AC adapter included: Yes
- Manual: Yes
- Quick installation guide: Yes
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 625 g
+ 7 more — see the Specifications tab.
