ATEN MINI USB VGA CAT 5 KVM EXTENDER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: CE100-AT-U
- MPN: CE100-AT-U

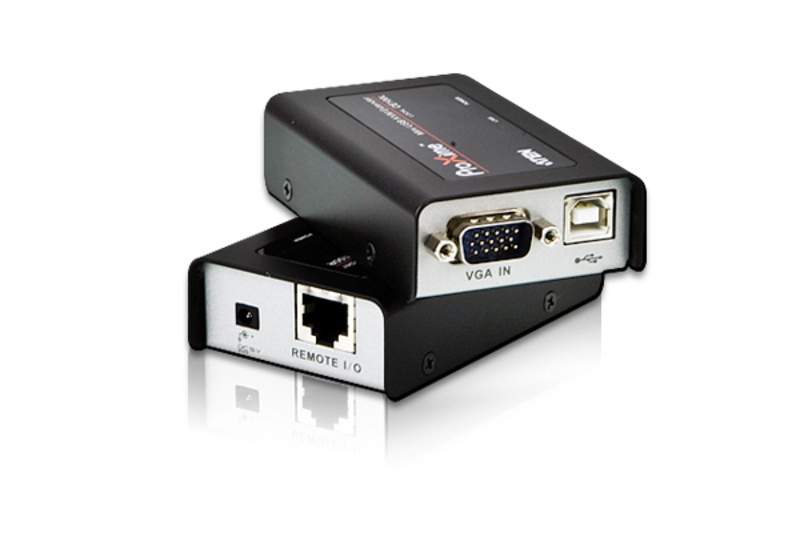

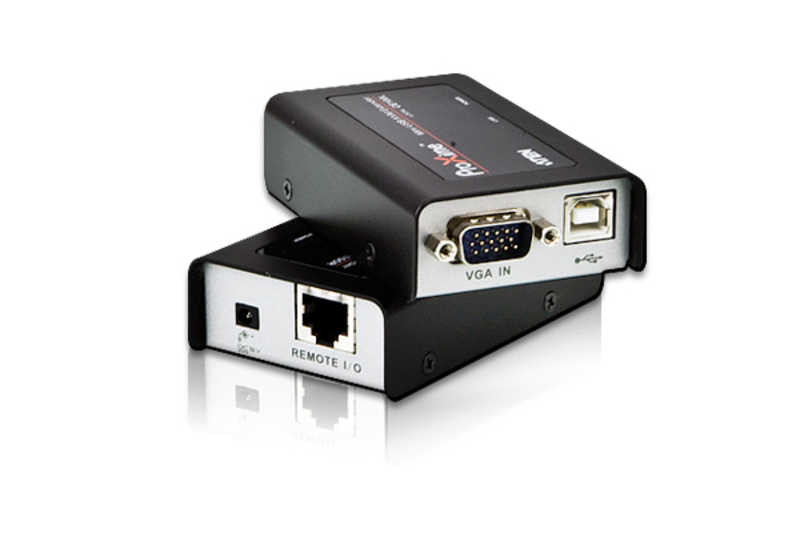

ATEN MINI USB VGA KVM Extender (100m)
ATEN MINI USB VGA KVM Extender (100m), Transmitter & receiver, Wired, 100 m, Cat5, 1920 x 1200 pixels, Black
Click or hover over image to enlarge
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
100 m
Cable types supported
Cat5
Maximum digital resolution
1920 x 1200 pixels
Product colour
Black
Material
Metal
LED indicators
Link, Power
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN MINI USB VGA CAT 5 KVM EXTENDER
1x CE100L Mini USB KVM Extender (Local Unit)
1x CE100R Mini USB KVM Extender (Remote Unit)
1x LIN5-21X1-X27G USB/VGA Cable (1.8m)
1x 0AD6-1705-10EG Power Adapter (for Remote Unit)
1x Mounting Kit
1x User Instructions
Key features
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Maximum transfer distance: 100 m
- Cable types supported: Cat5
- Maximum digital resolution: 1920 x 1200 pixels
- Product colour: Black
- Material: Metal
- LED indicators: Link, Power
- USB port type: USB Type-B/ USB Type-A
- USB 2.0 ports quantity: 3
- RJ-45 ports quantity: 2
- Transmitter width: 5.74 cm
- Transmitter depth: 9.1 cm
- Transmitter height: 2.4 cm
- Transmitter weight: 170 g
- Receiver width: 5.74 cm
- Receiver depth: 9.1 cm
- Receiver height: 2.4 cm
- Receiver weight: 170 g
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 745 g
- Cables included: USB, VGA
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Weight: 603 g
- Master (outer) case net weight: 12.1 kg
- Harmonized System (HS) code: 84733080
+ 5 more — see the Specifications tab.
