ATEN VE1830 AV extender AV transmitter & receiver Black

ATEN VE1830, 3840 x 2160 pixels, AV transmitter & receiver, 5 m, Wired, 3D, HDCP

ATEN TRUE 4K HDMI HDBASET-LITE EXTENDER

Click or hover over image to enlarge

Brand:ATEN
MPN:VE1830-AT-U

Part #: VE1830-AT-U

Operating voltage

12 V

Power consumption (typical)

24 W

Type

AV transmitter & receiver

Maximum resolution

3840 x 2160 pixels

Cable types supported

Cat5e, Cat6

Maximum transfer distance

5 m

Maximum refresh rate

60 Hz

Bandwidth

340 MHz

Returns & Warranty

Comsys Pacific Price

$680.99

Save NZ$76.89 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To CompareStock Alerts
Afterpay

Four payments of NZ$195.79 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN TRUE 4K HDMI HDBASET-LITE EXTENDER

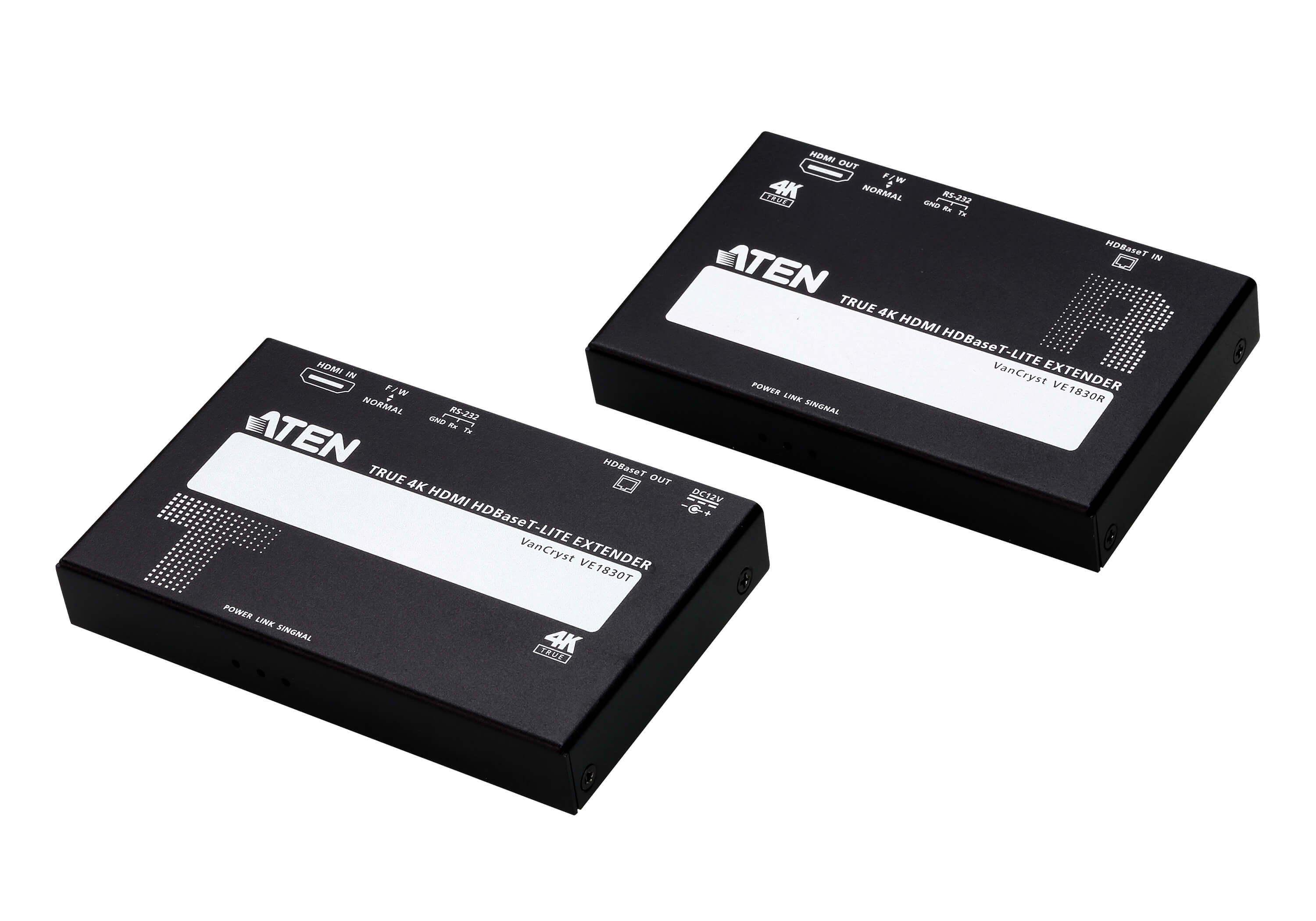

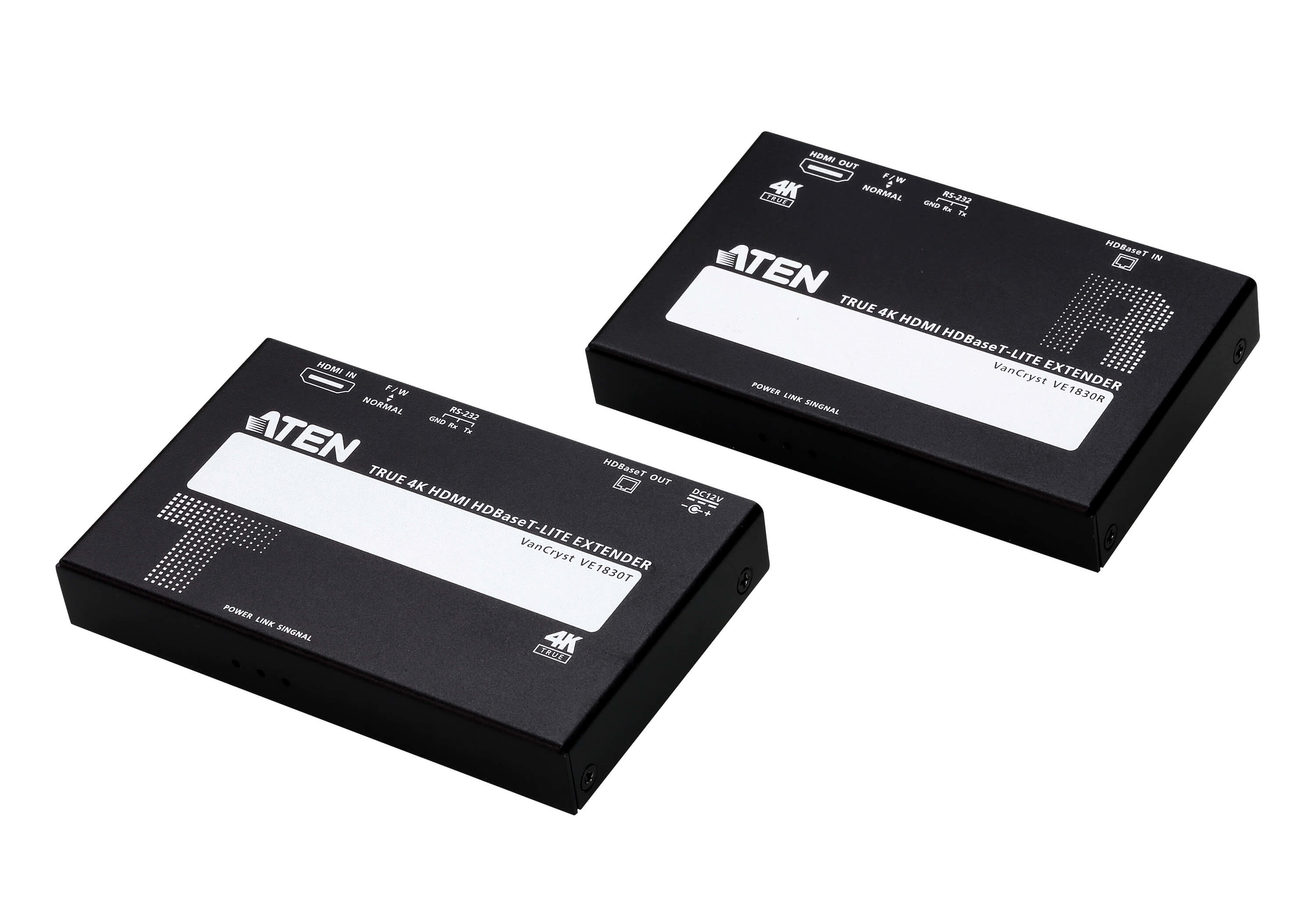

The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. This HDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually lossless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 3840 x 2160 pixels
  • Cable types supported: Cat5e, Cat6
  • Maximum transfer distance: 5 m
  • Maximum refresh rate: 60 Hz
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Rack mounting: Yes
  • Consumer Electronics Control (CEC) support: Yes
  • Plug and Play: Yes
  • Impedance: 100 Ω
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • RJ-45 input ports: 1
  • RJ-45 output ports: 1
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • HDMI version: 2.0a
  • DC-in jack: Yes
  • Operating voltage: 12 V
  • Power consumption (typical): 24 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Receiver dimensions (WxDxH): 118.6 x 71.9 x 16.8 mm
  • Receiver weight: 120 g

+ 5 more — see the Specifications tab.
