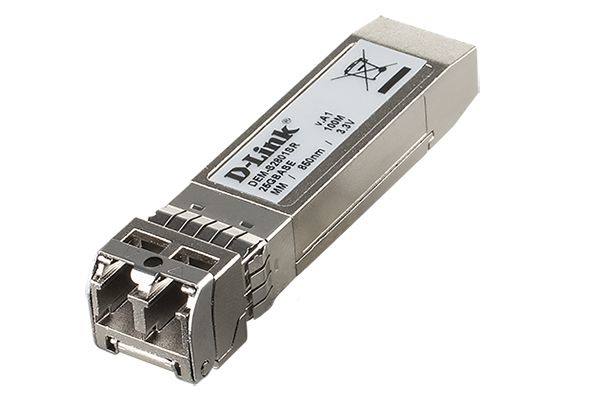

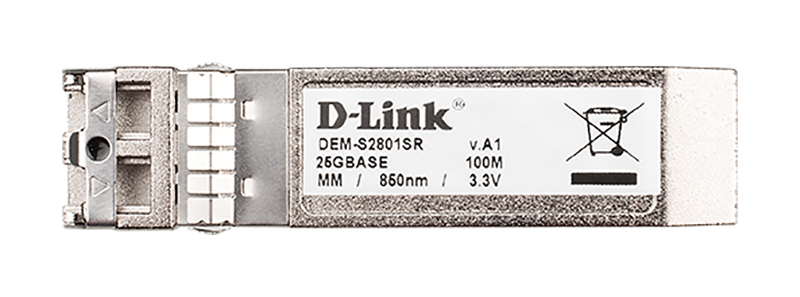

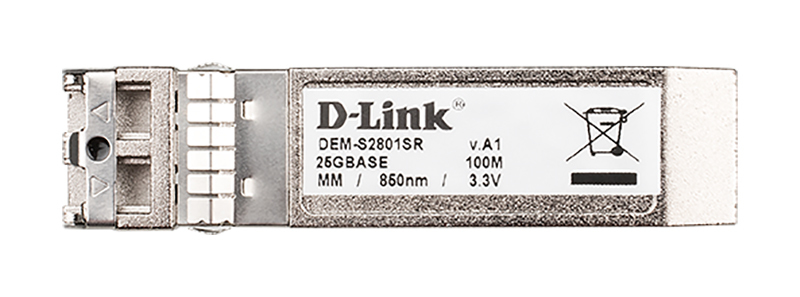

D-LINK DEM-S2801SR Transceiver
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDEMS2801SR
- MPN: DEM-S2801SR
D-Link DEM-S2801SR network transceiver module Fiber optic 25000…
D-Link DEM-S2801SR, Fiber optic, 25000 Mbit/s, SFP28, LC, 50/125 µm, SR
Click or hover over image to enlarge
Input voltage
3.3 V
Maximum current
0.3 A
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Maximum data transfer rate
25000 Mbit/s
Interface type
SFP28
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
Comsys Pacific Price
Save $35.09 off RRP
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 26 Bancroft Crescent, Glendene, Auckland 0602
Four payments of $112.41 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
D-LINK DEM-S2801SR Transceiver
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
25G Ethernet speeds
The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 25000 Mbit/s
- Interface type: SFP28
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Fiber cable diameters supported (core/cladding): 50/125 µm
- SFP transceiver standard: SR
- Maximum transfer distance: 100 m
- Wavelength: 850 nm
- Tx power (min): -9.1 dBmW
- Tx power (max): 2.4 dBmW
- Rx power (min): -11 dBmW
- Rx power (max): 2.4 dBmW
- Fiber ethernet cabling technology: 25GBASE
- Hot-Plug support: Yes
- Input voltage: 3.3 V
- Maximum current: 0.3 A
- Certification: MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 57.3 mm
- Depth: 13.7 mm
- Height: 8.5 mm
- Weight: 25 g
Ex GST
$390.99
