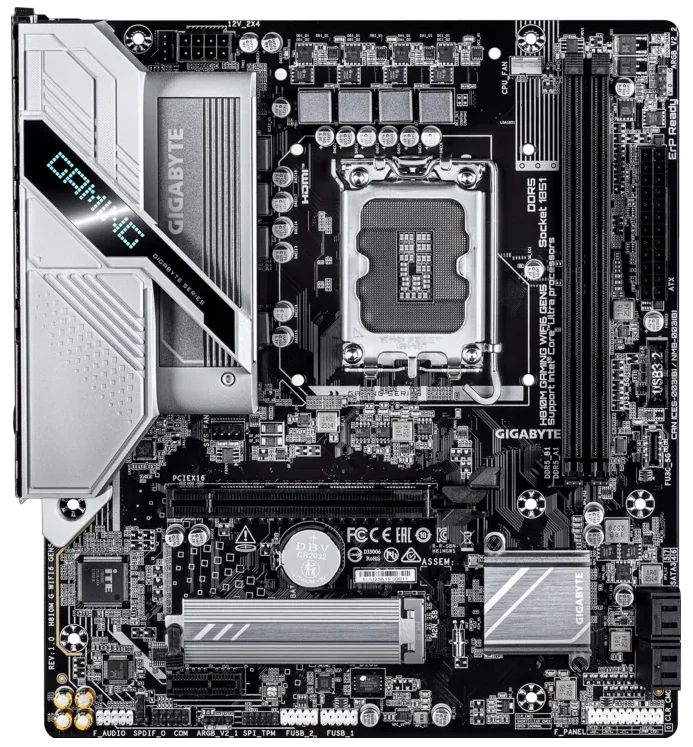

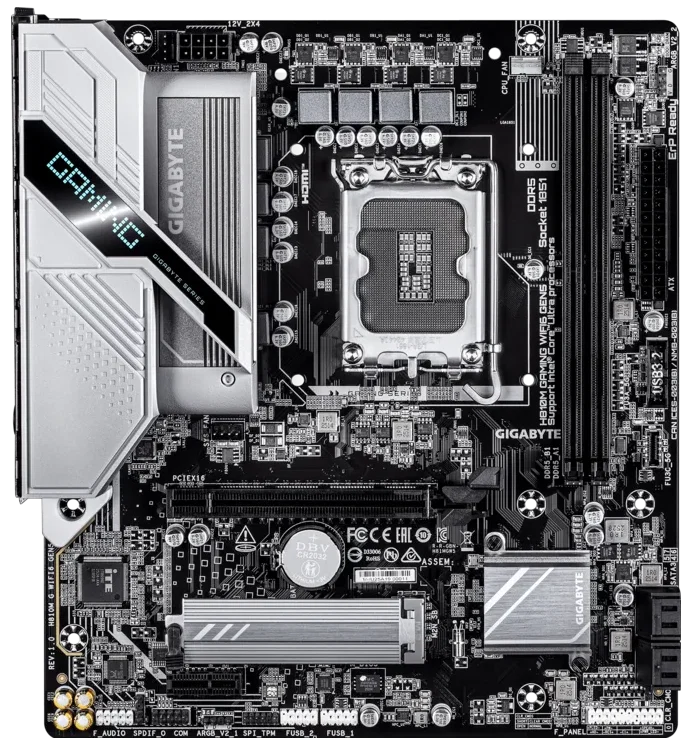

Gigabyte H810M Gaming WIFI6 Motherboard

CPU

LGA1851 socket: Support for Intel Core Ultra Processors

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USB

Chipset: 1x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header, 3x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header), 2x USB 2.0/1.1 ports on the back panel, Chipset+2 USB 2.0 Hubs: 7x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

Audio

Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

Memory

Support for DDR5 6400/5600 MT/s memory modules, 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Chipset

Intel H810 Express Chipset

H/W Monitoring

Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, - BIOS: 1x 256 Mbit flash

I/O Controller

iTE I/O Controller Chip
