IDEAL INDUSTRIES Suretrace Pro Circuit Tracer Kit 0-600 AC/DC

Suretrace Pro Circuit Tracer Kit 0-600 AC/DC

The SureTrace™ Pro Circuit Tracer provides accurate tracing and troubleshooting for energised and de-energised electrical systems, including 3-phase. It quickly locates breakers, fuses, conductors, and wiring faults such as shorts, opens, and splice issues. The transmitter includes auto-continuity testing, voltage measurement (24–600V AC / 12–600V DC), DC polarity, and receptacle testing. The patent-pending Inductive Sensing Clamp measures 0–600A AC and can also induce a tracing signal when termination access is limited. The receiver features dual high-visibility displays with patented 90° rotating TightSight® and main screens, plus an integrated work light for low-light conditions. CertainCircuit™ technology indicates whether a circuit is energised or de-energised at both ends. Rated CAT III 600V, the SureTrace Pro is a reliable, professional-grade circuit tracing solution.

Features:

• Reliable Tracing: Detect breakers, conductors, fuses, dead shorts, and splice errors in all electrical systems up to 600V AC/DC, including 3-phase, with speed and accuracy using this ETL Certified CAT III circuit tracer
• Total Troubleshooting Solution: Check continuity, measure voltage (24 - 600V AC and 12- 600V DC), confirm DC polarity, and verify outlet wiring with the feature-packed transmitter
• AC Amperage Measurement: Induce tracing signals and measure AC amperage up to 600A using the patent-pending, rechargeable inductive/sensing clamp with TightSight bottom display
• Lighten Your Toolbelt: Quickly find shorted conductors, check receptacle wiring, detect the presence of AC voltage, and read AC Amperage — no second tester needed
• Premium Rotating Displays: Easily view readings in tight spaces and at tough angles thanks to the receiver’s two high-visibility 90° rotating OLED displays, including a TightSight bottom display
• User-Friendly Features: Analogue and digital signal strength, sensitivity level, battery level, built-in NCVT, work light, kick-stand, hanging strap clip, and mute button to silence audible indications when working in noise-sensitive areas
• One-Person Tracing: CertainCircuit technology turns tracing into a one-person job by visibly indicating when the correct circuit has been deenergised at the panel and at the other end of the circuit
• Durable Design: Overmoulded industrial design withstands the toughest jobsite conditions, enhancing grip and providing drop protection up to 6.6 feet (2 m)

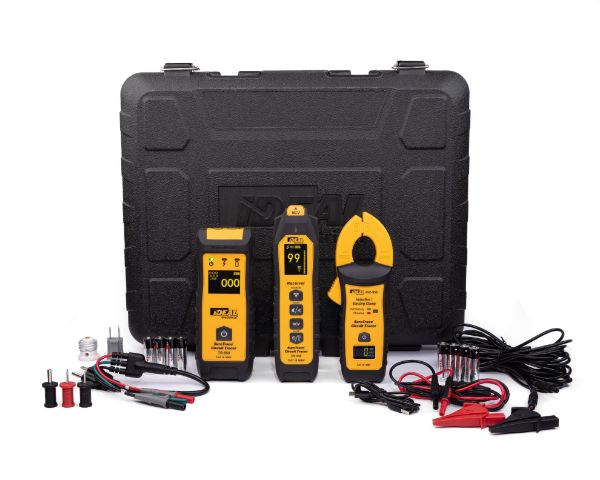

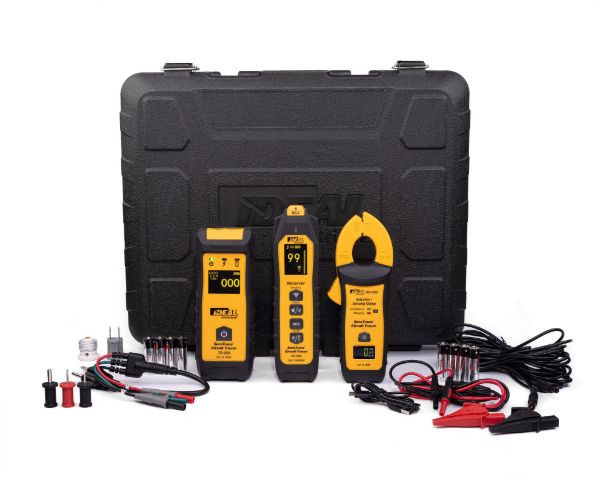

• Package Includes: SureTrace Pro transmitter and receiver; SureTrace Inductive/Sensing Clamp; Lead Set; USB A-USB C Charging Cable, moulded hard case, instruction manual, and 10 AA batteries
