KINGSTON 24GB 5600MT/s DDR5 ECC Reg CL46 DIMM 1Rx
24GB 5600MT/s DDR5 ECC Reg CL46 DIMM 1Rx8 Micron B Renesas
- Brand: KINGSTON
- Category: RAM
- SKU: 6205038
- MPN: KSM56R46BS8PMI-24MBI
Kingston Technology KSM56R46BS8PMI-24MBI memory module 24 GB 1 x 24…
Kingston Technology KSM56R46BS8PMI-24MBI, 24 GB, 1 x 24 GB, DDR5, 288-pin DIMM

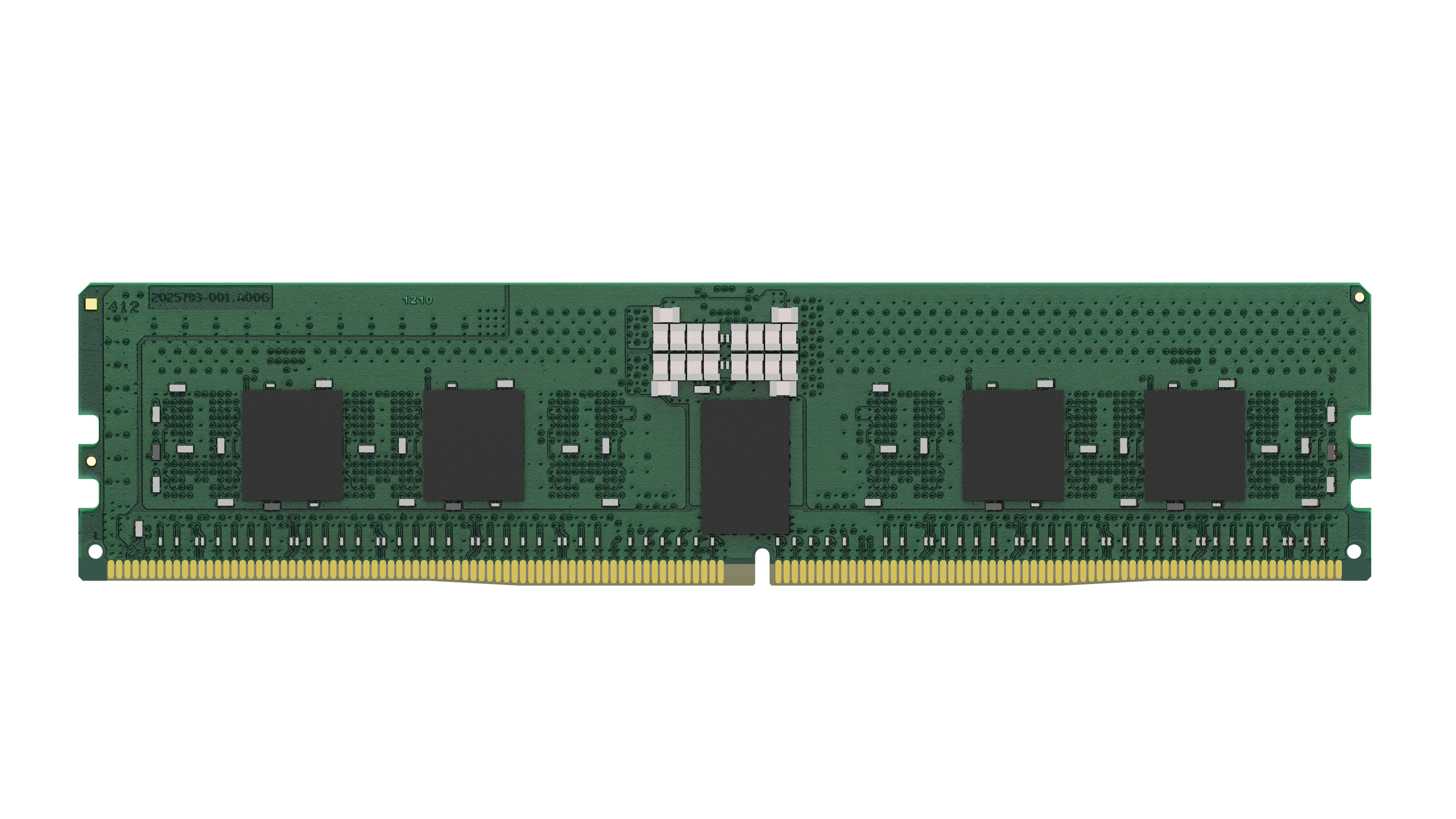

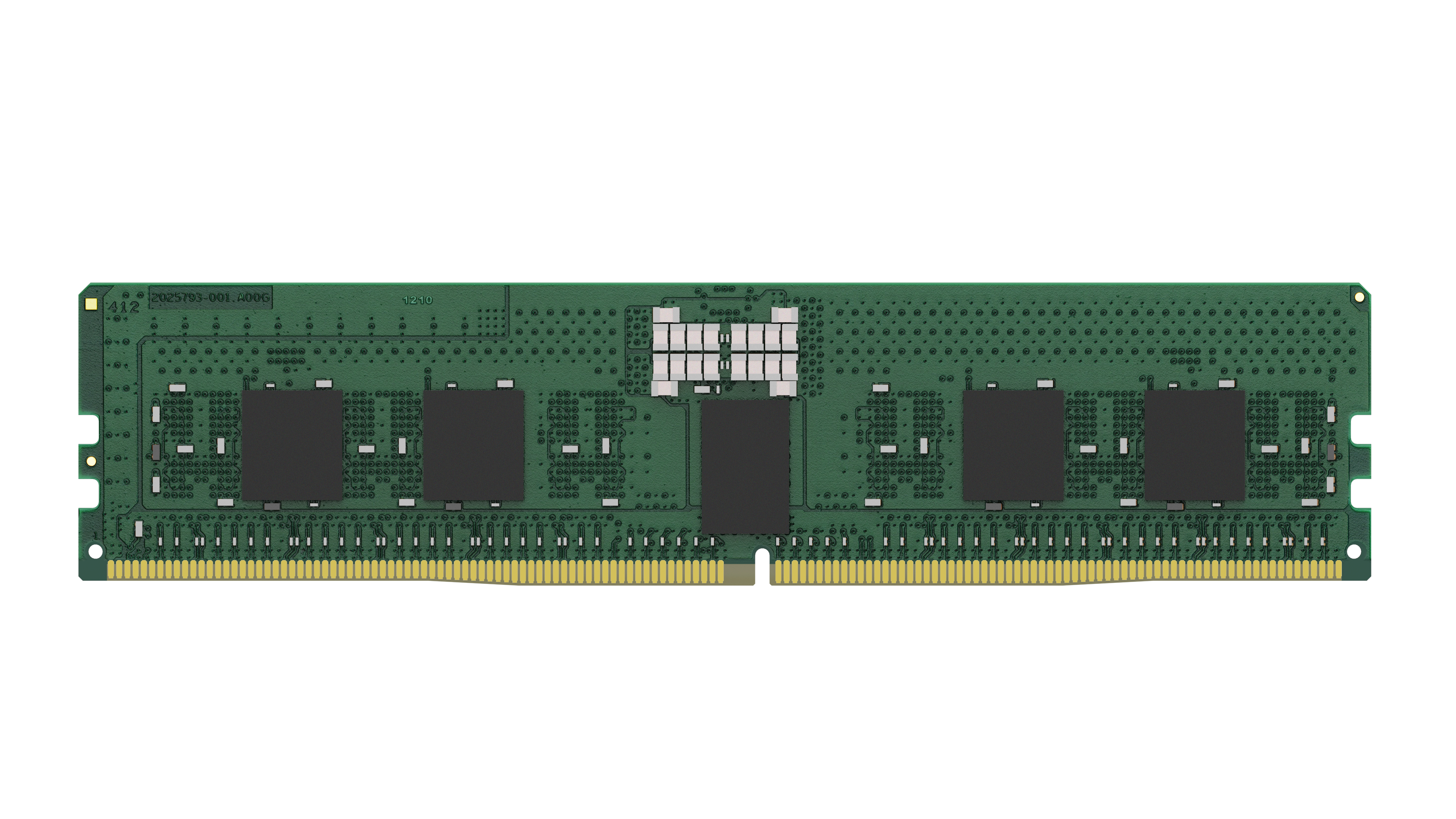

Click or hover over image to enlarge
On-Die ECC
Yes
CAS latency
46
Internal memory
24 GB
Memory layout (modules x size)
1 x 24 GB
Internal memory type
DDR5
Memory data transfer rate
5600 MT/s
Component for
PC/Server
Memory form factor
288-pin DIMM
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
KINGSTON 24GB 5600MT/s DDR5 ECC Reg CL46 DIMM 1Rx
Key features
- On-Die ECC: Yes
- CAS latency: 46
- Internal memory: 24 GB
- Memory layout (modules x size): 1 x 24 GB
- Internal memory type: DDR5
- Memory data transfer rate: 5600 MT/s
- Component for: PC/Server
- Memory form factor: 288-pin DIMM
- ECC: No
- Buffered memory type: Registered (buffered)
- Memory ranking: 1
- Memory voltage: 1.1 V
- Row cycle time: 48 ns
- Refresh row cycle time: 295 ns
- Row active time: 32 ns
- SPD profile: Yes
- Programming power voltage (VPP): 1.8 V
- Lead plating: Gold
- JEDEC standard: Yes
- Operating temperature (T-T): 0 - 95 °C
- Storage temperature (T-T): -55 - 100 °C
- Compliance certificates: RoHS
- Width: 133.3 mm
- Height: 31.2 mm
- Doesn't contain: Halogen
Price on Application
