Kingston Technology KSM32RD4/64HD memory module 64 GB 1 x 64 GB DDR4…

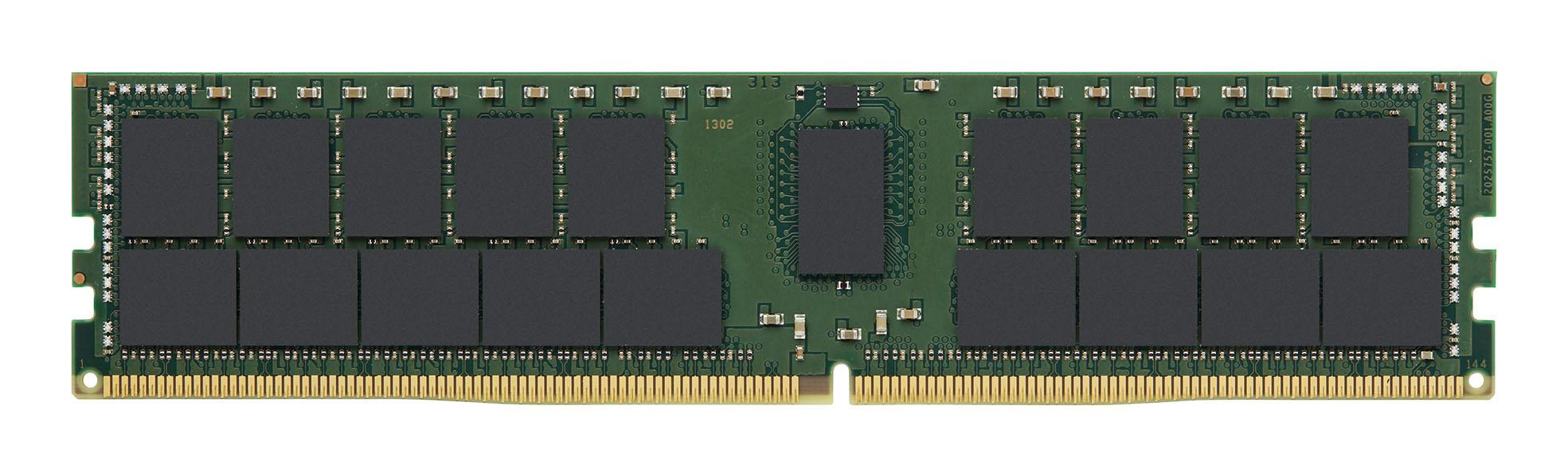

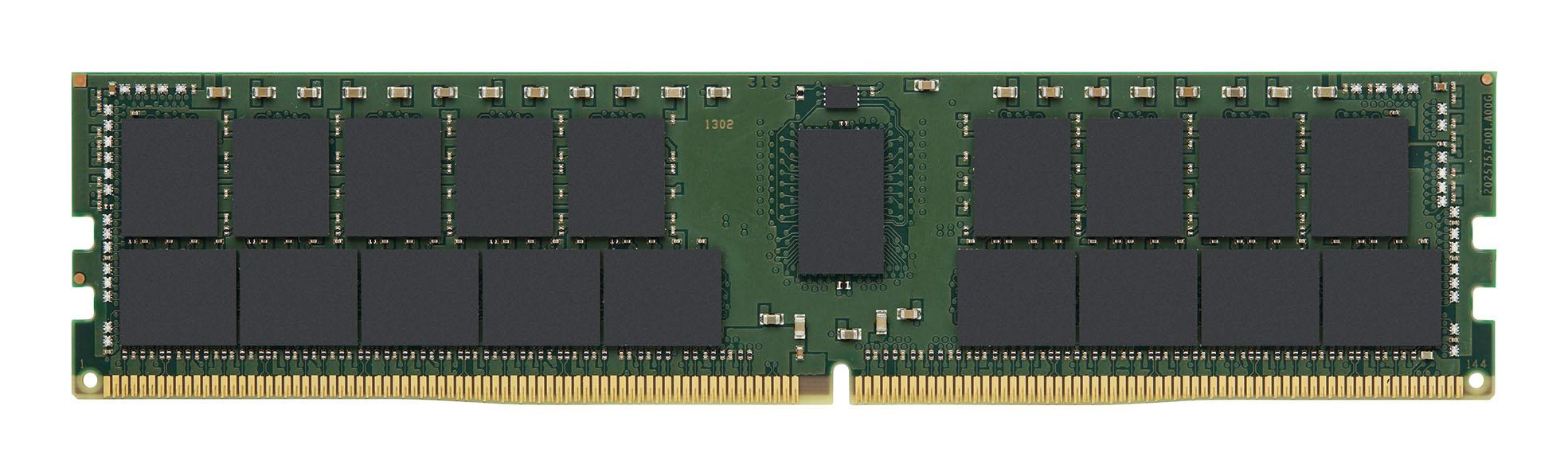

Kingston Technology KSM32RD4/64HD, 64 GB, 1 x 64 GB, DDR4, 288-pin DIMM
Click or hover over image to enlarge
Brand:KINGSTON
MPN:6509191
Part #: 6509191
CAS latency
22
Internal memory
64 GB
Memory layout (modules x size)
1 x 64 GB
Internal memory type
DDR4
Memory data transfer rate
3200 MT/s
Component for
Server
Memory form factor
288-pin DIMM
ECC
Yes
Comsys Pacific Price
$2,541.99
Save NZ$305.00 off RRP
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Four payments of NZ$730.82 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
KINGSTON 64GB 3200MT/s DDR4 ECC Reg CL22 DIMM 2Rx
Kingston's KSM32RD4/64HD is a 8G x 72-bit (64GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key features
- CAS latency: 22
- Internal memory: 64 GB
- Memory layout (modules x size): 1 x 64 GB
- Internal memory type: DDR4
- Memory data transfer rate: 3200 MT/s
- Component for: Server
- Memory form factor: 288-pin DIMM
- ECC: Yes
- Buffered memory type: Registered (buffered)
- Memory ranking: 2
- Memory voltage: 1.2 V
- Module configuration: 8192M x 72
- Row cycle time: 45.75 ns
- Row active time: 32 ns
- SPD profile: Yes
- Programming power voltage (VPP): 2.5 V
- JEDEC standard: Yes
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -55 - 100 °C
- Compliance certificates: RoHS
- Width: 133.3 mm
- Height: 31.2 mm
