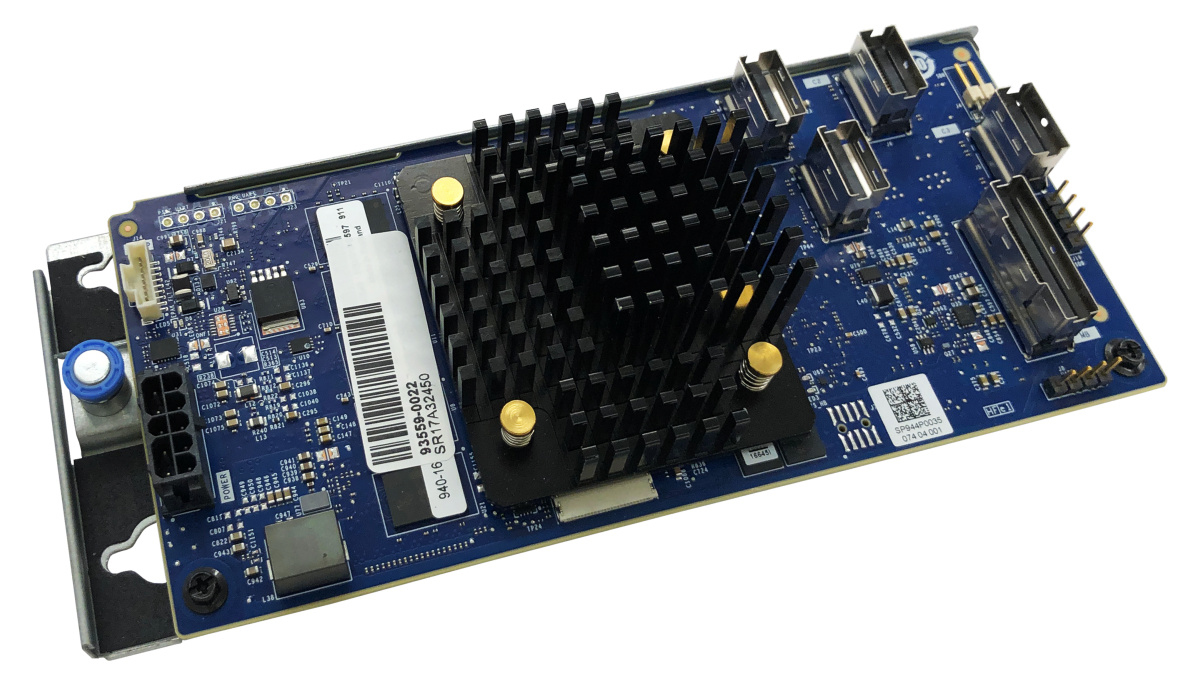

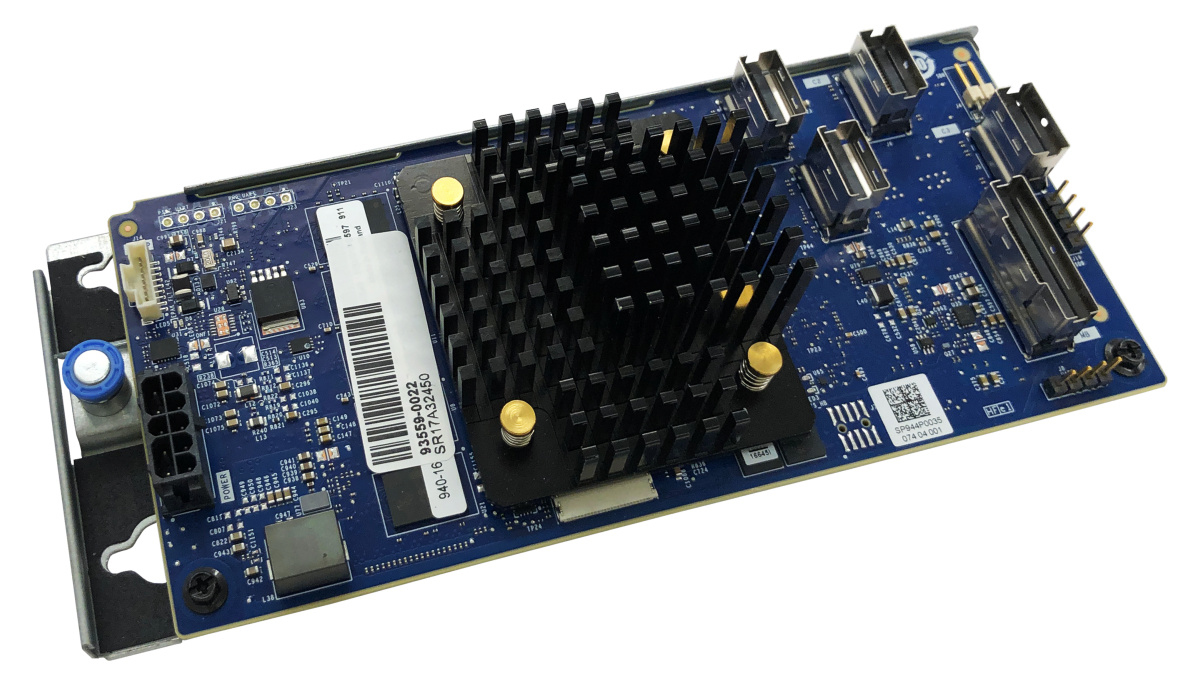

LENOVO THINKSYSTEM RAID 940-16I 8GB FLASH PCIE GEN4 12GB INTERNAL ADAPTER
Servers & Storage > Servers
- Brand: LENOVO
- Category: Servers
- SKU: 4Y37A09735
- MPN: 4Y37A09735
Lenovo ThinkSystem RAID 940-16i RAID controller PCI Express x8 4.0…
Lenovo ThinkSystem RAID 940-16i, SAS, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, JBOD, 12 Gbit/s, 8000 MB, USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan...
Click or hover over image to enlarge
RAID levels
0, 1, 5, 6, 10, 50, 60, JBOD
RAID Level Migration
Yes
Data transfer rate
12 Gbit/s
SSD support
Yes
Internal memory
8000 MB
Number of devices supported
16
Hot-swap
Yes
Certification
USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE
Comsys Pacific Price
Save $591.01 off RRP
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
LENOVO THINKSYSTEM RAID 940-16I 8GB FLASH PCIE GEN4 12GB INTERNAL ADAPTER
The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).
RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.
Key features
- Supported storage drive interfaces: SAS
- Host interface: PCI Express x8
- PCI Express slots version: 4.0
- RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
- RAID Level Migration: Yes
- Data transfer rate: 12 Gbit/s
- SSD support: Yes
- Internal memory: 8000 MB
- Number of devices supported: 16
- Hot-swap: Yes
- Certification: USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE
- Compatible products: SR665 (7D2W/7D2V), SR645 (7D2Y/7D2X)
- Compatible operating systems: Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 8.1 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 SP5 with Xen SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP1 with Xen VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0
- Operating temperature (T-T): 10 - 55 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 5 - 95%
- Harmonized System (HS) code: 84733080
Ex GST
$6,241.99
