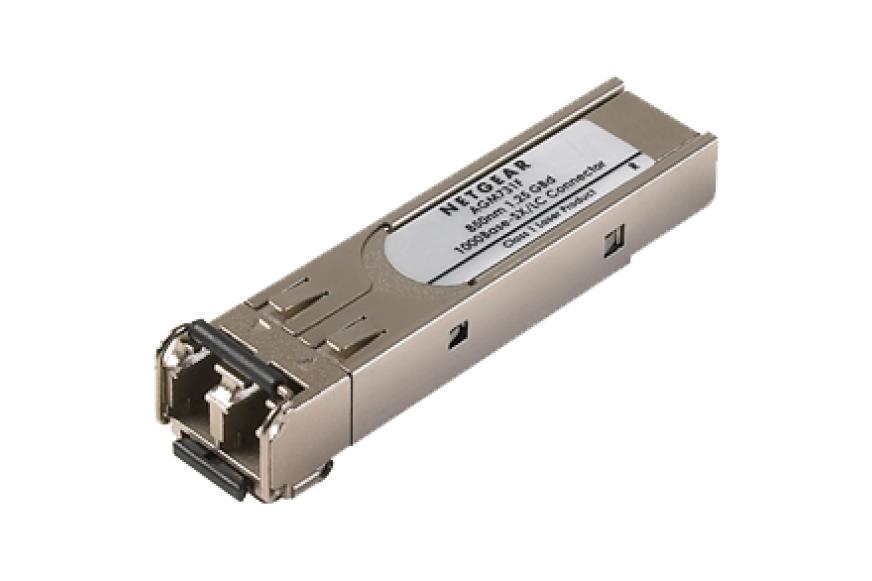

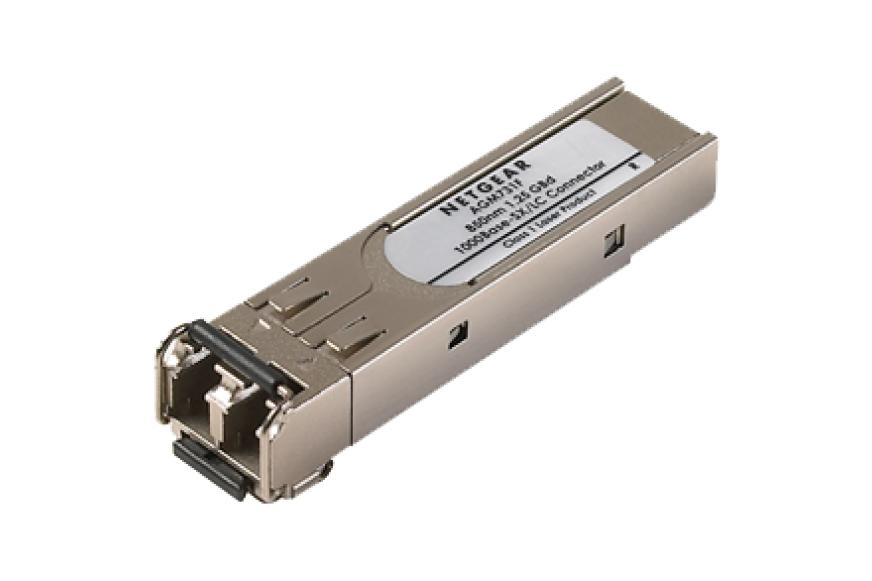

NETGEAR AGM731F 1000Base-SX Multimode SFP Module LC duplex connector
1000Base-SX Multimode SFP Module LC duplex connector
- Brand: NETGEAR
- Category: Fibre And SFP
- SKU: AGM731F
- MPN: AGM731F
NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches
NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches, Fiber optic, 1250 Mbit/s, SFP, LC, 50/125,62.5/125 µm, SX
Click or hover over image to enlarge
Input voltage
3.3 V
Power consumption (typical)
0.5 W
Product colour
Silver
Housing material
Metal
Mean time between failures (MTBF)
87658 h
SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty: 60 months
This product includes 60 months warranty coverage.
NETGEAR AGM731F 1000Base-SX Multimode SFP Module LC duplex connector
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- SFP transceiver standard: SX
- Maximum transfer distance: 1000 m
- Wavelength: 850 nm
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3z
- Fiber ethernet cabling technology: 1000BASE
- Duplex system: Full
- Product colour: Silver
- Housing material: Metal
- Mean time between failures (MTBF): 87658 h
- Input voltage: 3.3 V
- Power consumption (typical): 0.5 W
- Compliance certificates: CE, RoHS
- Safety: UL 1950, CSA 22.2 No.60 950
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Width: 57 mm
- Depth: 13.8 mm
- Height: 8.5 mm
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 85369010
