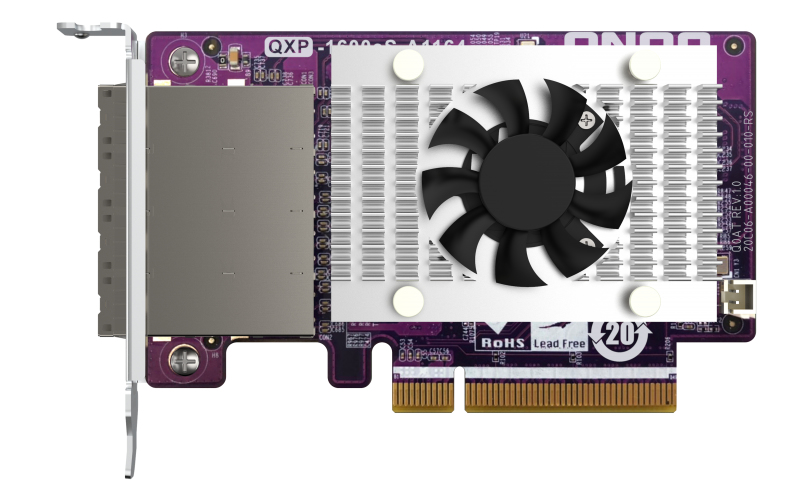

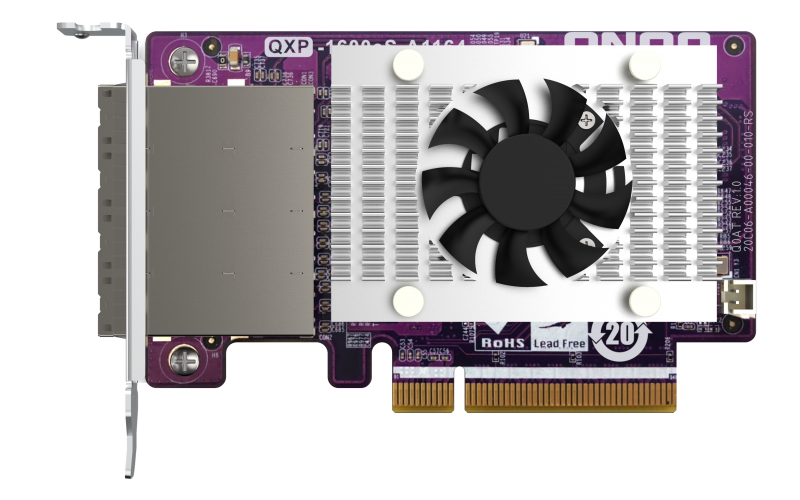

QNAP QXP-1600eS-A1164 interface cards/adapter Internal Mini-SAS

QNAP QXP-1600eS-A1164, PCIe, Mini-SAS, PCIe 3.0, Windows 10, Windows 11, Windows 8, Windows 8.1, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.8, Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2016 x64, Windows...

QNAP 4-port SFF-8088 SATA host bus adapter, 16 x SATA 6Gb/s, PCIe 3.0 x8, for TL SATA JBOD

Click or hover over image to enlarge

Brand:QNAP
MPN:QXP-1600ES-A1164

Part #: QXP-1600ES-A1164

Internal

Yes

Harmonized System (HS) code

84733020

Quantity

1

Mounting brackets included

Yes

Host interface

PCIe

Output interface

Mini-SAS

Expansion card standard

PCIe 3.0

External mini-SAS ports

4

Returns & Warranty

Comsys Pacific Price

$428.99
Manager's Special

Save NZ$47.00 off RRP

Out of Stock

Contact us for ETA or alternatives

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Need help? Call 0800 664 554
Add To CompareStock Alerts
Afterpay

Four payments of NZ$123.34 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

QNAP 4-port SFF-8088 SATA host bus adapter, 16 x SATA 6Gb/s, PCIe 3.0 x8, for TL SATA JBOD

The QNAP QXP-1600eS-A1164 expansion card is designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. The storage capacity of a QNAP NAS or Windows/ Ubuntu (Linux) PC can be easily expanded by installing a QXP-1600eS-A1164 into a PCIe slot, and then connecting it to a TL series JBOD storage enclosure using an SFF-8088 or SFF-8644 cable. The low-profile card form-factor allows the QXP-1600eS-A1164 to be compatible with a wide range of NAS, computers, and servers.

Supports QNAP NAS and Windows/Ubuntu PCs
Each SFF-8088 or SFF-8644 (internal) connector on the QXP-1600eS-A1164 supports up to four SATA drives. A QXP-1600eS-A1164 can be installed based on the number of drives you want to connect for storage expansion. For example, a QXP-1600eS-A1164 can be connected to a 16-bay desktop TL-D1600S JBOD enclosure or a 12-bay rackmount TL-R1200S-RP JBOD enclosure; it can also be connected to two 8-bay desktop TL-D800S JBOD enclosures simultaneously or connected to a 12-bay rackmount TL-R1200S-RP JBOD enclosure and a 4-bay rackmount TL-R400S JBOD enclosure simultaneously.

QNAP JBOD Manager for Windows/Ubuntu users
The QNAP JBOD Manager utility allows Windows and Ubuntu (Linux) PC users to monitor the status of fans, system temperature, and drive information of TL series JBOD storage enclosures.

Key features

  • Host interface: PCIe
  • Output interface: Mini-SAS
  • Expansion card standard: PCIe 3.0
  • External mini-SAS ports: 4
  • Internal SATA ports quantity: 4
  • Internal: Yes
  • Windows operating systems supported: Windows 10, Windows 11, Windows 8, Windows 8.1
  • Linux operating systems supported: Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.8
  • Server operating systems supported: Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019
  • Width: 117.7 mm
  • Depth: 68.9 mm
  • Height: 18.3 mm
  • Quantity: 1
  • Mounting brackets included: Yes
  • Harmonized System (HS) code: 84733020
