RAM Thin-Dock Powered Dock for Samsung Tab Active5 & 3 (Non-Locking)
- Brand: RAM Mounts
- Category: Docking Stations
- SKU: 506133
- MPN: RAM-HOL-SAM58CPTU

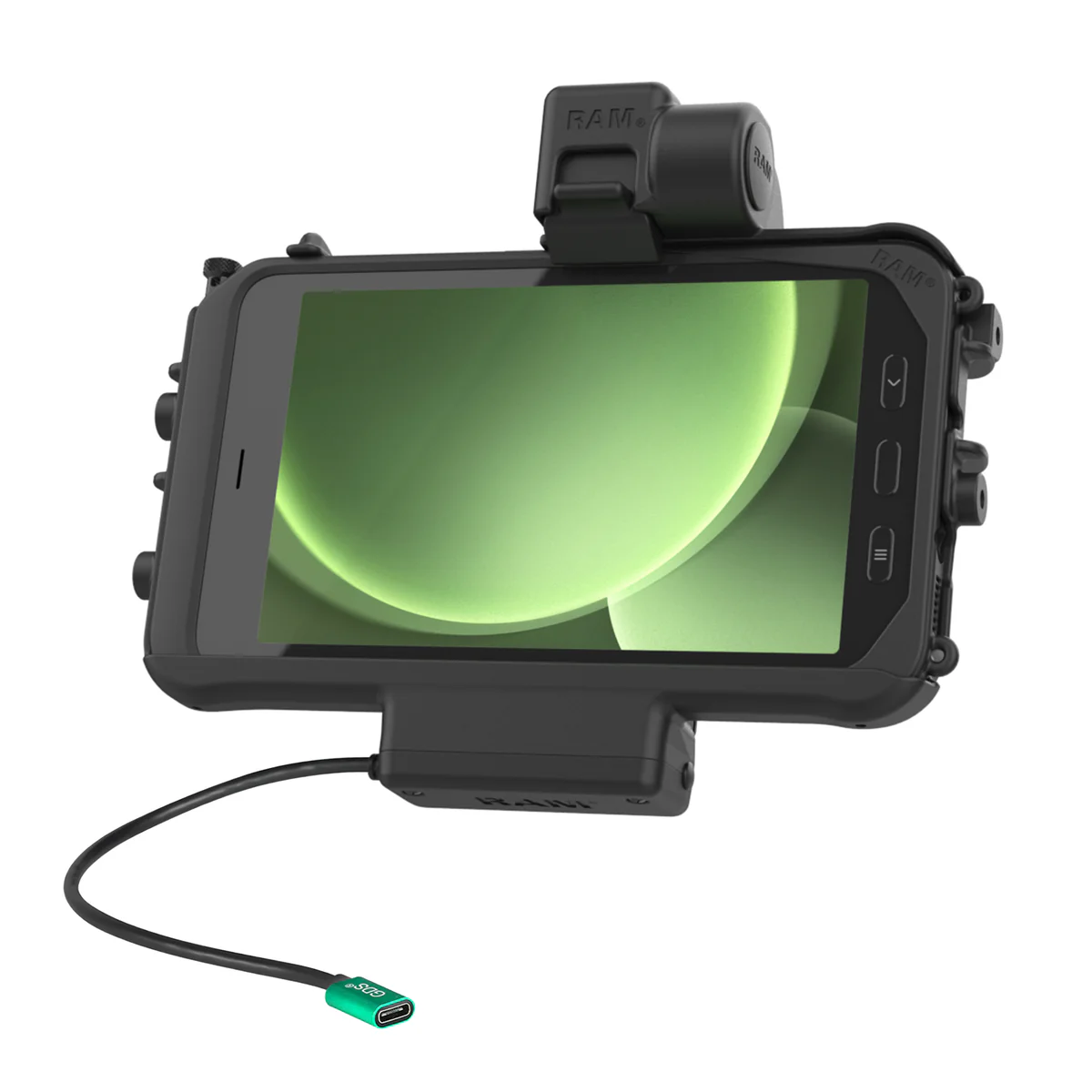

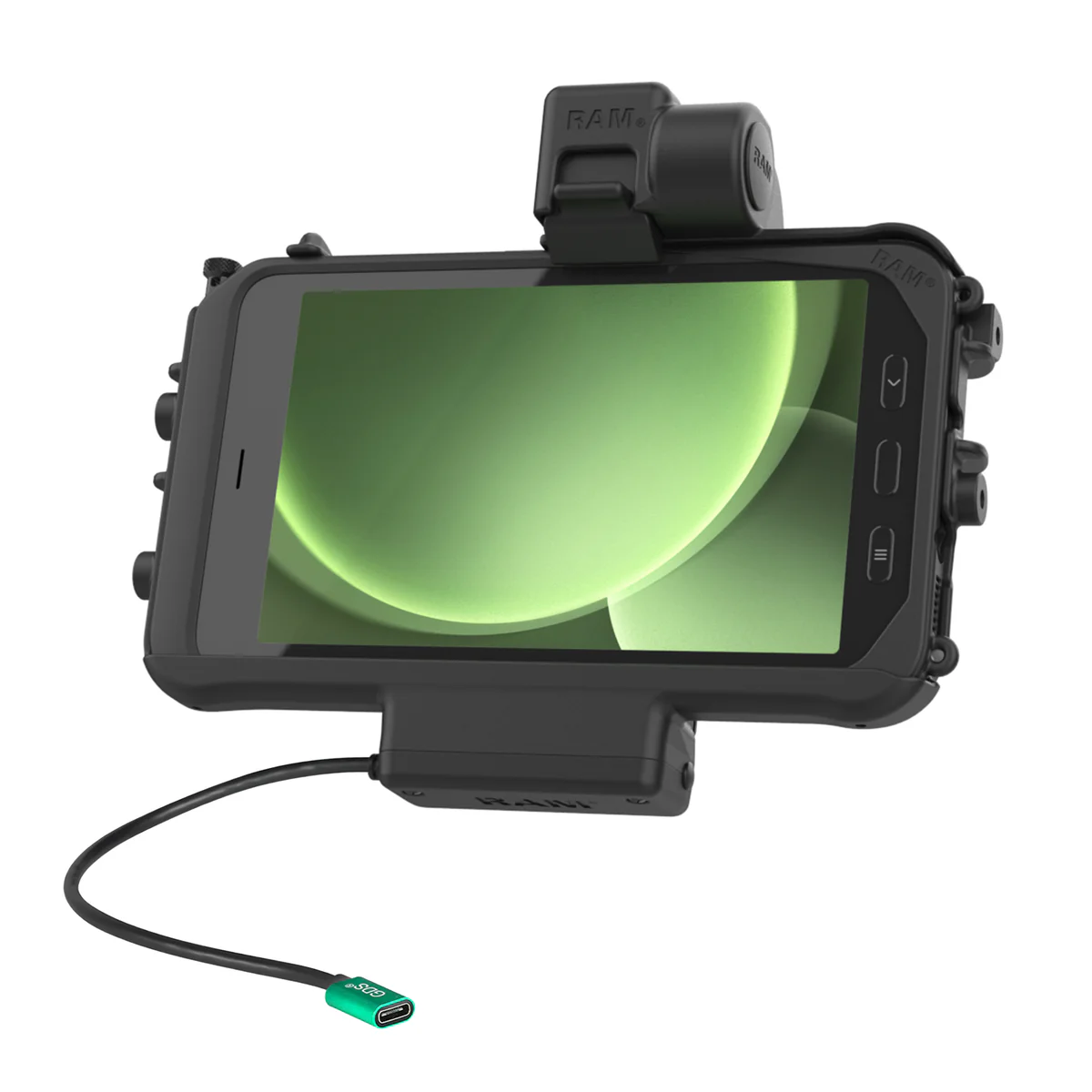

RAM Mounts RAM Thin-Dock Powered Dock for Samsung Tab Active5 & 3 (Non-Locking)
The RAM® Thin-Dock™ Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.
Click or hover over image to enlarge
Feature
Form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™
Hole pattern
4-Hole AMPS: 1.181" x 1.496"
Power output
500mA
Input voltage
5.3-5.4VDC
Output voltage
5VDC
Packaging type
Poly Bag
Input connector
USB Type-C Female
Hardware included
(4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) Optional Cable Clamp Housing, (2) Large Cable Ties, (6) Small Cable Ties
