StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA, PCIe, Serial, RS-232, Yellow, 0.5 m, 160013 h
Click or hover over image to enlarge
Part #: 4934922
Internal
Yes
Product colour
Yellow
Maximum cable length
0.5 m
Mean time between failures (MTBF)
160013 h
Chipset
ASMedia - ASM1083, System Base - SB16C1058PCI
Baud rate
921.6 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5, 6, 7, 8
Comsys Pacific Price
Save NZ$92.10 off RRP
Only 4 left in stock
Order soon to avoid backorder
Four payments of NZ$116.15 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

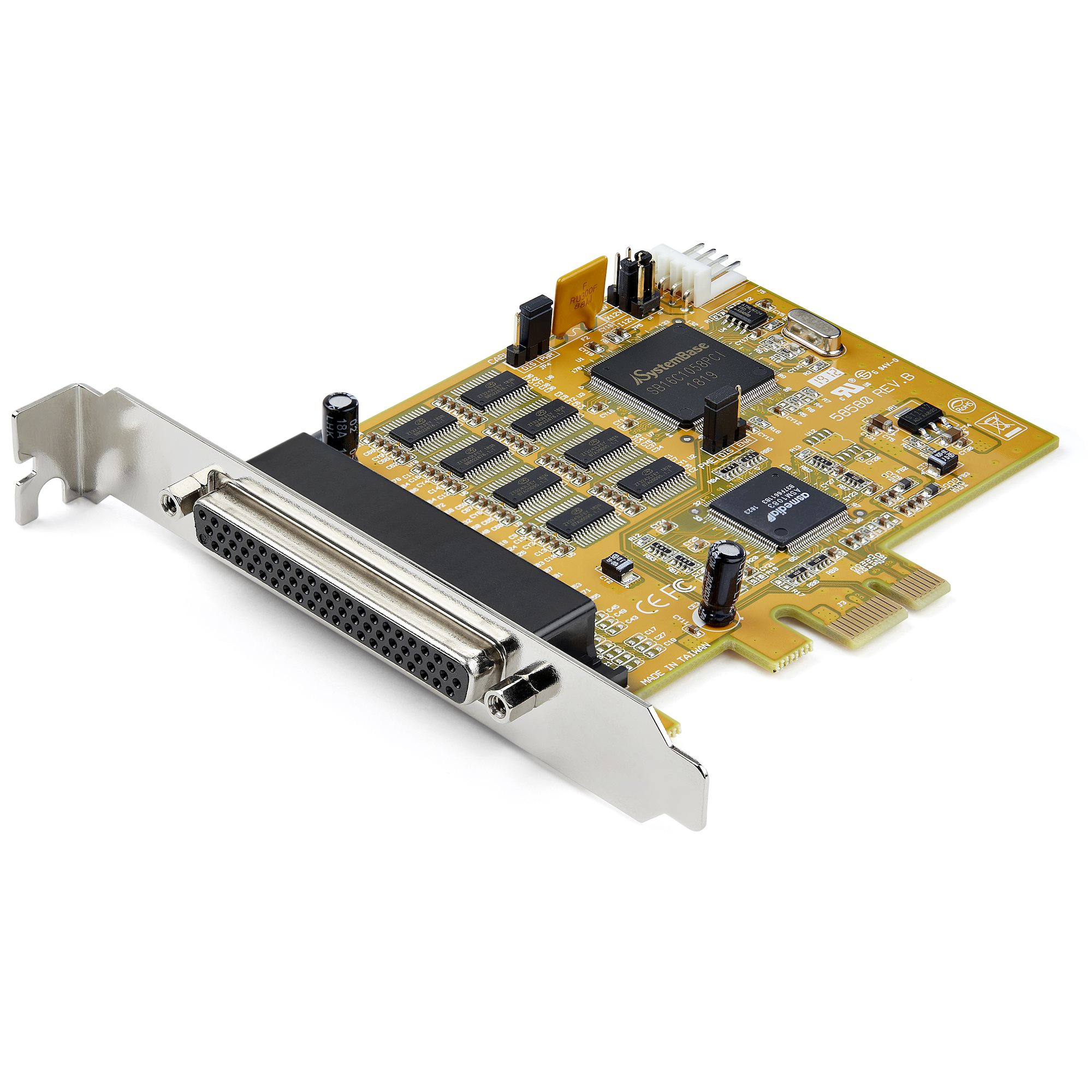

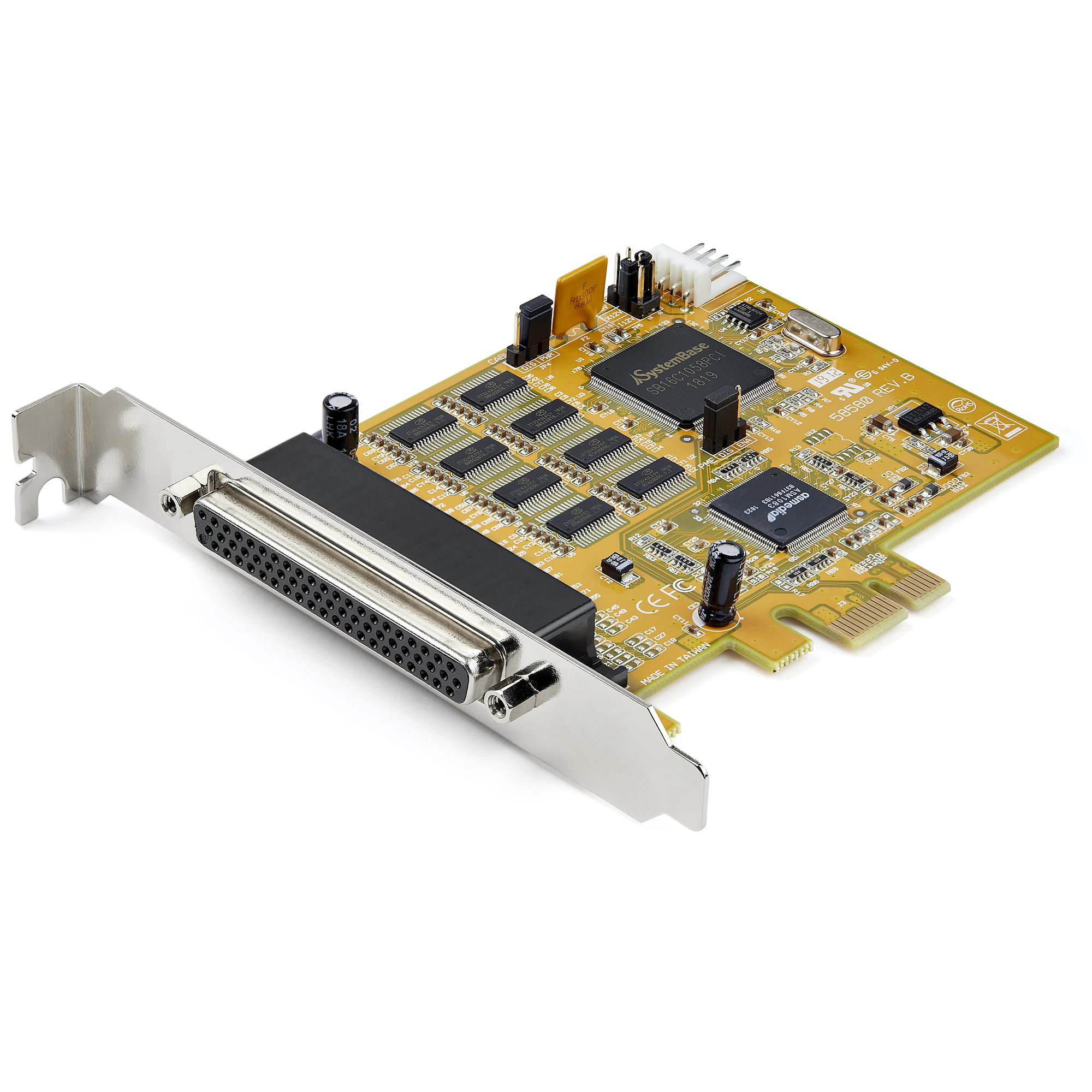

StarTech.com 8 Port PCI Express RS232 Serial Adapter
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: Serial
- Serial ports quantity: 8
- Serial interface type: RS-232
- Internal: Yes
- Product colour: Yellow
- Maximum cable length: 0.5 m
- Mean time between failures (MTBF): 160013 h
- Chipset: ASMedia - ASM1083, System Base - SB16C1058PCI
- Baud rate: 921.6 Kbit/s
- FIFO (First In, First Out): 256 B
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity bit: Even, No, Odd
- Flow Control type: RTS/CTS, XON/XOFF
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 5 - 95%
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
- Compliance certificates: RoHS
- Width: 16 mm
- Depth: 105 mm
- Height: 120 mm
- Weight: 74 g
- Cables included: Serial
- Quick installation guide: Yes
- Package width: 190 mm
- Package depth: 290 mm
+ 8 more — see the Specifications tab.
