StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2…

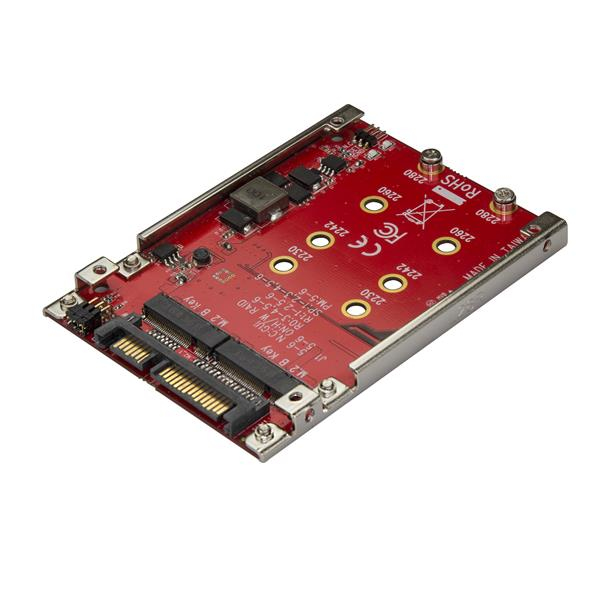

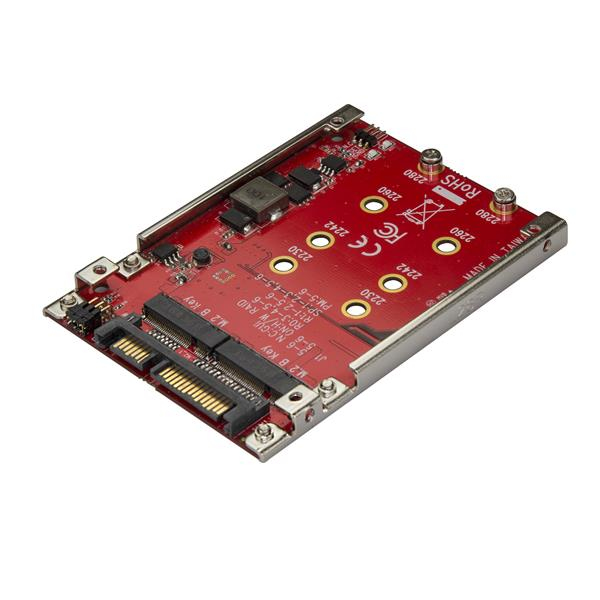

StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA, SATA, M.2, Red, CE, FCC, REACH, TAA, ASMedia - ASM1092R, 6 Gbit/s
Click or hover over image to enlarge
Part #: S322M225R
Internal
Yes
Product colour
Red
Hot-swap
No
Easy to install
Yes
Certification
CE, FCC, REACH, TAA
Chipset
ASMedia - ASM1092R
Data transfer rate (max)
6 Gbit/s
S.M.A.R.T. support
Yes
Comsys Pacific Price
Save NZ$17.47 off RRP
In Stock
10 units available
Four payments of NZ$24.15 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM DUAL-SLOT M.2 TO SATA ADAPTER - M.2 ADAPTER - RAID 2 YR
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
Maximize file transfer speeds
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Easy installation
This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key features
- Host interface: SATA
- Output interface: M.2
- SATA revision: 3.0
- Number of M.2 (B) slots: 2
- Number of SSDs supported: 2
- Port multiplier: Yes
- Internal: Yes
- Product colour: Red
- Hot-swap: No
- Easy to install: Yes
- Certification: CE, FCC, REACH, TAA
- Chipset: ASMedia - ASM1092R
- Data transfer rate (max): 6 Gbit/s
- S.M.A.R.T. support: Yes
- TRIM support: Yes
- RAID levels: 0, 1, BIG, JBOD
- Plug and Play: Yes
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 15 - 90%
- Compliance certificates: RoHS
- Width: 70 mm
- Depth: 100 mm
- Height: 7 mm
- Weight: 41 g
- Mounting brackets included: Yes
- Screws included: Yes
- Quick installation guide: Yes
- Package width: 172 mm
- Package depth: 142 mm
+ 3 more — see the Specifications tab.
Ex GST
NZ$83.99
