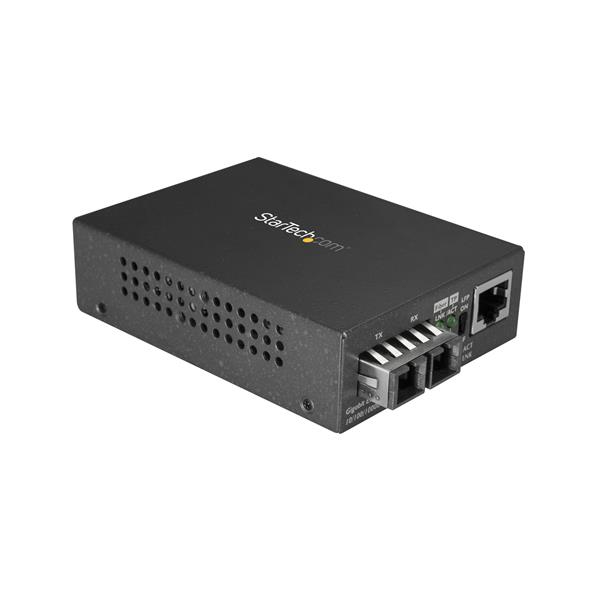

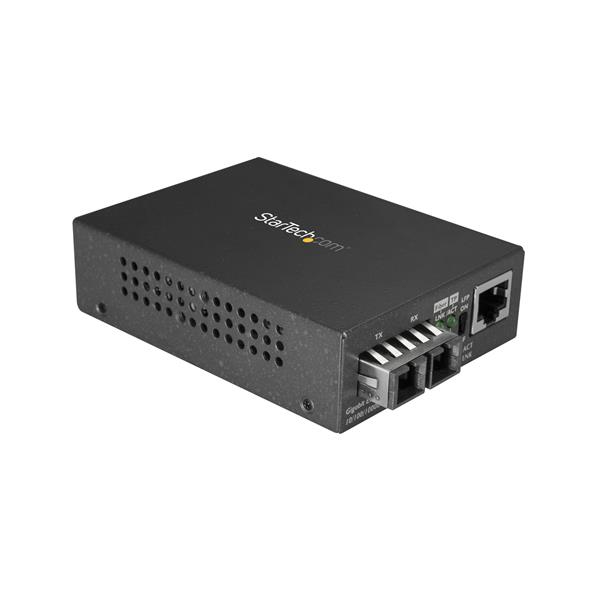

StarTech.com Media Converter - Fiber 1000Base-SX MM
Fiber Media Converter - 1000Base-SX - 550m - Multi Mode - Fiber to Ethernet Converter - Fiber to Copper Converter
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 4127080
- MPN: MCMGBSCMM055
StarTech.com Multi-Mode (MM) SC Fiber Media Converter for…
StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 850nm, 550m - TAA, 1000 Mbit/s, 100Base-TX, 1000Base-T, 1000Base-SX, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s
Click or hover over image to enlarge
Input voltage
100 - 240 V
Input current
0.5 A
Output voltage
5 V
Output current
2.6 A
Power consumption (typical)
5 W
External power adapter
Yes
Power plug type
Type N
Maximum data transfer rate
1000 Mbit/s
Comsys Pacific Price
Save $34.32 off RRP
In Stock
4 payments of $41.11Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com Media Converter - Fiber 1000Base-SX MM
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
Key features
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 100Base-TX, 1000Base-T
- Converter output interface: 1000Base-SX
- Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Store-and-forward: Yes
- Duplex system: Full
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Wavelength-division multiplexing (WDM): No
- Fiber mode structure: Multi-mode
- Mean time between failures (MTBF): 50000 h
- Internal: No
- LED indicators: Activity, Link, Power
- Product colour: Black
- Housing material: Steel
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
- Input voltage: 100 - 240 V
- Input current: 0.5 A
- Output voltage: 5 V
- Output current: 2.6 A
- Power consumption (typical): 5 W
+ 22 more — see the Specifications tab.
Ex GST
$142.99
