StarTech.com mSATA to SATA HDD/SSD Adapter Converter
mSATA to SATA HDD/SSD Adapter Mini SATA to SATA ConverterCard - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card - mSATA port to SATA port Adapter Converter Card
- Brand: StarTech.com
- Category: Computer Cables & Adapters
- SKU: 2552326
- MPN: MSAT2SAT3
StarTech.com SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA…
StarTech.com SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA Drives, mSATA, SATA, Green, 6 Gbit/s, 5 - 50 °C, -25 - 70 °C
Click or hover over image to enlarge
Internal
Yes
Product colour
Green
Data transfer rate (max)
6 Gbit/s
Harmonized System (HS) code
84733020
Products per master (outer) case
100 pc(s)
Master (outer) case width
295 mm
Master (outer) case length
690 mm
Master (outer) case height
215 mm
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com mSATA to SATA HDD/SSD Adapter Converter

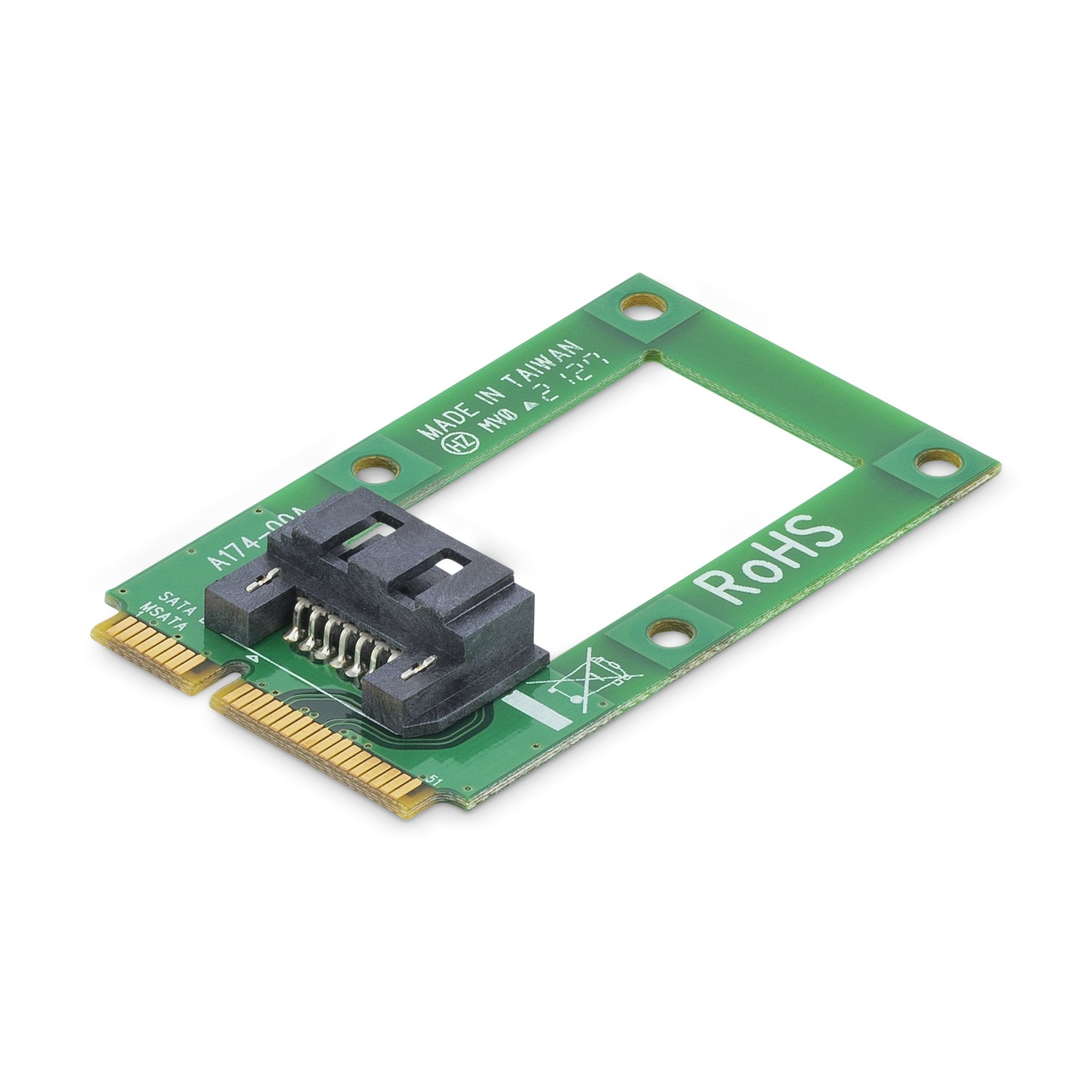

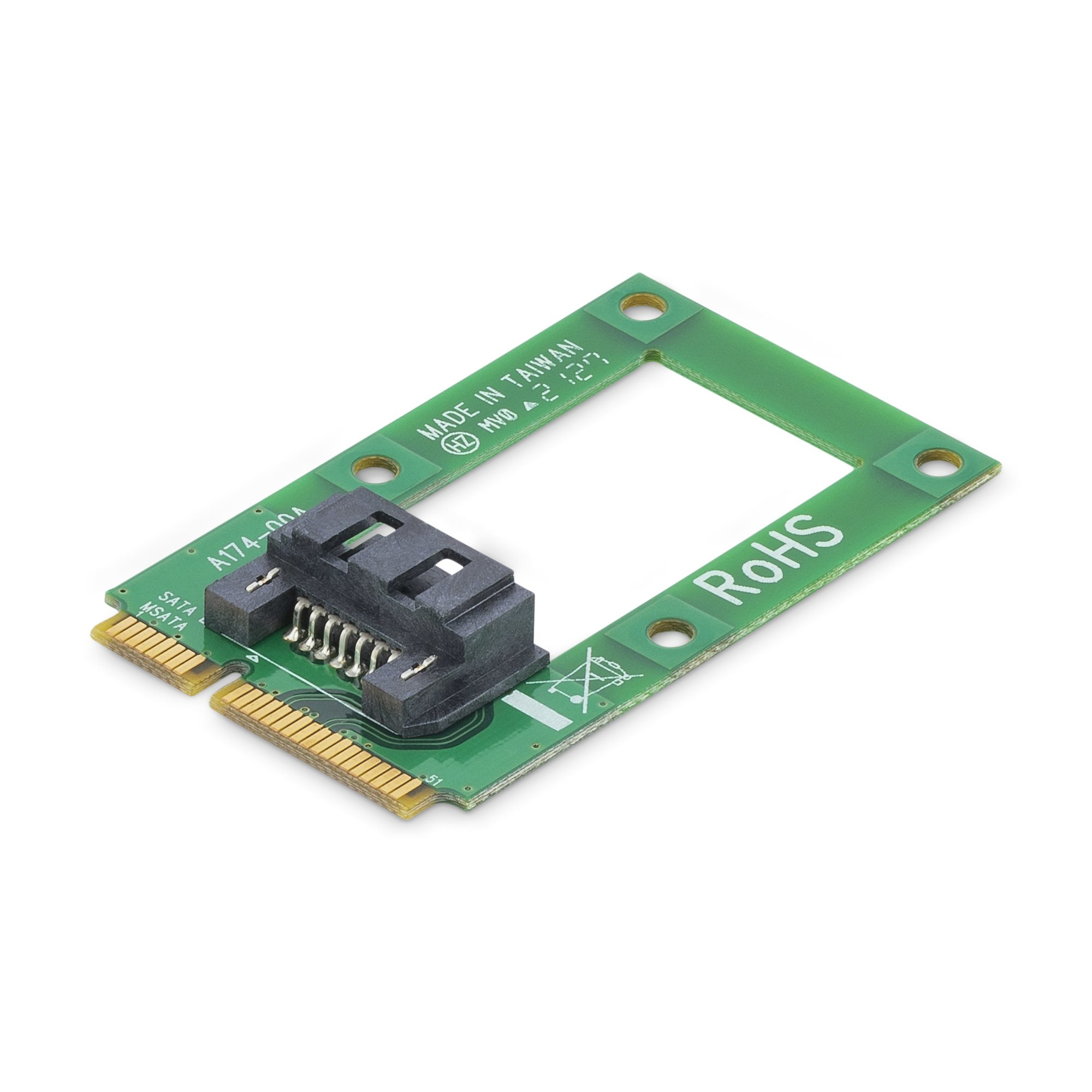

The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Host interface: mSATA
- Output interface: SATA
- SATA revision: 3.0
- Internal: Yes
- Product colour: Green
- Data transfer rate (max): 6 Gbit/s
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 15 - 90%
- Compliance certificates: CE, RoHS
- Width: 30 mm
- Depth: 51 mm
- Height: 8 mm
- Weight: 10 g
- Screws included: Yes
- User guide: Yes
- Package width: 125 mm
- Package depth: 225 mm
- Package height: 10 mm
- Package weight: 15 g
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 100 pc(s)
- Master (outer) case width: 295 mm
- Master (outer) case length: 690 mm
- Master (outer) case height: 215 mm
