StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to…
StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension, RJ-45, RJ-45, Silver
Click or hover over image to enlarge
Part #: 6212394
Product colour
Silver
Housing material
Acrylonitrile butadiene styrene (ABS), Metal
Data transfer rate
10 Gbit/s
Compliance certificates
CE
Certification
TIA/EIA-T568B
Package width
125 mm
Package depth
90 mm
Package height
2 mm
Comsys Pacific Price
Save NZ$3.72 off RRP
In Stock
29 units available
Four payments of NZ$7.47 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

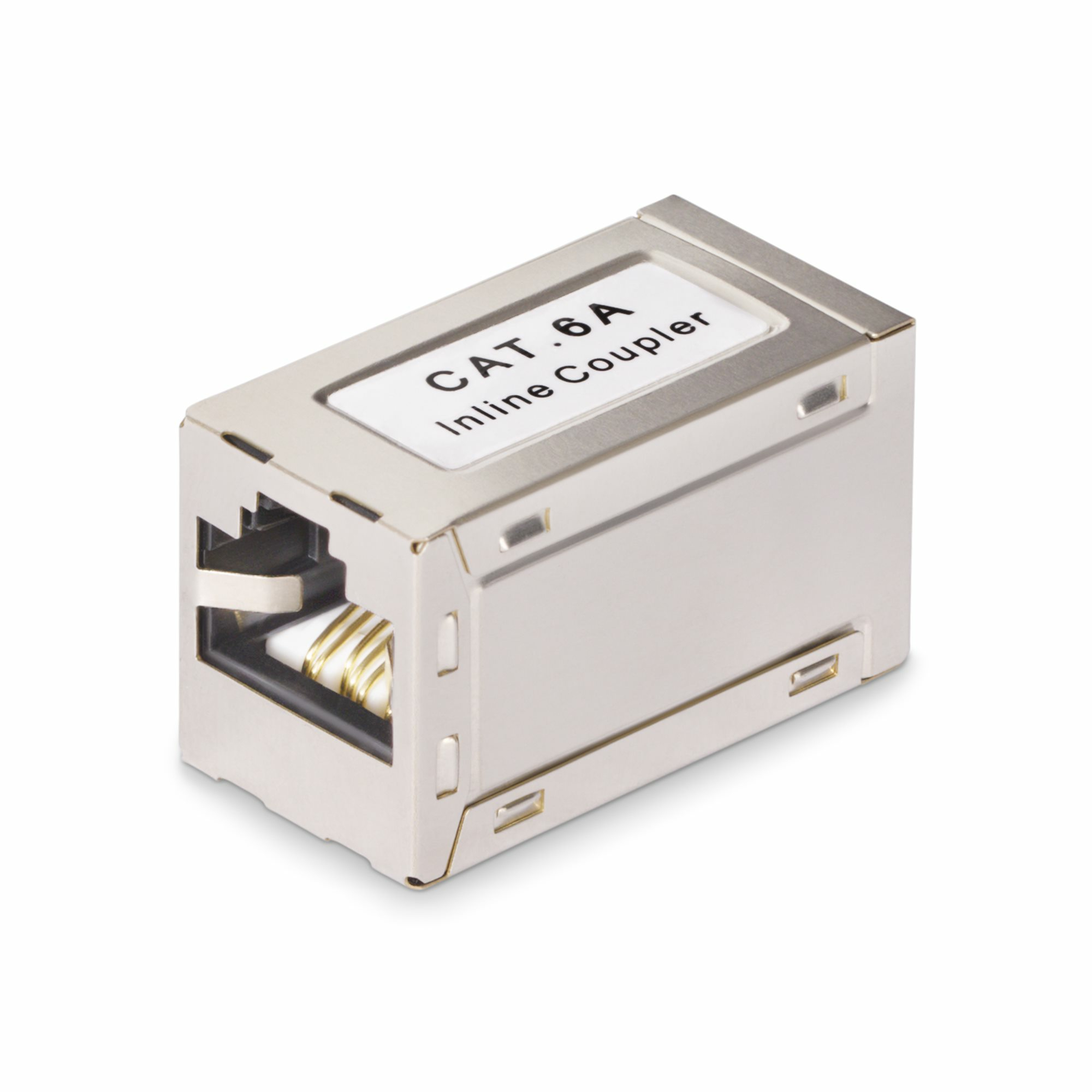

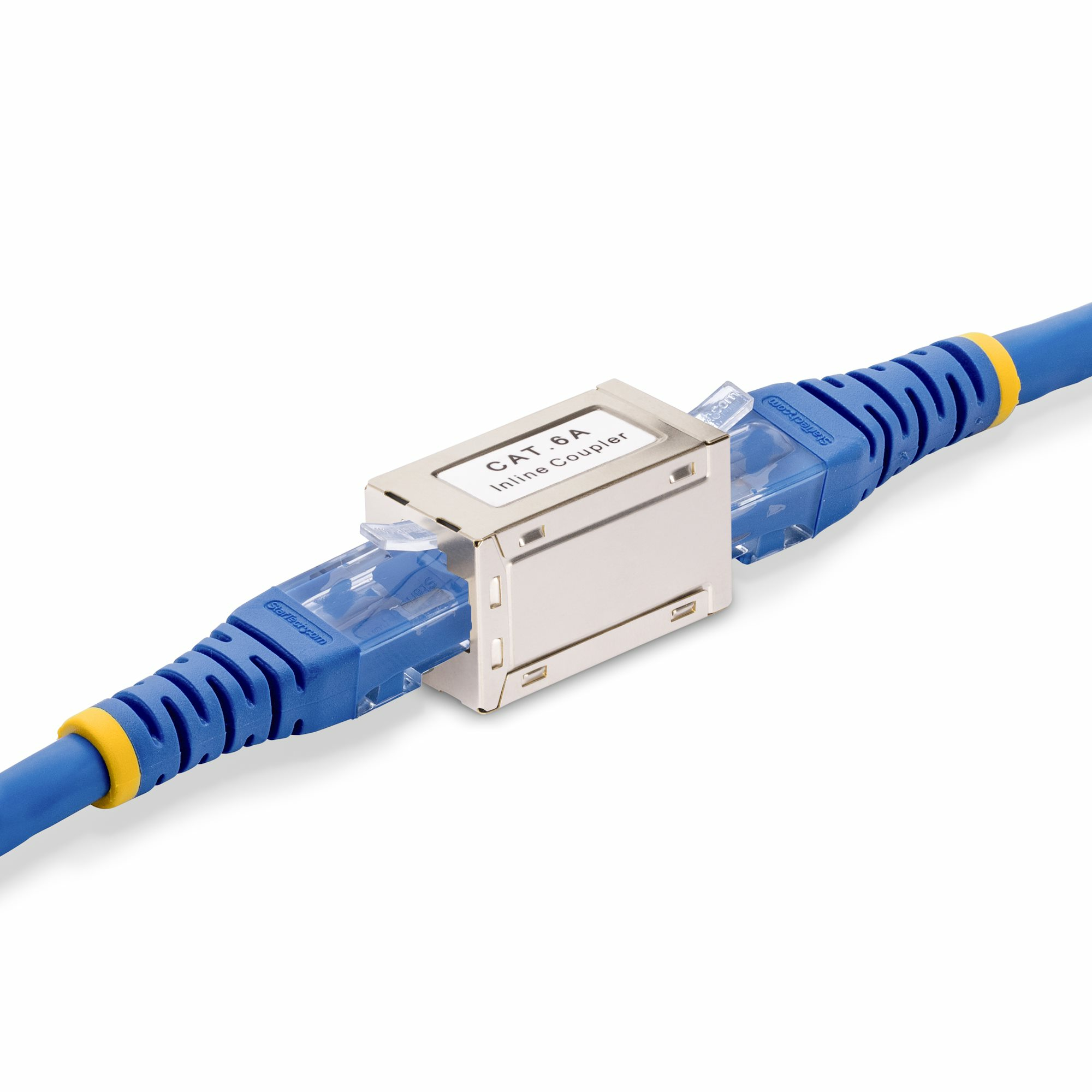

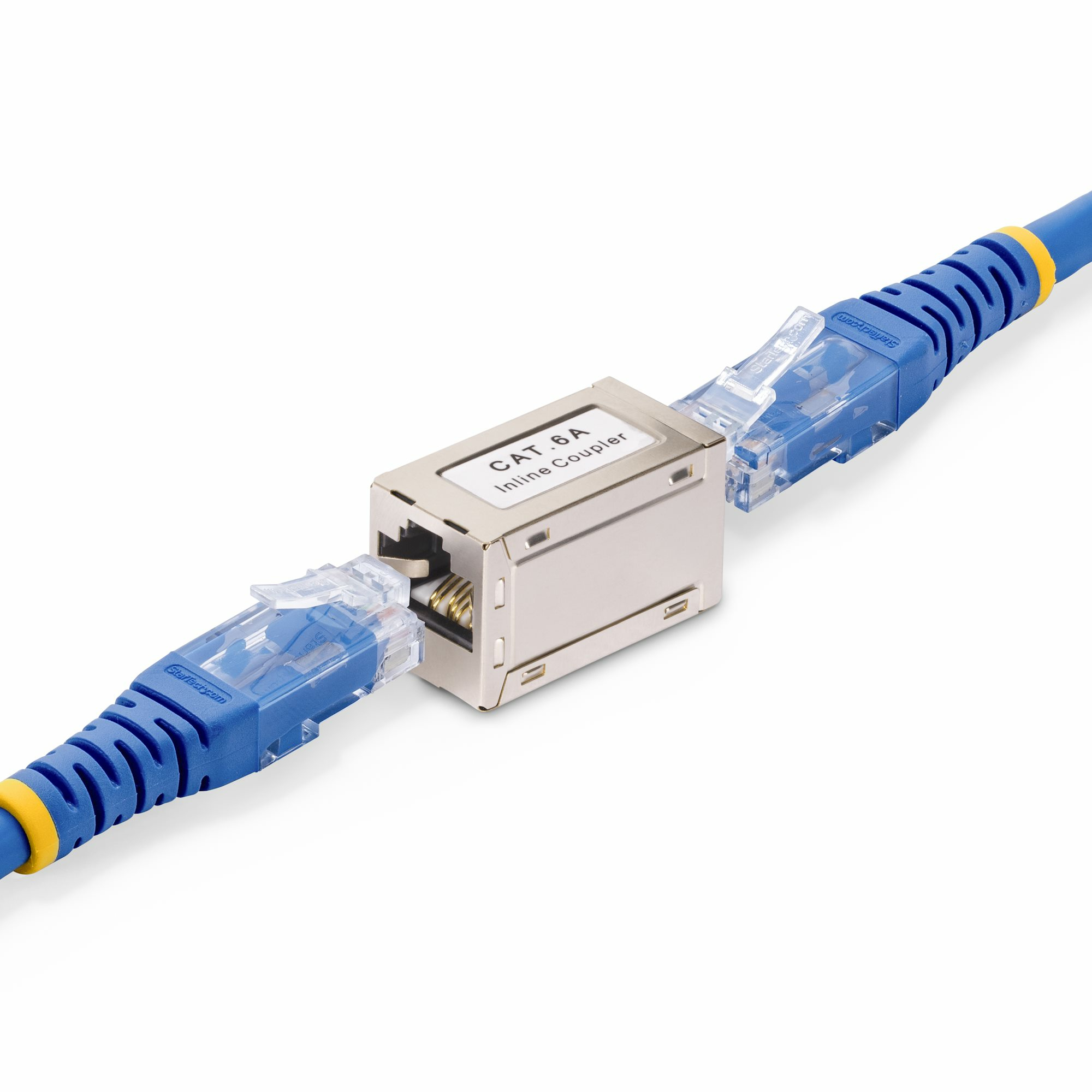

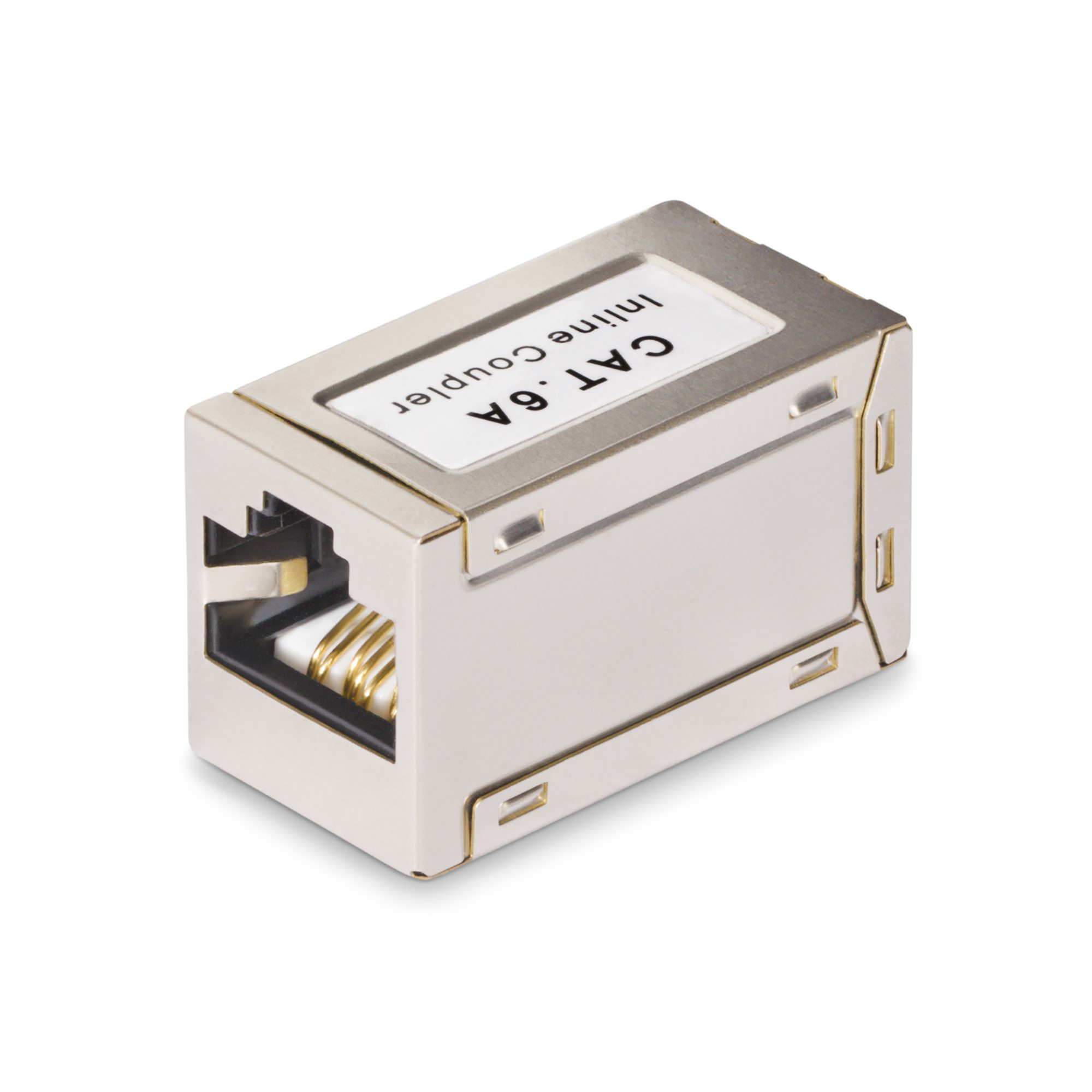

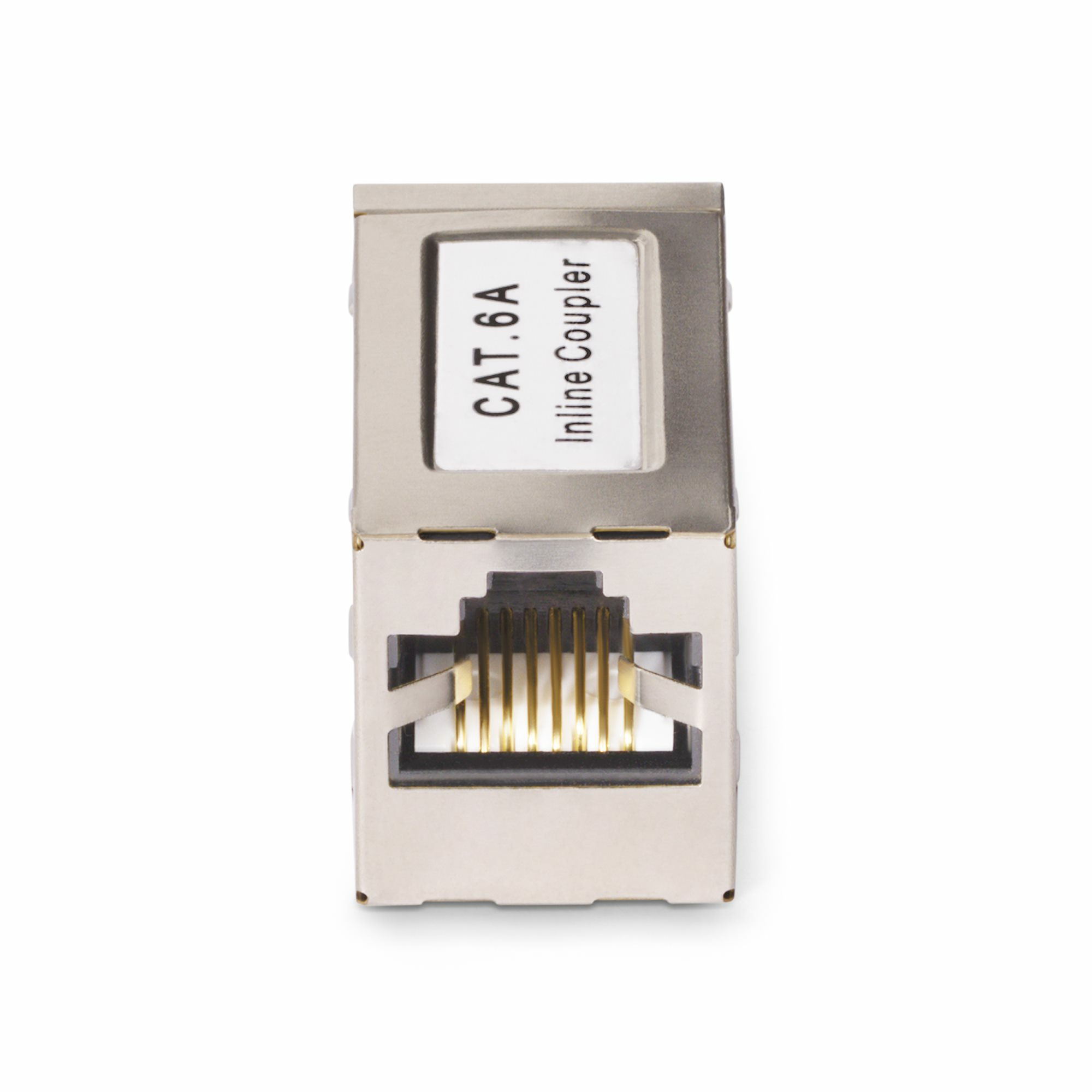

StarTech.com Shielded RJ45 Coupler Cat6a Coupler F/F
Connect two Cat 6a cables to extend a network connection, using this Shielded RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Wide Compatibility
The Cat6a Coupler supports up to 10Gbps and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T. The Shielded Inline RJ45 coupler facilitates Power-over-Ethernet (PoE) to power network peripheral devices.
Durable Construction
The Shielded RJ45 Cat6a Coupler features a durable metal outer shell with ABS inner housing to enhance EMI protection, and gold-plated phosphor bronze contacts for dependable, long-lasting performance and reliability.
The StarTech.com Advantage
Key features
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Female
- Connector 2 gender: Female
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
- Product colour: Silver
- Housing material: Acrylonitrile butadiene styrene (ABS), Metal
- Data transfer rate: 10 Gbit/s
- Operating temperature (T-T): -20 - 65 °C
- Storage temperature (T-T): -25 - 75 °C
- Relative humidity: 30 - 70%
- Compliance certificates: CE
- Certification: TIA/EIA-T568B
- Sustainability compliance: Yes
- Width: 16 mm
- Depth: 31 mm
- Height: 20 mm
- Package width: 125 mm
- Package depth: 90 mm
- Package height: 2 mm
- Package weight: 10 g
Ex GST
NZ$25.99
