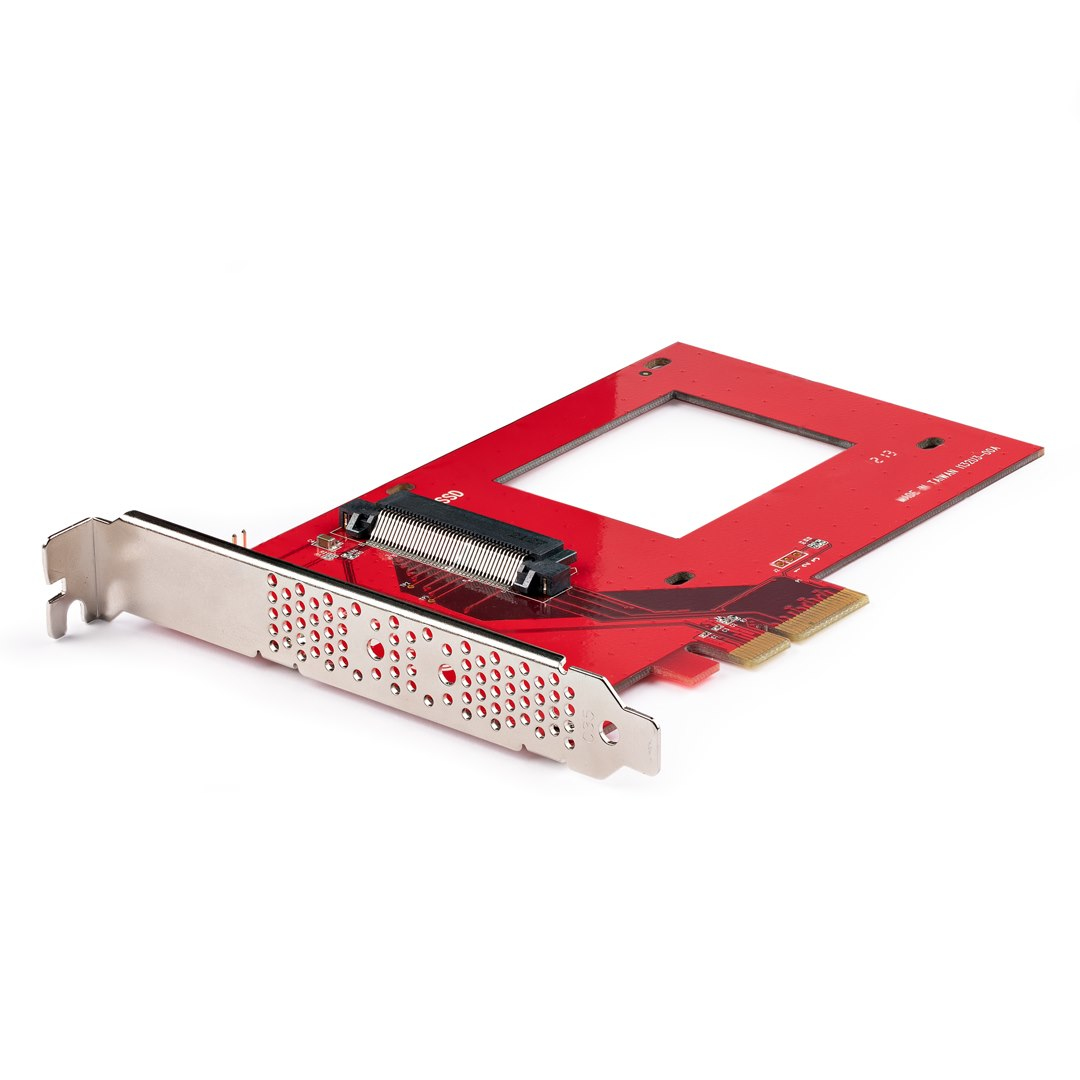

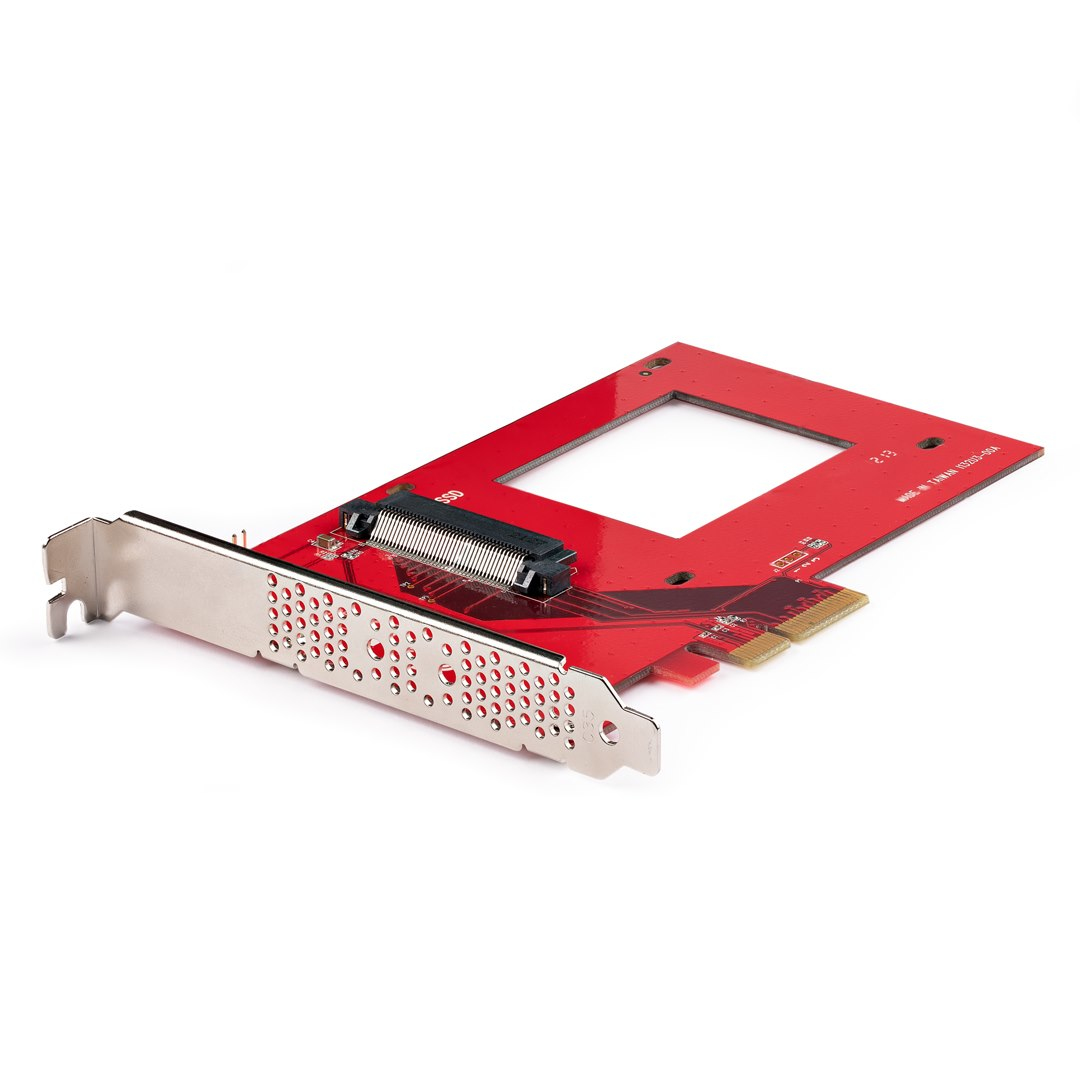

StarTech.com U.3 to PCIe Adapter Card For U.3 SSDs
U.3 TO PCIE ADAPTER CARD - PCIE 4.0 X4 ADAPTER FOR 2.5IN U.3 NVME SSDS - SFF-TA-1001 PCI EXPRESS ADD-IN CARD - TAA COMPLIANT (PEX4SFF8639U3)
- Brand: StarTech.com
- Category: Solid State Drives (SSD)
- SKU: 5884962
- MPN: PEX4SFF8639U3
StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5"…
StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent, PCIe, U.3, Red, Activity, Power, 21693912 h, 0 - 60 °C
Click or hover over image to enlarge
Internal
Yes
Product colour
Red
LED indicators
Activity, Power
Mean time between failures (MTBF)
21693912 h
Hot-swap
No
Plug and Play
Yes
Products per master (outer) case
60 pc(s)
Master (outer) case width
460 mm
Comsys Pacific Price
Save $21.60 off RRP
Available to Order
4 payments of $24.44Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com U.3 to PCIe Adapter Card For U.3 SSDs
Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.
Add U.3 Capabilities to a Desktop or Server
Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.
Universal Compatibility
The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.
Optimal Airflow and Reliable Performance
The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: U.3
- Internal: Yes
- Product colour: Red
- LED indicators: Activity, Power
- Mean time between failures (MTBF): 21693912 h
- Hot-swap: No
- Plug and Play: Yes
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -40 - 80 °C
- Operating relative humidity (H-H): 20 - 80%
- Supported storage drive heights: 5,7,9.5,12.5,15 mm
- Width: 90 mm
- Depth: 154 mm
- Height: 1.5 mm
- Weight: 62 g
- Screws included: Yes
- Quick installation guide: Yes
- Package width: 215 mm
- Package depth: 155 mm
- Package height: 30 mm
- Package weight: 130 g
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 460 mm
- Master (outer) case length: 340 mm
- Master (outer) case height: 490 mm
Ex GST
$84.99
