StarTech.com VGA VIDEO EXTENDER OVER CAT5
VGA VIDEO EXTENDER OVER CAT5 (ST121 SERIES)
- Brand: StarTech.com
- Category: Audio & Video
- SKU: 2977638
- MPN: ST121UTP

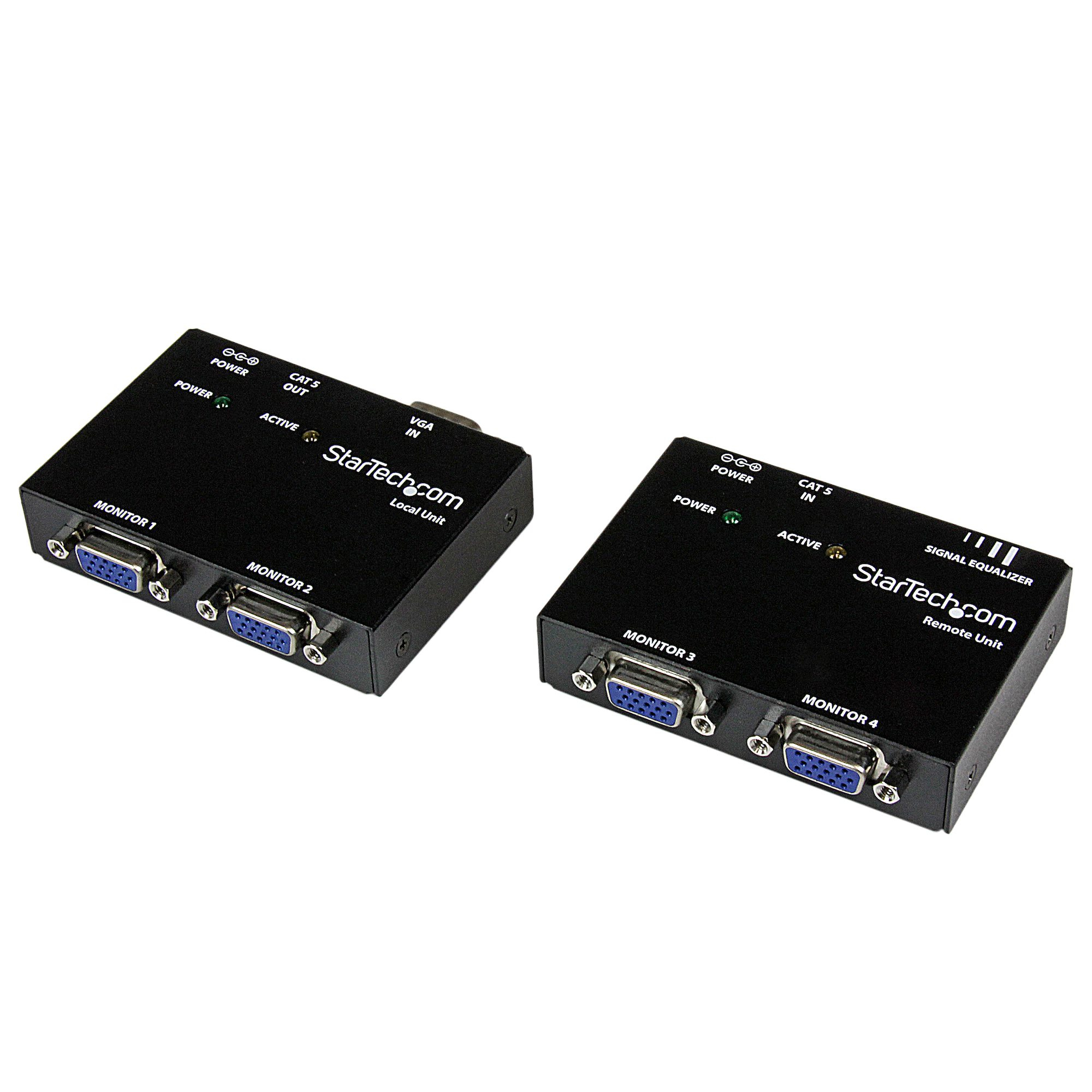

StarTech.com VGA Video Extender over Cat5 (ST121 Series)
StarTech.com VGA Video Extender over Cat5 (ST121 Series), 1440 x 900 pixels, AV transmitter & receiver, 150 m, Wired, Black
Click or hover over image to enlarge
Operating voltage
9 V
Output current
0.6 A
Power consumption (typical)
5.4 W
Power plug type
Type M
Type
AV transmitter & receiver
Maximum resolution
1440 x 900 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
150 m
Comsys Pacific Price
Save $62.02 off RRP
In Stock
4 payments of $64.97Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com VGA VIDEO EXTENDER OVER CAT5
The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.
The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.
The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1440 x 900 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 150 m
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+)
- Material: Aluminium
- Rubber feet: Yes
- Product colour: Black
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- VGA (D-Sub) input ports: 1
- VGA (D-Sub) output ports: 4
- Operating voltage: 9 V
- Output current: 0.6 A
- Power consumption (typical): 5.4 W
- Power plug type: Type M
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 83 mm
- Depth: 60 mm
- Height: 20 mm
- Weight: 335 g
- Package width: 91 mm
- Package depth: 240 mm
- Package height: 186 mm
- Package weight: 800 g
- AC adapter included: Yes
- Manual: Yes
+ 3 more — see the Specifications tab.
Ex GST
$225.99
