ALLIED TELESIS 24X1G-T 16X1G-T & 8X5G-T POE++ [NO PSU]
24 port 10/100/1000-T PoE+ 16 port 10/100/1000-T PoE++ 8 port 100M/1G/2.5G/5G-T PoE++ stackable L3 switch with 4x SFP+ Ports and dual hotswap PSU bays. PSU ordered separately
- Brand: ALLIED TELESIS
- Category: Switches
- SKU: 5269681
- MPN: AT-X530DP-52GHXM-B01

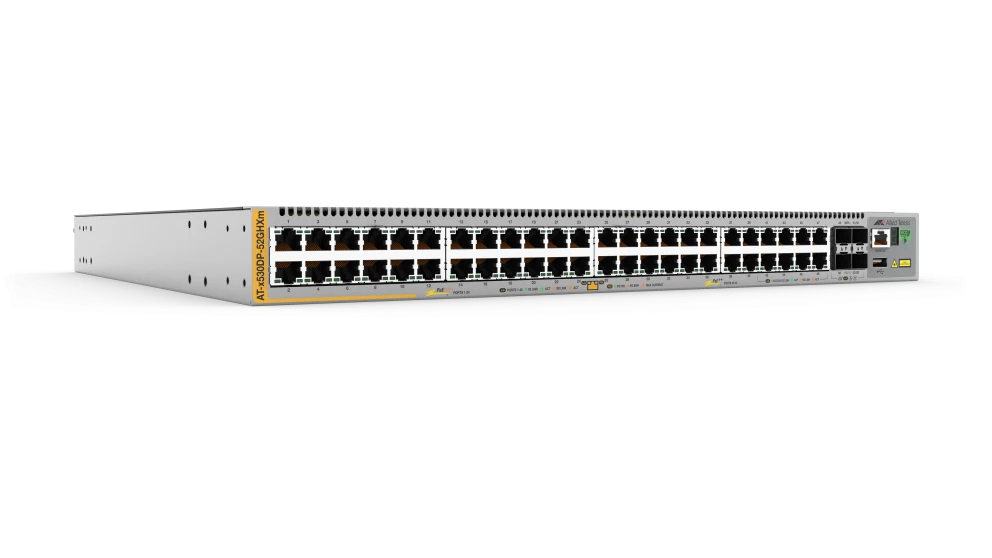

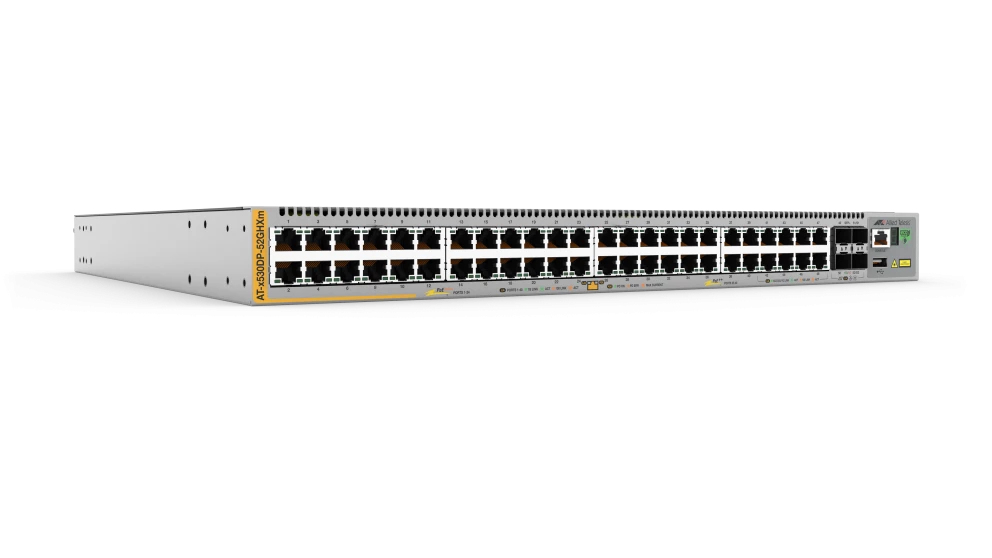

Allied Telesis AT-X530DP-52GHXM-B01 network switch Managed L3 5G…
Allied Telesis AT-X530DP-52GHXM-B01, Managed, L3, 5G Ethernet (100/1000/5000), Power over Ethernet (PoE), Rack mounting
Click or hover over image to enlarge
Power source
AC/DC/PoE
Power supply included
Yes
Power consumption (max)
170 W
Rack mounting
Yes
Stackable
Yes
Product colour
Grey
Networking standards
IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS 24X1G-T 16X1G-T & 8X5G-T POE++ [NO PSU]
Key features
- Switch type: Managed
- Switch layer: L3
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: 5G Ethernet (100/1000/5000)
- SFP+ module slots quantity: 4
- Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: Yes
- Link aggregation: Yes
- VLAN support: Yes
- Number of VLANs: 4094
- Switching capacity: 240 Gbit/s
- Forwarding rate: 179 Mpps
- MAC address table: 16000 entries
- Packet buffer memory: 4.5 MB
- Authentication type: AAA, RADIUS
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
- Memory type: DDR3-SDRAM
- Internal memory: 16 MB
- Flash memory: 256 MB
- Noise level: 63 dB
- Power source: AC/DC/PoE
- Power supply included: Yes
- Power consumption (max): 170 W
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 48
- Power over Ethernet 4PPoE (PoE++) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 1930 W
- Operating temperature (T-T): 0 - 65 °C
+ 13 more — see the Specifications tab.
