ALLIED TELESIS 8PORT POE L2+ SWITCH 2XSFP 1YR NCP
8PORT POE L2+ SWITCH 2XSFP 1YR NCP
- Brand: ALLIED TELESIS
- Category: Switches
- SKU: 5885146
- MPN: AT-X230-10GP-40

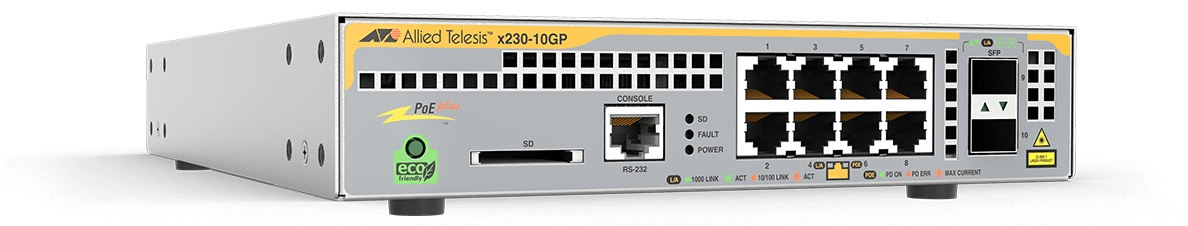

Allied Telesis x230-10GP Managed L3 Gigabit Ethernet (10/100/1000)…
Allied Telesis x230-10GP, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Click or hover over image to enlarge
Power source
AC
Power supply included
Yes
AC input voltage
90 - 260 V
AC input frequency
45/63 Hz
Power consumption (typical)
24 W
LED indicators
Yes
Networking standards
IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available On Order
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS 8PORT POE L2+ SWITCH 2XSFP 1YR NCP
Maximum network performance for even the most demanding applications, the x230 family offers an impressive set of features in a compact design, ready for flexible deployment.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Installed SFP modules quantity: 2
- Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
- Number of VLANs: 2048
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.9 Mpps
- MAC address table: 16000 entries
- Latency (1 Gbps): 3.4 µs
- Packet buffer memory: 1.5 MB
- DHCP features: DHCP client, DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
+ 30 more — see the Specifications tab.
