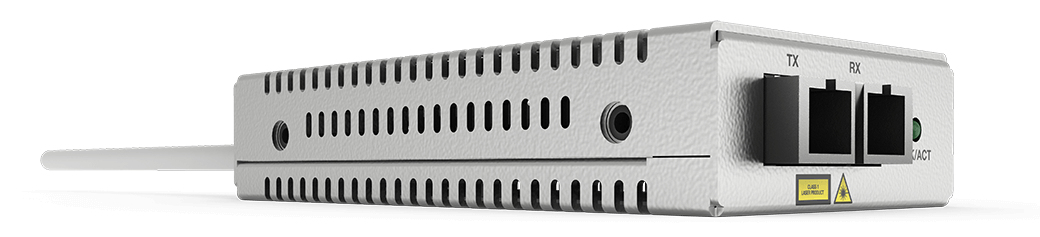

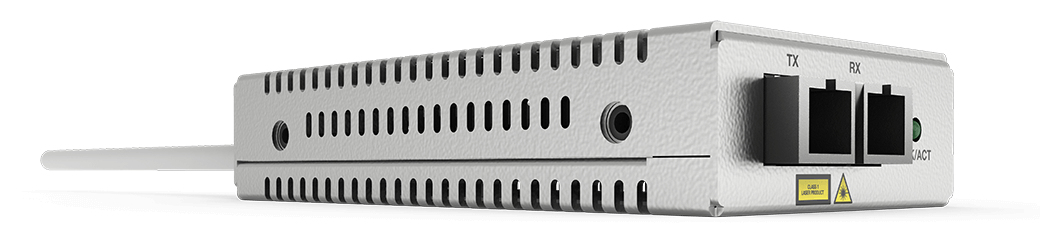

ALLIED TELESIS USB MEDIA CONVERTER USB 3.1
USB Media Converter USB 3.1 TypeC to 100FX/SC 990-005478-901
- Brand: ALLIED TELESIS
- Category: Network Accessories
- SKU: 3717011
- MPN: AT-UMC200/SC-901
Allied Telesis UMC200/SC network media converter 100 Mbit/s 1310 nm…
Allied Telesis UMC200/SC, 100 Mbit/s, 100Base-TX, 100Base-SX, IEEE 802.1Q, Fast Ethernet, 10,100 Mbit/s
Click or hover over image to enlarge
Input voltage
5 V
Maximum data transfer rate
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Fiber ethernet cabling technology
100BASE-SX
Comsys Pacific Price
Save $165.01 off RRP
Available to Order
4 payments of $134.55Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS USB MEDIA CONVERTER USB 3.1
The Allied Telesis UMC2000/SC Gigabit mini media converter is small and flexible, with a multi-mode SC fiber connector to convert USB (-A or -C) to 1000SX/SC. It is also TAA compliant.
Key features
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 100Base-TX
- Converter output interface: 100Base-SX
- Networking standards: IEEE 802.1Q
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10,100 Mbit/s
- Fiber ethernet cabling technology: 100BASE-SX
- Data transfer rate: 100 Mbit/s
- Jumbo frames support: Yes
- VLAN support: Yes
- Supported network protocols: Pv4 IP/ TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Fiber mode structure: Multi-mode
- Tx power (min): -20 dBmW
- Tx power (max): 14 dBmW
- Rx power (min): 32 dBmW
- Internal: No
- LED indicators: Activity, Link
- Product colour: Silver
- Connectivity technology: Wired
- Fiber optic connector: SC
- Input voltage: 5 V
- Width: 54.9 mm
- Depth: 101.6 mm
- Height: 21.8 mm
- Weight: 170 g
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
+ 4 more — see the Specifications tab.
