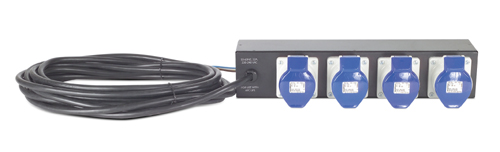

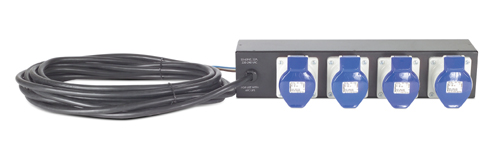

APC Rack PDU Extender. Basic. 2U. 32A. 230V.
Rack PDU Extender. Basic. 2U. 32A. 230V. (4) IEC 309-32
- Brand: APC
- Category: UPS Systems
- SKU: 1064503
- MPN: AP7586
APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power…
APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32, Basic, 2U, Horizontal, Black, 4 AC outlet(s), Hard Wire 3-wire
Click or hover over image to enlarge
Nominal input voltage
230 V
Nominal output voltage
230 V
Output voltage
230 V
Load capacity
7680 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Maximum power
7680 W
PDU types
Basic
Comsys Pacific Price
Save $258.01 off RRP
Available to Order
4 payments of $414.57Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC Rack PDU Extender. Basic. 2U. 32A. 230V.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
Key features
- PDU types: Basic
- Rack capacity: 2U
- Mounting: Horizontal
- Product colour: Black
- AC outlets quantity: 4 AC outlet(s)
- I/O ports: Hard Wire 3-wire (4) IEC 309
- Input connection type: Hard Wire 3-wire
- Output connections: (4) IEC 309
- Cable length: 8.53 m
- Nominal input voltage: 230 V
- Nominal output voltage: 230 V
- Output voltage: 230 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Maximum power: 7680 W
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 45%
- Storage relative humidity (H-H): 0 - 95%
- Width: 437 mm
- Depth: 89 mm
- Height: 89 mm
- Weight: 4.09 kg
- Package weight: 5 kg
- Package width: 521 mm
- Package depth: 521 mm
- Package height: 152 mm
Ex GST
$1,441.99
